INTELLINET NETWORKING 561792 5-PORT GIGABIT ETHERNET POE+ SWITCH
Mfg Part Number: 561792 , Item #: 4579997
, PO and Wire.
Save installation time and money with this 5-Port Gigabit Power over Ethernet Switch

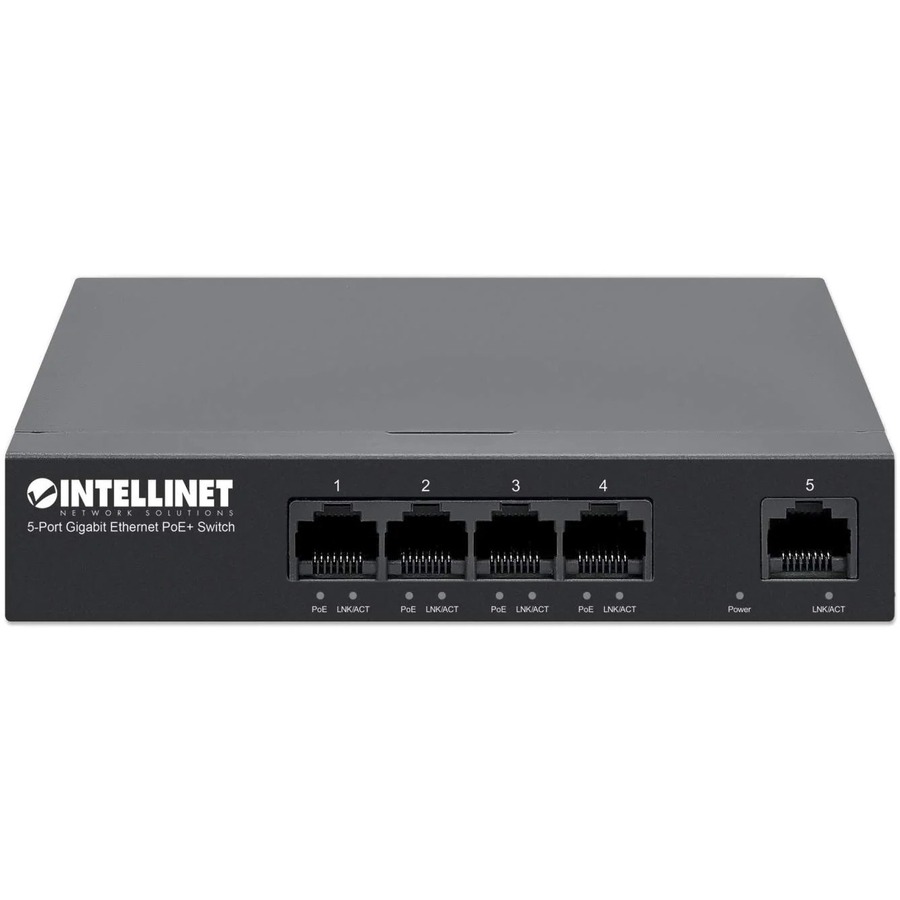

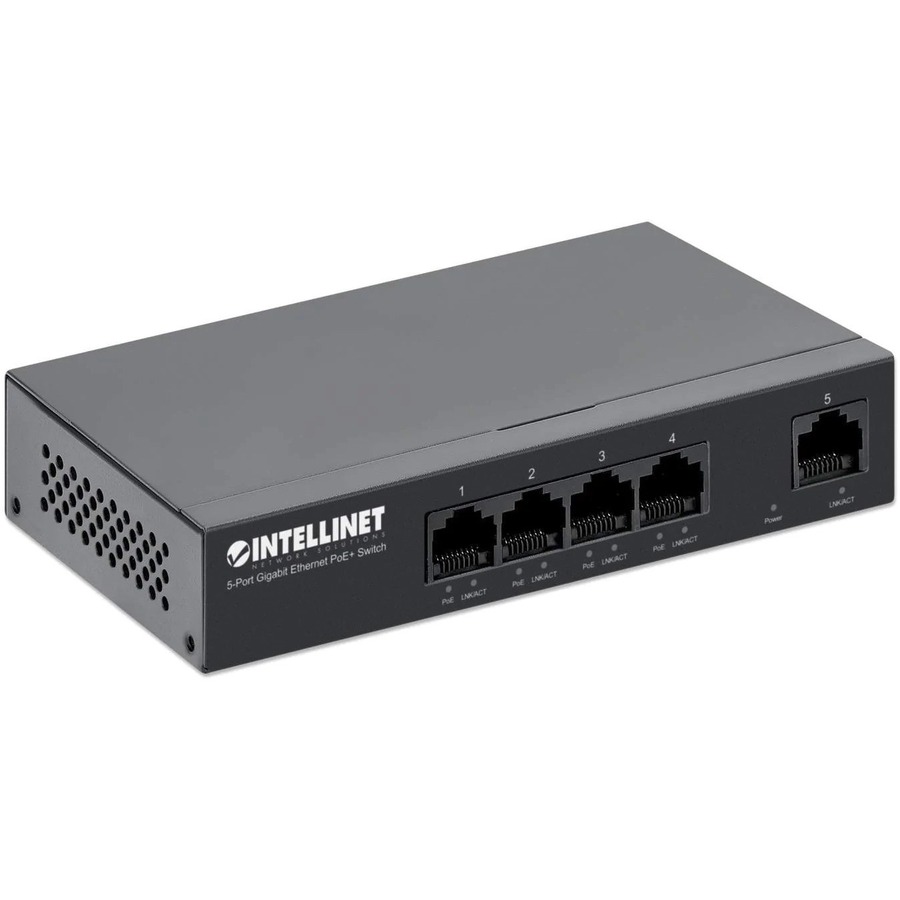

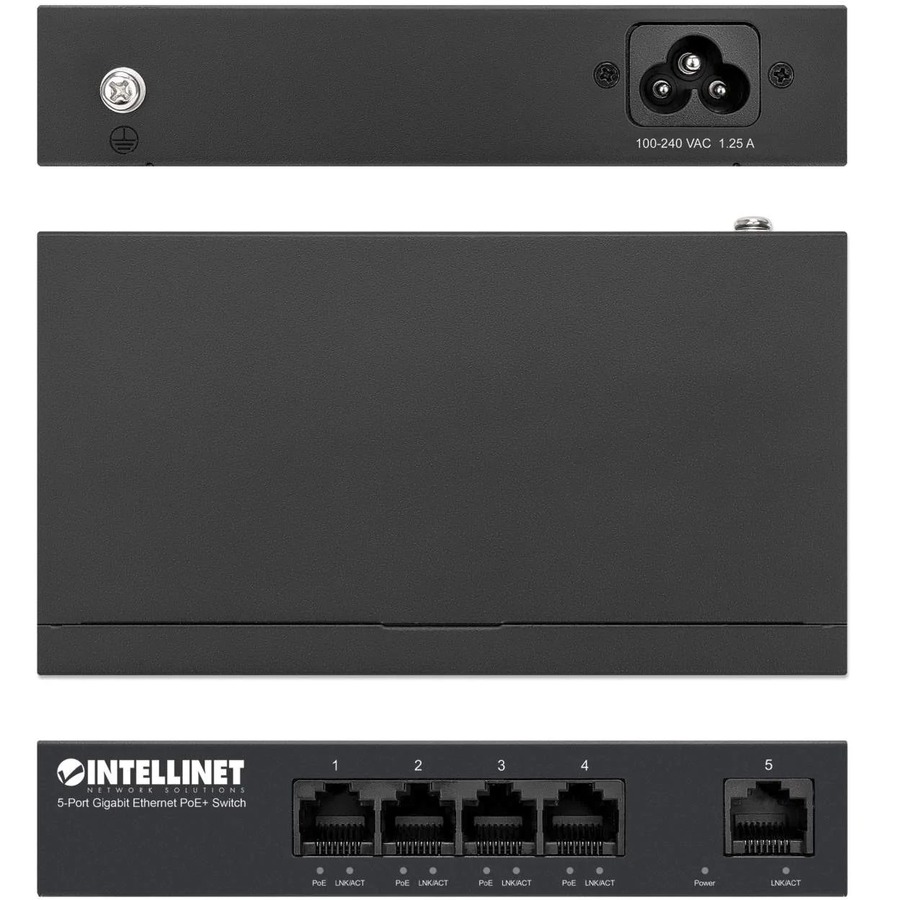

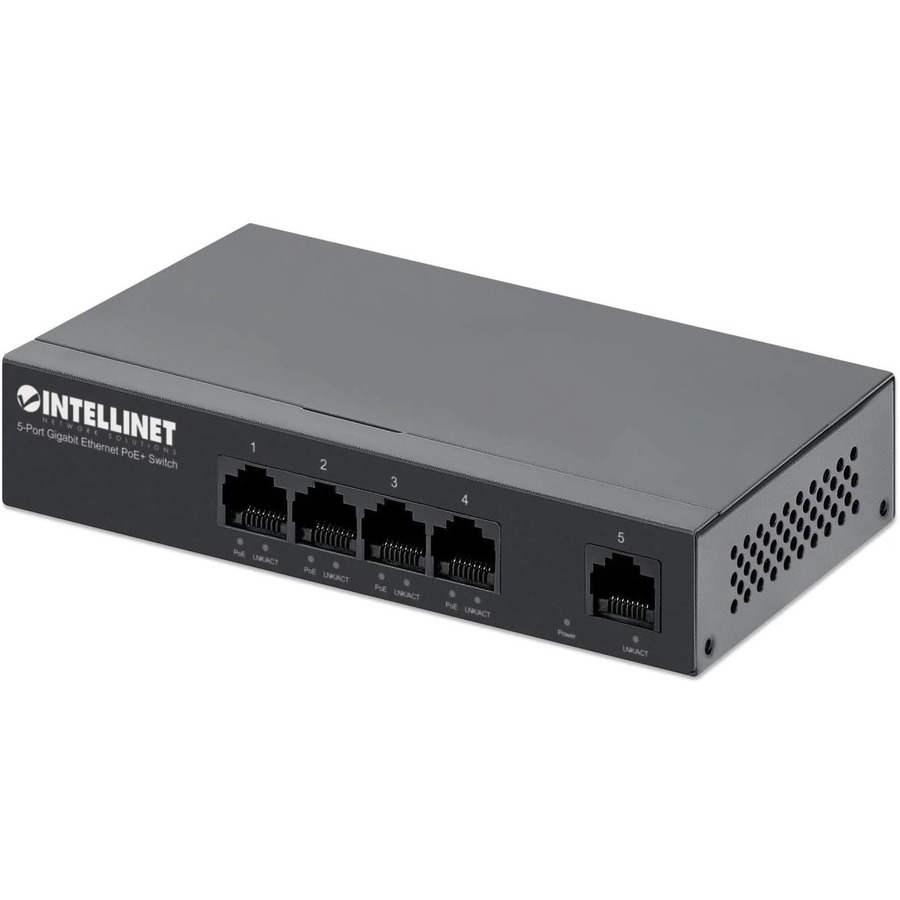

The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1000 Mbps.
Power over Ethernet IEEE 802.3at
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.
- Provides up to four PoE network devices with power and data
- PoE power budget of 40 watts
- 10 Gbps switch fabric / switching capacity
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- Compatible with IEEE 802.3at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
- Power output up to 30 watts per port
- Short-circuit, overload and high-voltage protection
- Saves time and money by delivering data and power via existing network cables
- Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
- Supports 2k MAC address entries with Auto-Learning and Auto-Aging
- Supports jumbo frames up to 9 kBytes
- Buffer memory of 125 kBytes
- ESD protection up to 8 kV (air) and 6 kV (contact)
- Mounting holes for wall mounting
- Store and forward switching architecture
- Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
- Fanless design ideal for silent operation
- Three-year warranty
| General Information | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 561792 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Intellinet |
| Product Name | 5-Port Gigabit Ethernet PoE+ Switch |
| Package Type | Retail |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE Network |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Network & Communication | |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.3u |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 40 W |

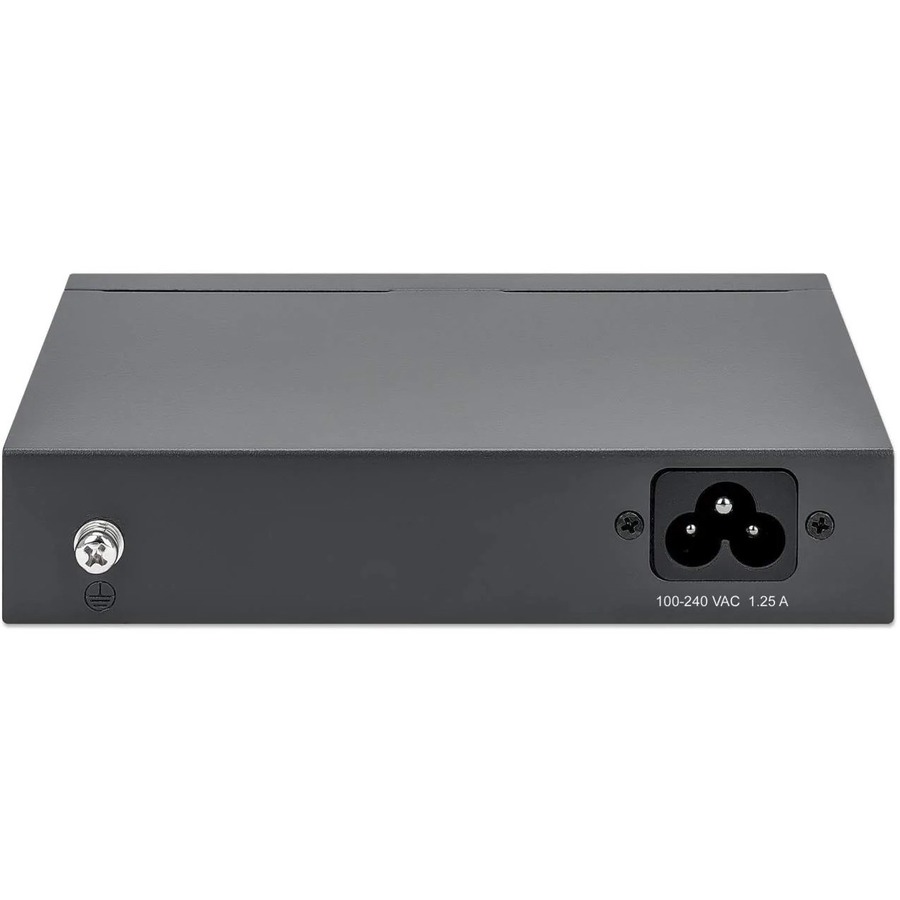

| Input Voltage | 120 V AC |
| Input Voltage | 220 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Wall Mountable |
| Form Factor | Desktop |
| Height | 1.1" |
| Width | 3" |
| Length | 5.5" |
| Weight (Approximate) | 12.13 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
