TYAN

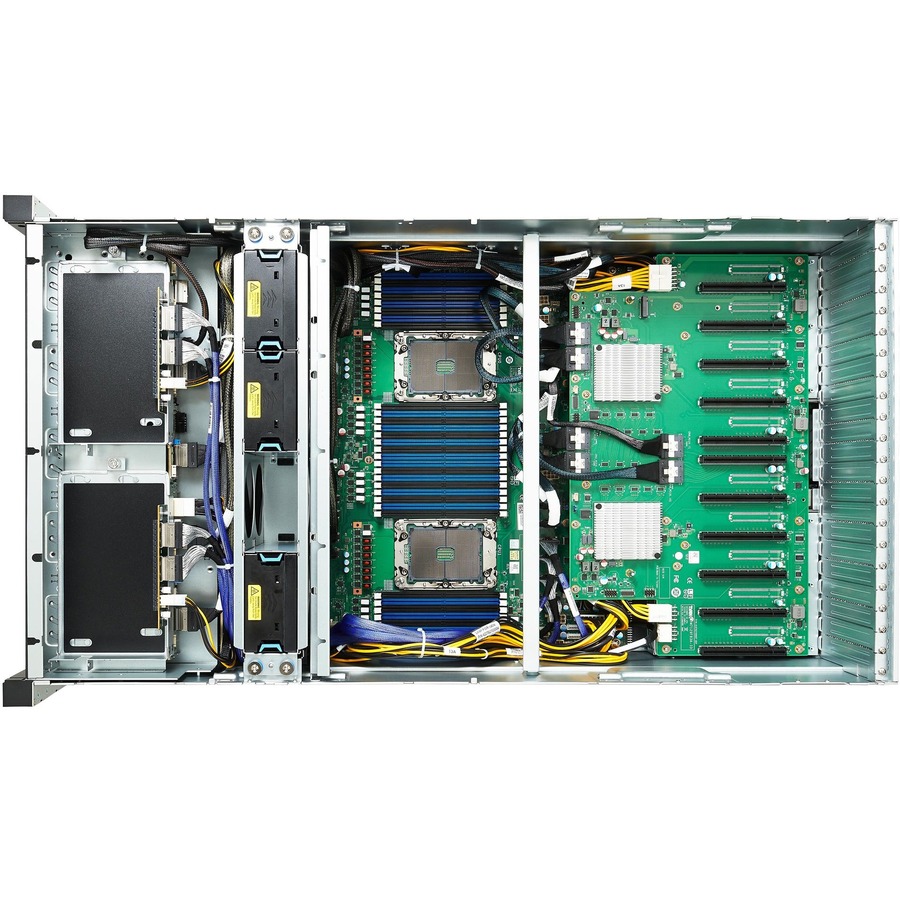

Tyan SV B7129F83AV8E4HR-N 4U2S Xeon LGA4189 DDR4 12x3.5 2.5 HS Retail

Mfg Part Number:  B7129F83AV8E4HR-N

Special Note: Jan 03, 2022
NCNR; If you do not have loading facility, please contact our CST for special handling service.

Image may not reflect the actual item.
Price: $9,409.61 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 09, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Tyan Computer Corp
Manufacturer Part Number B7129F83AV8E4HR-N
Manufacturer Website Address http://www.tyan.com
Brand Name Mitac
Product Line Thunder HX
Product Model FT83A-B7129
Product Name Thunder HX FT83A-B7129
Product Type Barebone System
Processor
Number of Processors Supported 2
Processor Socket Socket LGA-4189
Processor Supported Xeon Bronze
Processor Supported Xeon Gold
Processor Supported Xeon Silver
Processor Supported Xeon Platinum
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Memory
Maximum Memory Supported 8 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Total Number of Memory Slots 32
Storage
Supported Storage Drive Interfaces Serial ATA III
Controllers
Controller Type Serial ATA/600
Controller Type 6Gb/s SAS
RAID Supported Yes
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 12
Total Number of Expansion Slots 14
Number of PCI Express x16 Slots 14
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 4
Number of VGA Ports 1
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Maximum Power Supply Wattage 4800 W
Physical Characteristics
Form Factor Rack-mountable
Rack Height 4U
Height 6.9"
Width 17.3"
Depth 32.7"
Weight (Approximate) 86.64 lb
Miscellaneous
Package Contents
  • Thunder HX FT83A-B7129
  • Quick Installation Guide
  • 1 x AIR DUCT KIT, FOR CPU DIMM,NCT,FT83A-B7129
  • 2 x CPU CARRIER ASSYFoxconn WNMBC00-2NNK0-EH,GC68-B7126
  • 2 x 2U-PASSIVE-HEATSINK, w/screw
  • 2 x #6-32L5 screws for air baffle
  • 2 x SCREW,M3D5L4,SAE 101
  • 4 x A/C Power Cord, L=1800mm, US type
  • 4 x EU Power cord, AWG 16, 250V, 1.83 meter
  • 10 x AC/DC POWER CABLE,18 AWG,200 mm,2*4P(M),P4.2/ 2*4P(M),P4.2,UL1015,13A (For Tesla)
  • 10 AC/DC POWER CABLE;SBU,20 AWG,250mm,GPU PWR CABLE,2*4P(M), P4.2/2*3P+2*1P(M)*2pcs,P4.2 (For RTX)
  • 4 x Power Cord Clip
  • 1 x Rack mounting rail kit, max. to 36.4"
  • 1 x FT83A-B7129 Quick Installation Guide
  • 1 x China RoHS declaration flyer
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)
Warranty
Limited Warranty 3 Year
