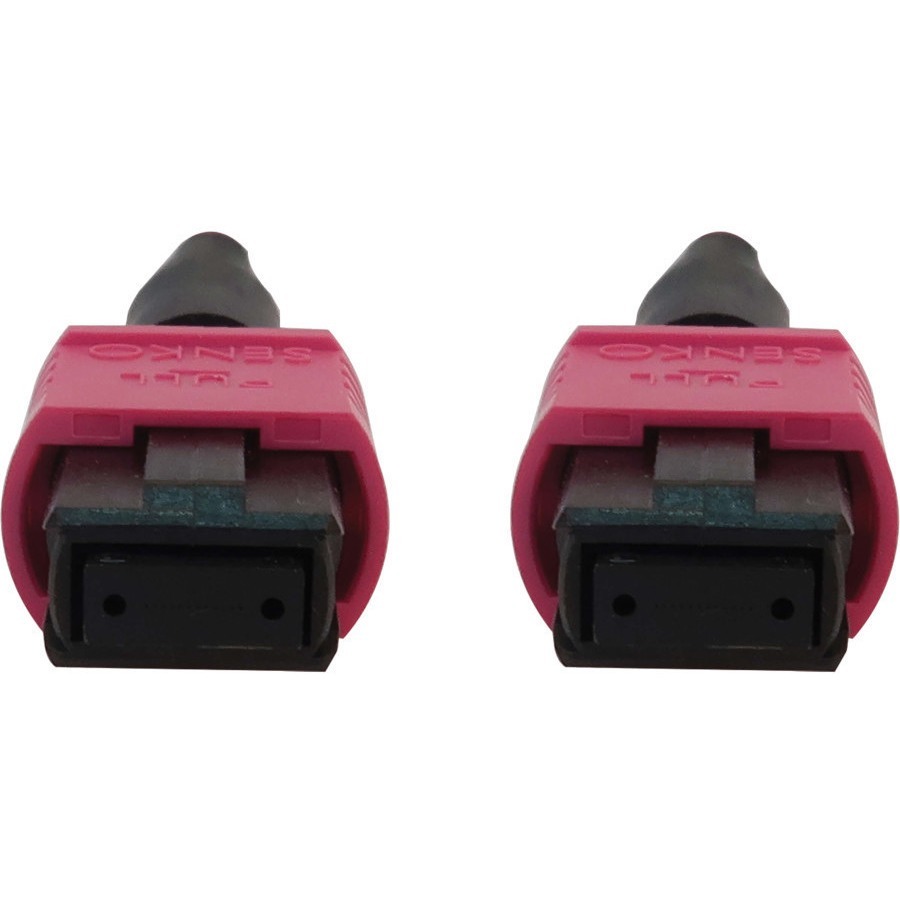

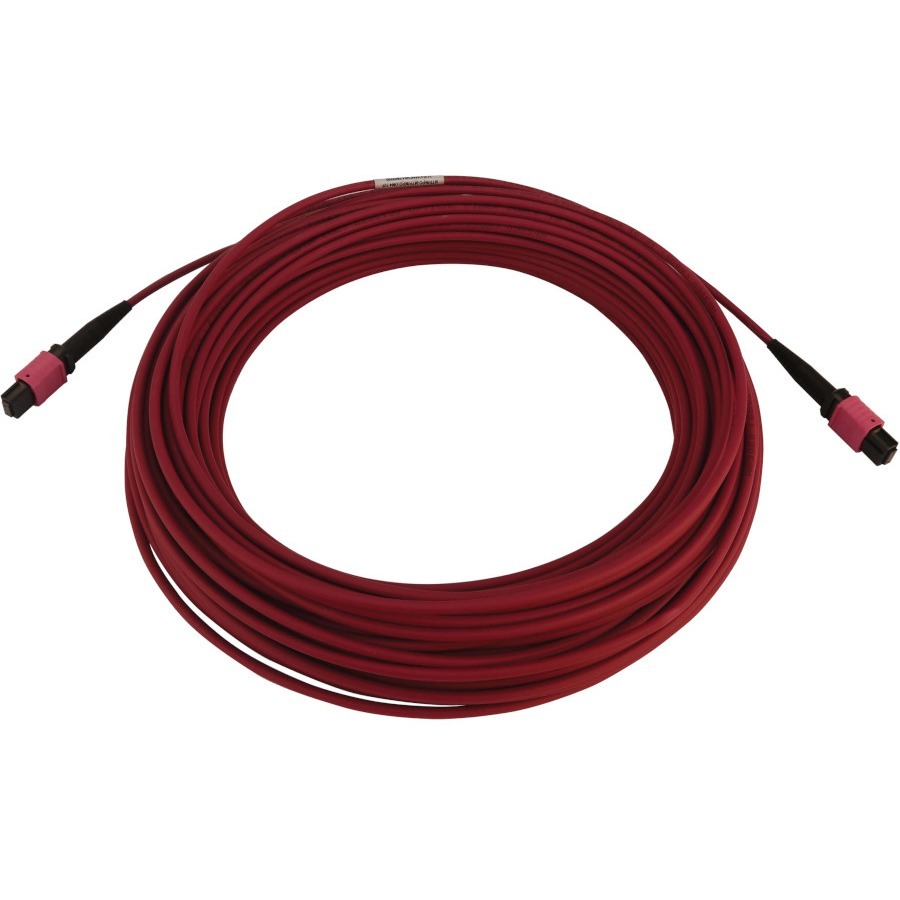

Eaton N845B-25M-12-MG FIBER CBL 100G OM4 12F MTP/MPO-PC 25M

Mfg Part Number:  N845B-25M-12-MG
Image may not reflect the actual item.
Price: $414.98
Quantity:
In Stock: 25
Last Updated: Aug 15, 2025
No Sales Tax except these states
, PO and Wire.

40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots allow easy one-handed installation and removal of the cable.

Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number N845B25M12MG
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Model N845B-25M-12-MG
Product Name N845B-25M-12-MG Fibre Optic Network Cable
Packaged Quantity 1 Piece
Product Type Network Cable
Technical Information
Cable Type Fiber Optic
Fiber Optic Mode Multi-mode
Fiber Optic Cable Core/Cladding Specification 50/125 µm
Cable Length 82.02 ft
Connector Type on First End MTP/MPO Network - Female
Connector on First End Details 1 x MTP/MPO Network - Female
Connector Type on Second End MTP/MPO Network - Female
Connector on Second End Details 1 x MTP/MPO Network - Female
Jacket Type OFNR
Jacket Type LSZH
Device Supported Patch Panel
Device Supported Switch
Device Supported Network Device
Data Transfer Rate 100 Gbit/s
Boot Type Slim
Features Bendable
Features Push-Pull Tab
Features Polished Connector (PC)
Features Stranded
Physical Characteristics
Jacket Color Magenta
Connector Color Magenta
Connector Color Black
Shipping Height 0.50"
Shipping Width 10.50"
Shipping Weight (Approximate) 7.68 oz
Miscellaneous
Environmentally Friendly Yes
Environmental Certification EcoLogo
Country of Origin China
Warranty
Limited Warranty Lifetime
