Eaton
Eaton N858B-10M-3X8MG FIBER CBL MMF 3X8F MTP/MPO-PC F/F 10M
Mfg Part Number: N858B-10M-3X8MG , Item #: 4577203
, PO and Wire.
40/100/400 GbE Cable Supports Higher Bandwidths Needed for High-Density Data
Networking
The N858B-10M-3X8MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.
Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

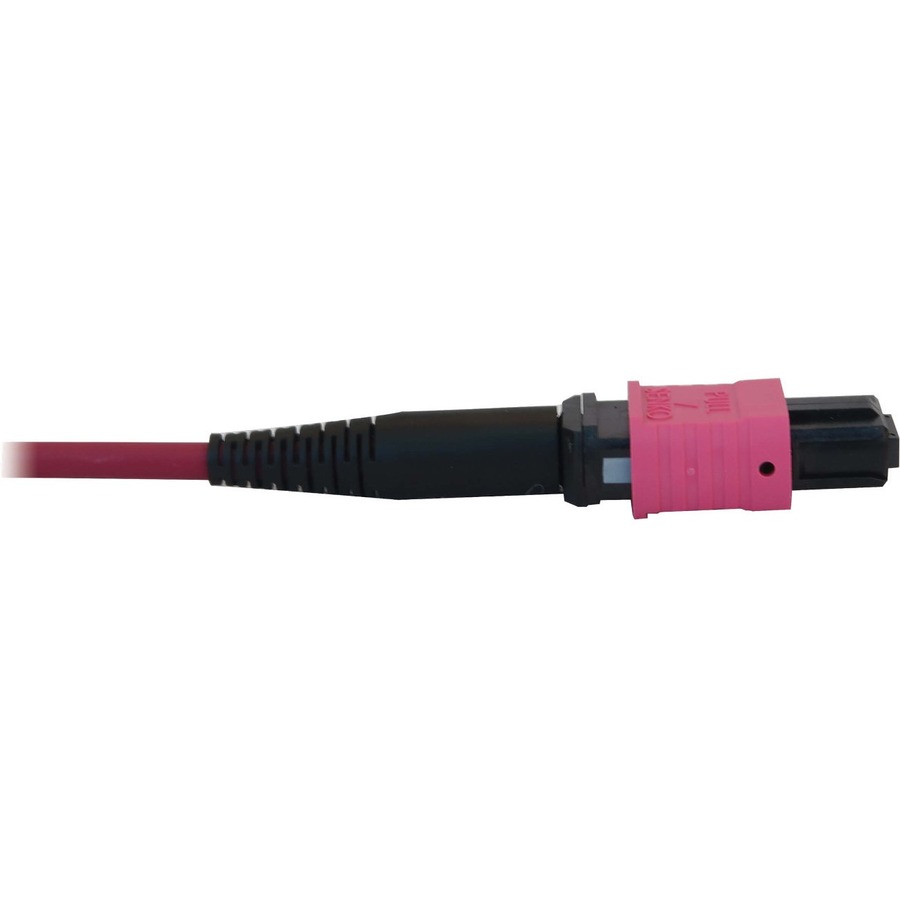

The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots and magenta housings allow easy one-handed installation and removal of the cable.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N858B10M3X8MG |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | N858B-10M-3X8MG |
| Product Name | N858B-10M-3X8MG Fiber Optic Trunk Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Trunk Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 32.81 ft |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector on First End Details | 3 x MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Connector on Second End Details | 3 x MTP/MPO Network - Female |
| Jacket Type | OFNR |
| Jacket Type | LSZH |
| Device Supported | Patch Panel |
| Device Supported | Switch |
| Device Supported | Network Device |
| Data Transfer Rate | 400 Gbit/s |
| Boot Type | Slim |
| Features | Stranded |
| Features | Polished Connector (PC) |
| Features | Bendable |
| Physical Characteristics | |
| Jacket Color | Magenta |
| Connector Color | Black |
| Connector Color | Magenta |
| Shipping Height | 0.50" |
| Shipping Width | 10.50" |
| Shipping Weight (Approximate) | 13.44 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
