40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

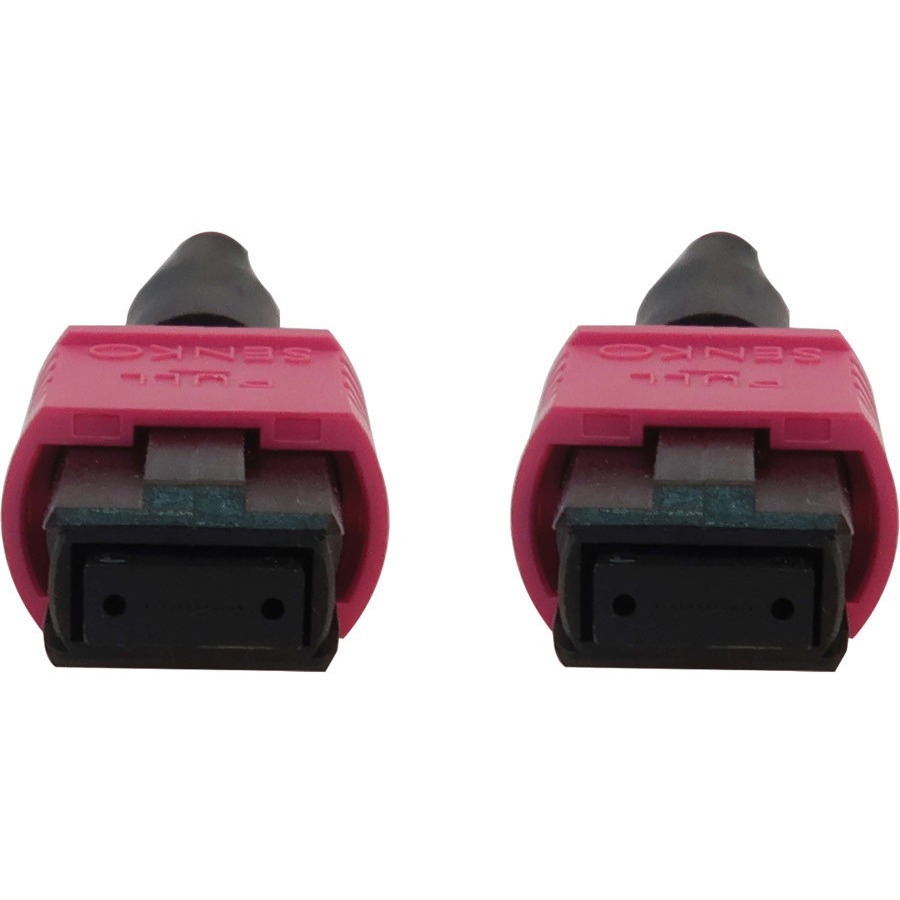

The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots allow easy one-handed installation and removal of the cable.
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | N845B20M12MG |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | N845B-20M-12-MG |
Product Name | N845B-20M-12-MG Fibre Optic Network Cable |
Packaged Quantity | 1 Piece |
Product Type | Network Cable |
Technical Information | |
Cable Type | Fiber Optic |
Fiber Optic Mode | Multi-mode |
Core/Cladding Diameter | 50/125 µm |
Cable Length | 65.62 ft |
Connector Type on First End | MTP/MPO Network - Female |
Connector on First End Details | 1 x MTP/MPO Network - Female |
Connector Type on Second End | MTP/MPO Network - Female |
Connector on Second End Details | 1 x MTP/MPO Network - Female |
Jacket Type | OFNR |
Jacket Type | LSZH |
Device Supported | Patch Panel |
Device Supported | Switch |
Device Supported | Network Device |
Data Transfer Rate | 100 Gbit/s |
Boot Type | Slim |
Features | Polished Connector (PC) |
Features | Bendable |
Features | Stranded |
Features | Push-Pull Tab |
Physical Characteristics | |
Jacket Color | Magenta |
Connector Color | Black |
Connector Color | Magenta |
Miscellaneous | |
Environmentally Friendly | Yes |
Environmental Certification | EcoLogo |
Country of Origin | China |
Warranty | |
Limited Warranty | Lifetime |
