Optimised for Static Pressure
During the development of the new P12 TC, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 TC is particularly suitable for use on heatsinks and radiators.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Two Way Installation
| General Information | |
| Manufacturer | Arctic Cooling |
| Manufacturer Part Number | ACFAN00176A |
| Manufacturer Website Address | http://www.arctic-cooling.com |
| Brand Name | Arctic |

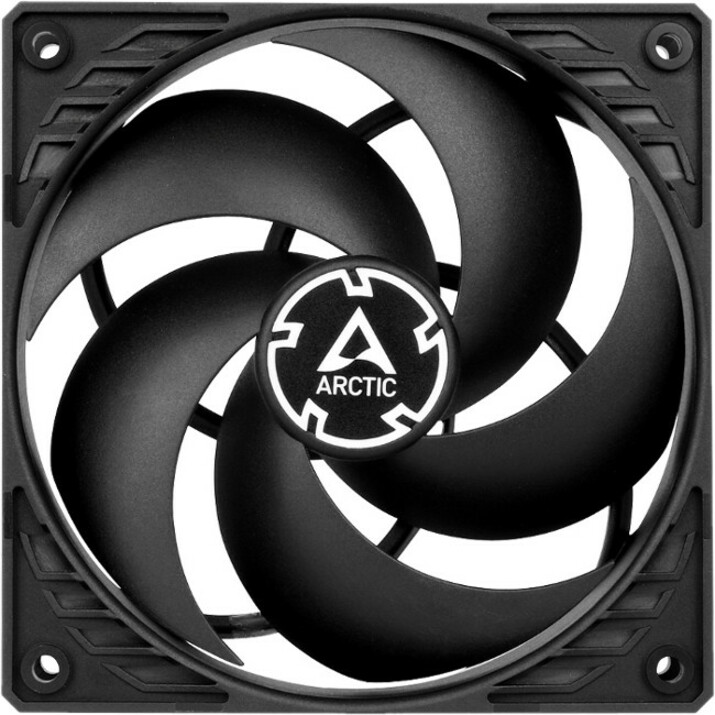

| Product Model | P12 TC |
| Product Name | Pressure-optimised 120 mm Fan With Temperature Control |
| Packaged Quantity | 1 |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Speed (Max) | 1800 rpm |
| Maximum Airflow | 56.30 CFM |
| Noise Levels (A-Weighted) | 24.5 dB(A) |
| Interfaces/Ports | |
| Connectors | 3-pin |
| Physical Characteristics | |
| Material Details | |
| Maximum Fan Diameter | 4.72" |
| Fan Diameter Details | 1 x 120mm |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Fan Depth | 4.72" |
| Weight (Approximate) | 4.90 oz |
| Miscellaneous | |
| Application/Usage | Radiator |
| Application/Usage | Heatsink |
| Application/Usage | Case |
