| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XND6083RV |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XND-6083RV |

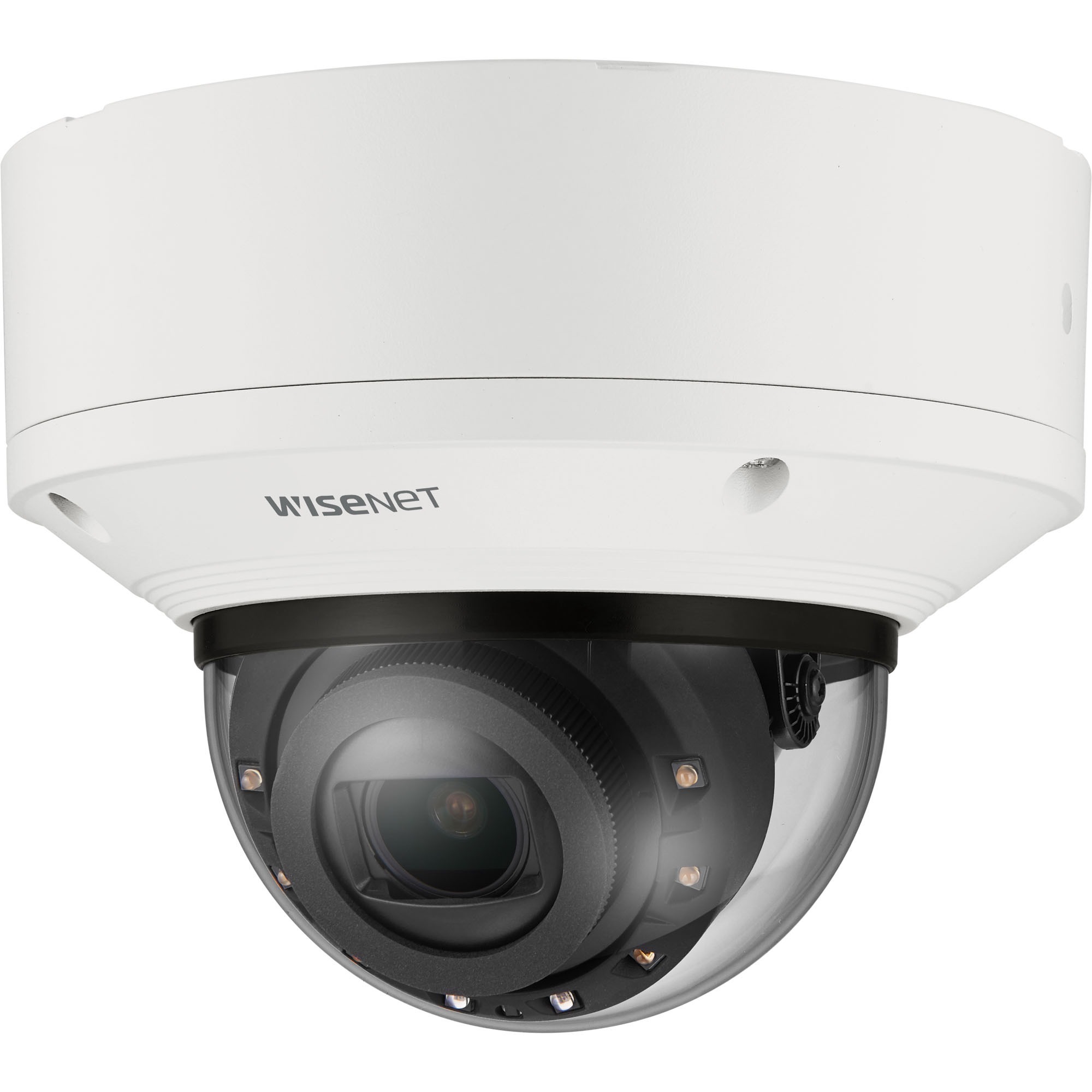

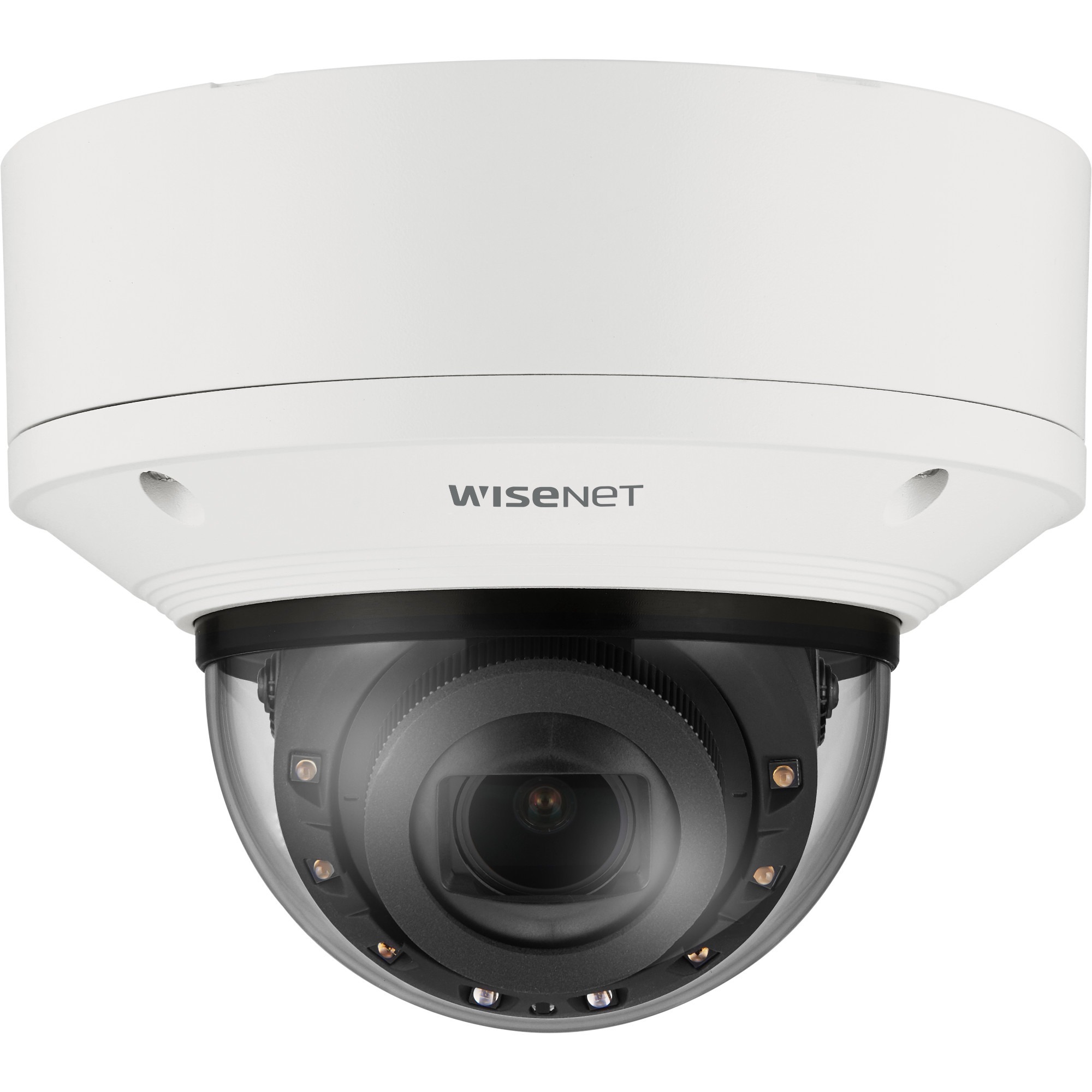

| Product Name | 2MP AI IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | Motion JPEG |
| Video Formats | H.265M |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | H.264M |
| Video Formats | H.265H |
| Video Formats | H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 120 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.80 mm |
| Maximum Focal Length | 12 mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Diameter | 6.3" |
| Weight (Approximate) | 3.53 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -13°F (-25°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Audio Detection |
| Features | Motion Detection |
| Features | Shock Detection |
| Features | Defog |
| Features | Day/Night |
| Features | Digital Image Stabilization |
| Features | Digital Noise Reduction |
| Features | Highlight Compensation (HLC) |
| Features | Tamper Detection |
| Features | SD Card Local Storage |
| Features | Back Light Compensation (BLC) |
| Features | Gain Control |
| Features | Privacy Masking |
| Features | Wide Dynamic Range |
| Features | Automatic White Balance |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP52 |
