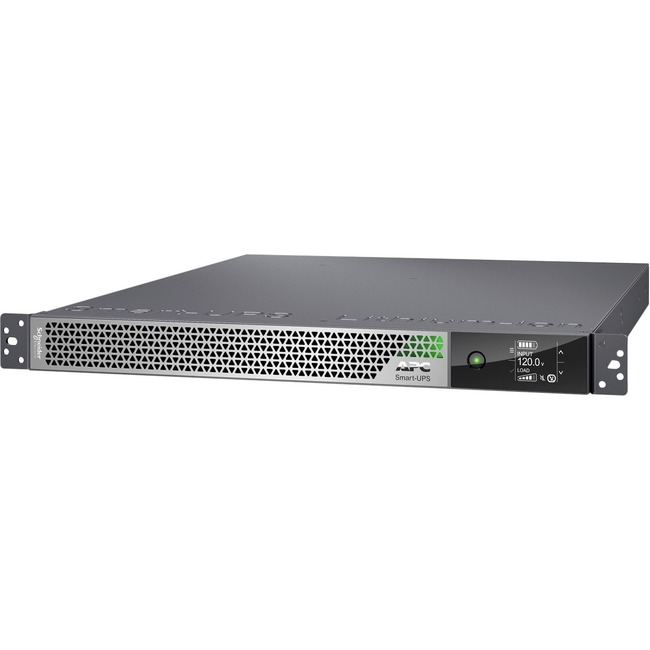

SRTL3KRM1UNC APC SMART-UPS SRT, LITHIUM-ION, 3000VA 120V, WITH SMARTCONNECT, WITH NETWORK MAN
Mfg Part Number: SRTL3KRM1UNC , Item #: 4554368
Special Note: Dec 06, 2021
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL3KRM1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 3000VA Rack/Tower UPS |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L5-30R |
| Receptacle Detail | 5 x NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 7.87 ft |
| Phase | Single Phase |
| Application/Usage | Voice/Data Network |
| Application/Usage | Medical |
| Application/Usage | Server |
| Application/Usage | Light Industrial Application |
| Application/Usage | Retail and Wholesale |
| Power Description | |
| Load Capacity (VA) | 2880 VA |
| Load Capacity (Watt) | 2880 W |
| Input Voltage | 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | Network-MS Card |
| Controls/Indicators | |
| Status Indicators | Multifunction LCD |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 50 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1123.2 kJ |
| Typical Battery Recharge Time | 1.50 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver Gray |
| Height | 1.7" |
| Width | 17" |
| Depth | 22" |
| Rack Height | 1U |
| Form Factor | Rack/Tower |
| Mounting Preference | No Preference |
| Weight (Approximate) | 35.05 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UNC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=540735187&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=540735187&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311012EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| Toxic Heavy Metal Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
