UD-6950Z PLUGABLE USB 3.0 & USB-C DUAL 4K DISPLAY DOCKING STATION *** Open Box Item ***

Performance
Featuring the latest DisplayLink DL-6950 chipset, the Plugable UD-6950Z docking station lets you connect two external monitors up to a 4K@60Hz resolution using DisplayPort or HDMI to your Windows laptop, or desktop via USB 3.0. Additionally, the UD-6950Z dock allows you to connect up to eight accessories to the six USB 3.0 ports, a Gigabit Etherent connection and audio input/output port all through a single USB cable.
4K@60Hz Notes:
To achieve 4K @ 60Hz each connected monitor must support 4K @ 60Hz on the DisplayPort 1.2 or HDMI 2.0
This docking station does not support host charging, we recommend using the systems separate power supply for optimal performance.
Compatibility
Our docking station is compatible with most modern laptops and desktops running Windows 11, 10, 8.1 and 7 and macOS 10.14+ and requires the DisplayLink graphics software to be installed.
Not supported on Linux.
Does not support HDCP copy protected content (Blu-Ray, Netflix, Amazon Prime video, etc.). DisplayPort MST daisy-chain connections or Dual-Link DVI conversions are not supported from the DisplayPort outputs.
Gigabit Ethernet port requires a Full-Duplex network connection from the connected network device (router, switch, etc.).

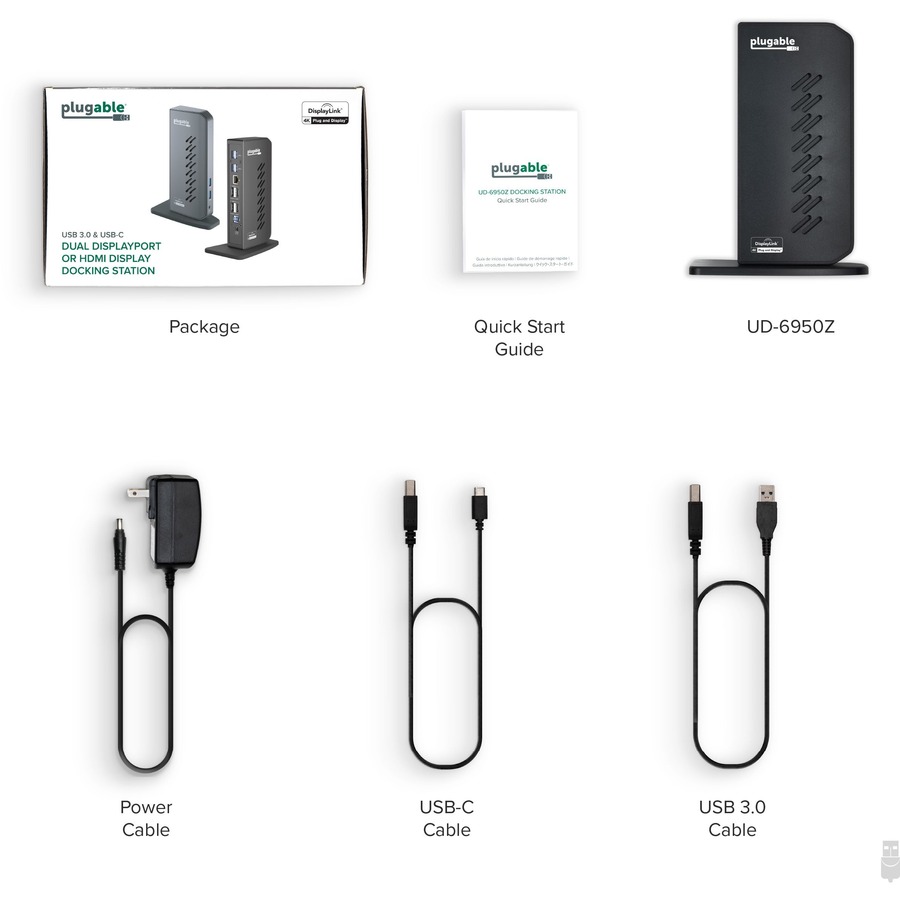

In the Box
Plugable UD-6950Z USB 3.0 Dual 4K Display Vertical Docking Station, USB 3.0 Type-A to Type-C Cable, USB 3.1 Type-C to Type-C Cable, Power Adapter (US AC Wall Outlet Plug, 20V@2A), Quick Installation Guide

More from the Manufacturer

General Information
Manufacturer	Plugable Technologies
Manufacturer Part Number	UD-6950Z
Manufacturer Website Address	http://www.plugable.com
Brand Name	Plugable
Product Model	UD-6950Z
Product Name	Dual 4K Display HDMI or DisplayPort Universal Docking Station
Packaged Quantity	1
Product Type	Docking Station
Technical Information
Connectivity Technology	Wired
Device Supported	Notebook/Desktop PC
Number of Displays Supported	2
Screen Mode Supported	4K
Supported Resolutions	1024 x 768
Supported Resolutions	1920 x 1080
Supported Resolutions	3840 x 2160
Supported Resolutions	1600 x 900
Supported Resolutions	800 x 600
Supported Resolutions	1152 x 864
Supported Resolutions	1280 x 800
Supported Resolutions	1280 x 1024
Supported Resolutions	2560 x 1080
Supported Resolutions	2560 x 1440
Supported Resolutions	1280 x 720
Supported Resolutions	3440 x 1440
Supported Resolutions	640 x 480
Supported Resolutions	3840 x 1600
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Host Interface	USB 3.0 Type C
Host Interface	USB 3.0 Type A
Audio Line In	Yes
Audio Line Out	Yes
Total Number of USB Ports	6
Number of USB 3.0 Ports	6
Number of USB Type-A Ports	6
USB Type-A	Yes
USB Type-C	Yes
USB Type-C Detail	1 x USB 3.1 Type-C to Type-B cable
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
Number of DisplayPort Outputs	2
DisplayPort	Yes
Headphone/Microphone Combo Port	Yes
Number of HDMI Outputs	2
HDMI	Yes
Software
Operating System Supported	macOS
Operating System Supported	Windows
Miscellaneous
Package Contents	Dual 4K Display HDMI or DisplayPort Universal Docking Station 1 x Quick Start Guide 1 x USB 3.0 Cable 1 x USB-C Cable 1 x Power adapter
Compatibility	Compatible with most laptops and desktops running Windows 10/8.x/7 and macOS 10.14+.
Country of Origin	Thailand
Warranty
Limited Warranty	2 Year
