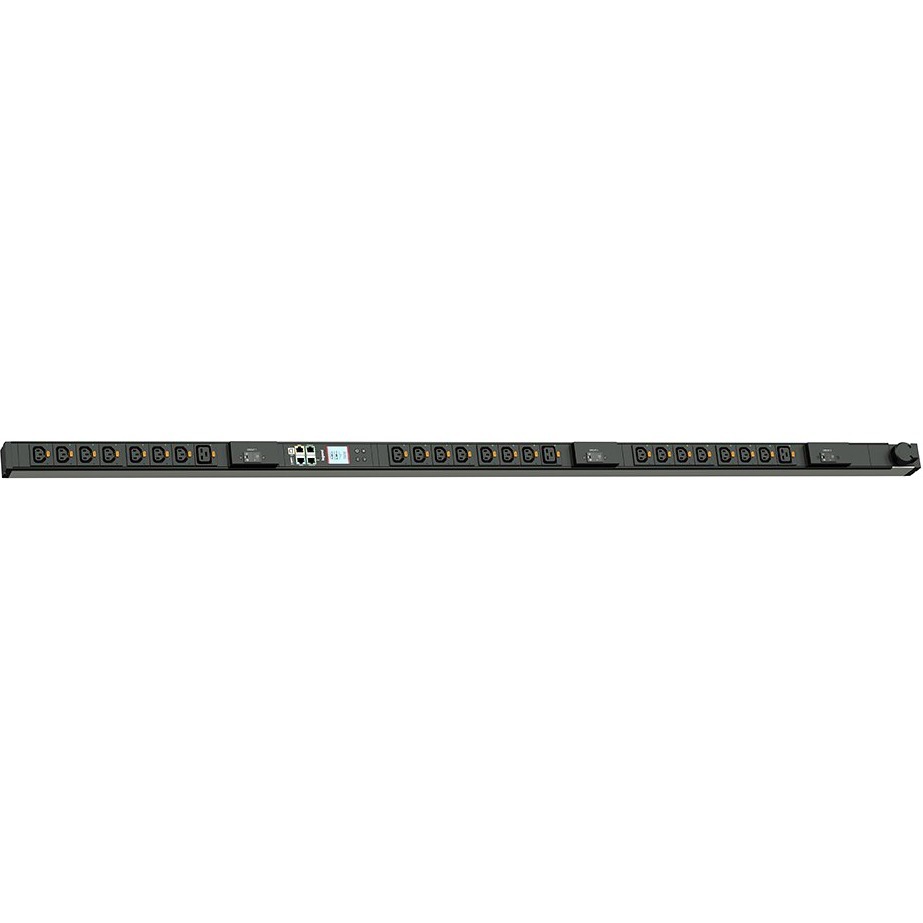

MIDDLE ATLANTIC LP-62300 SW 0U 24A 208V(21)C13 & (3)C19 L6-30P

The Legrand LP-62300 Network Switched PDU is designed to provide advanced power management capabilities, including individual outlet power cycling, power sequencing, and load monitoring. These controls can be accessed both locally and remotely, offering flexibility and convenience for IT staff and caretakers. A single portal view provides comprehensive visibility and control of power usage and available capacity, simplifying maintenance responsibilities and enhancing operational efficiency. The PDU operates at 208V and features 21 C13 outlets with a 12A capacity and 3 C19 outlets with a 16A capacity. Designed for vertical button mounting, the LP-62300 also includes horizontal and vertical mounting brackets for versatile installation options. It is TAA compliant, ensuring it meets government procurement standards.

General Information
Manufacturer	Legrand Group
Manufacturer Part Number	LP-62300
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Name	ZeroU PDU - 30 Amp, 24 Outlet Switched Power Distribution Unit - TAA Compliant
Product Type	PDU
Technical Information
PDU Type	Switched
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	3 x IEC 60320 C19
Receptacle Detail	21 x IEC 60320 C13
Power Description
Input Current	24 A
Interfaces/Ports
Network (RJ-45)	Yes
Physical Characteristics
Mount Type	Rack-mountable
Rack Height	0U
Height	4.3"
Width	10.3"
Length	74.8"
Weight (Approximate)	12.78 lb
Miscellaneous
Country of Origin	China
Warranty
Limited Warranty	2 Year
