ASUS and Noctua have teamed up to produce the quietest air-cooled graphics card in its class.

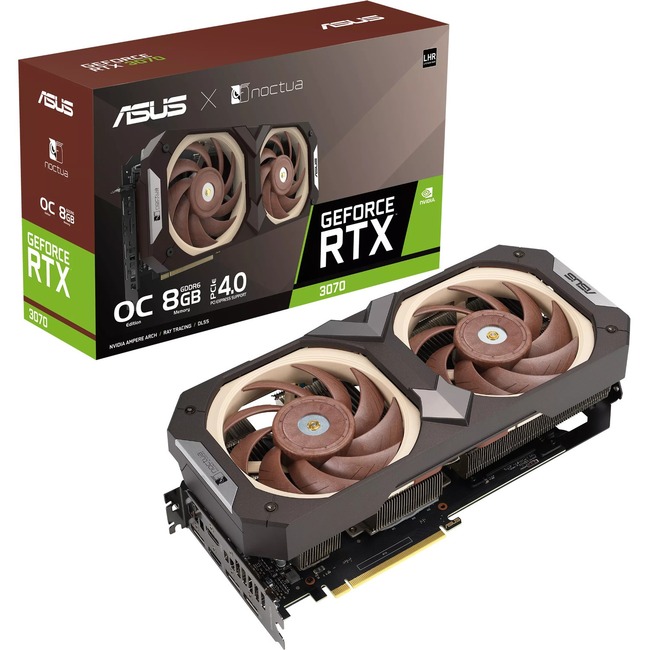

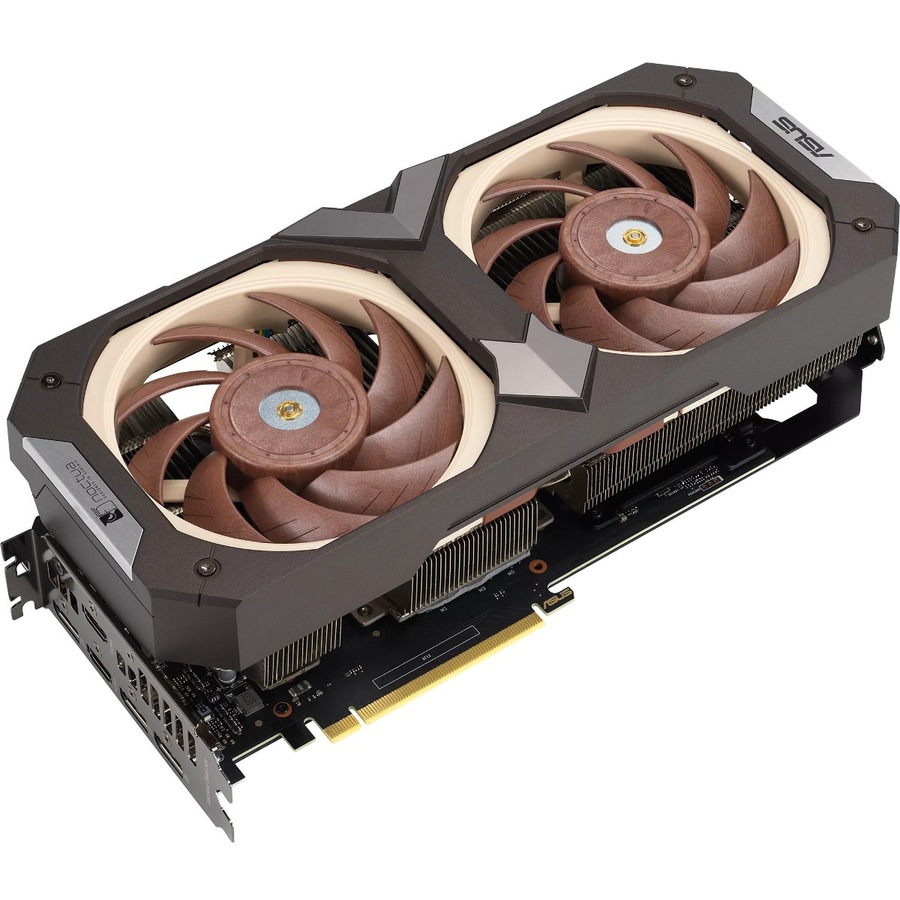

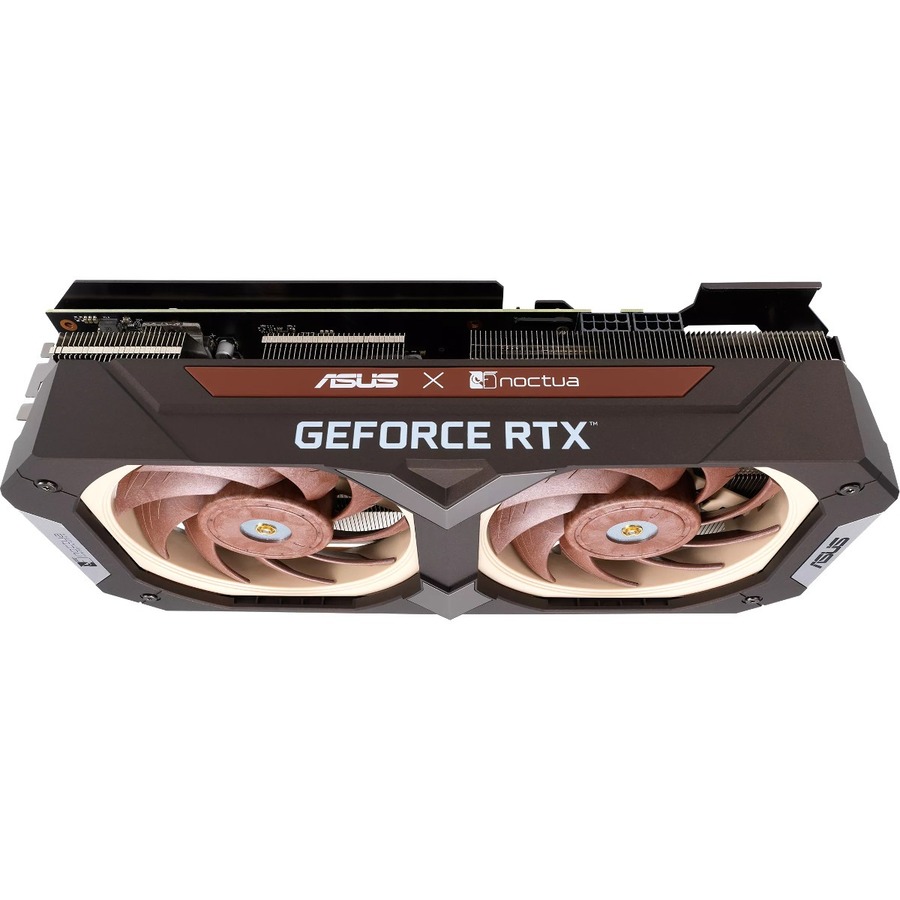

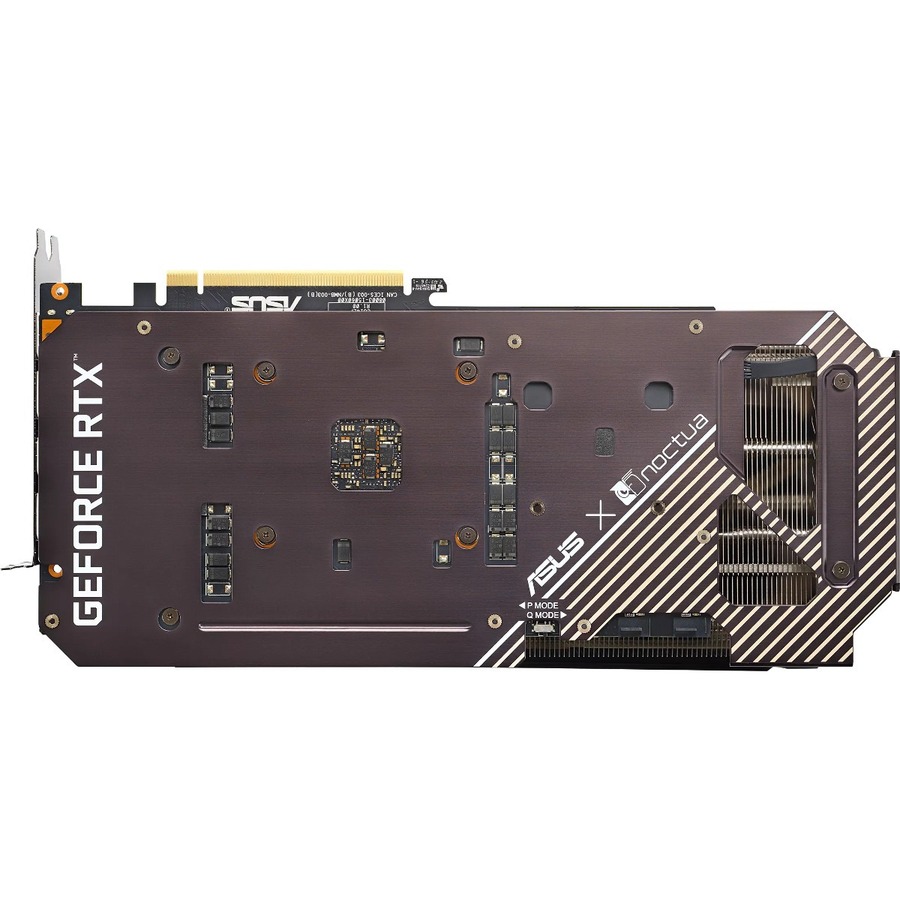

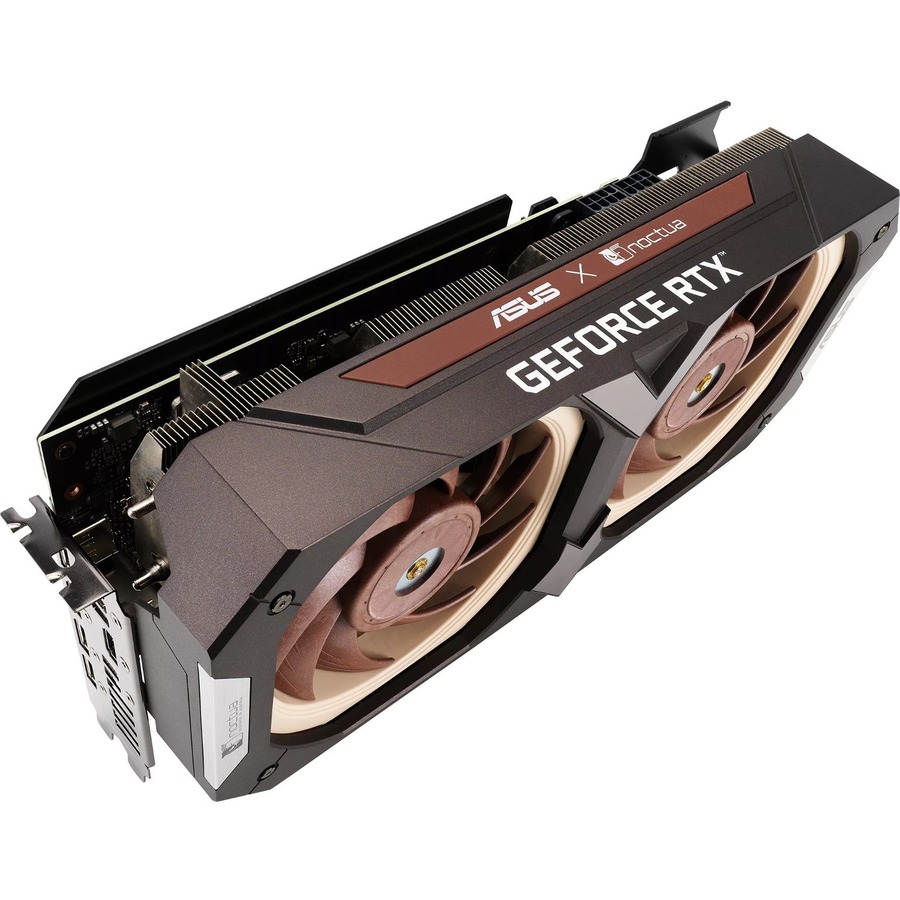

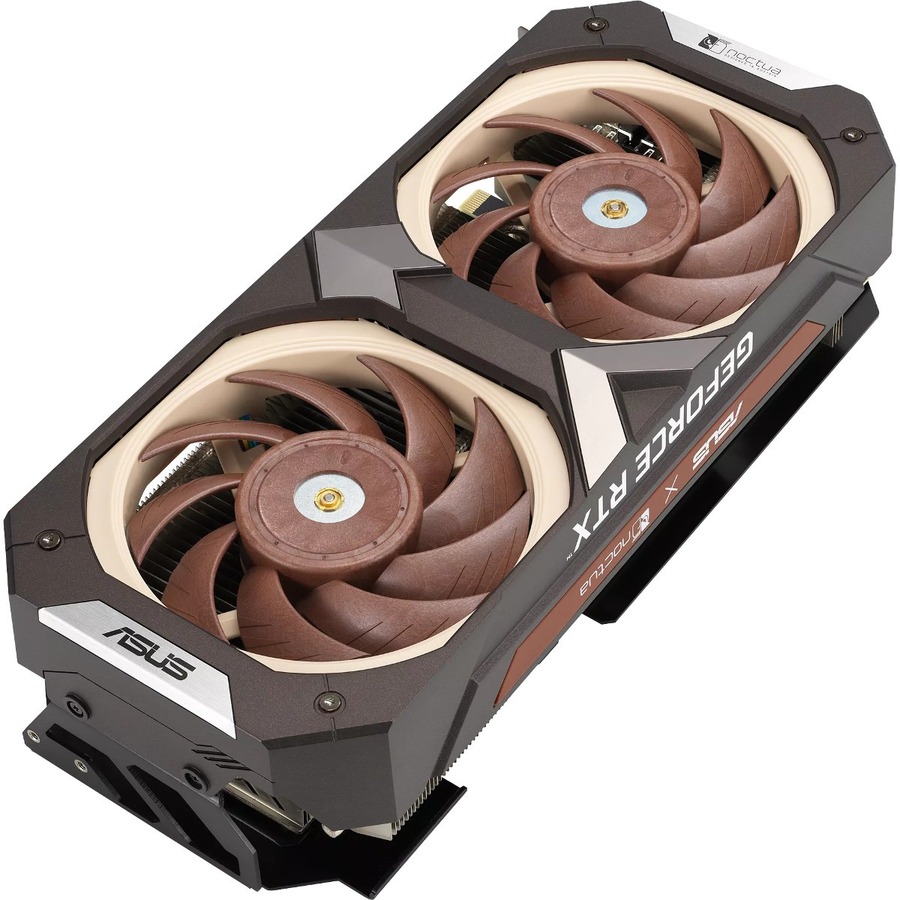

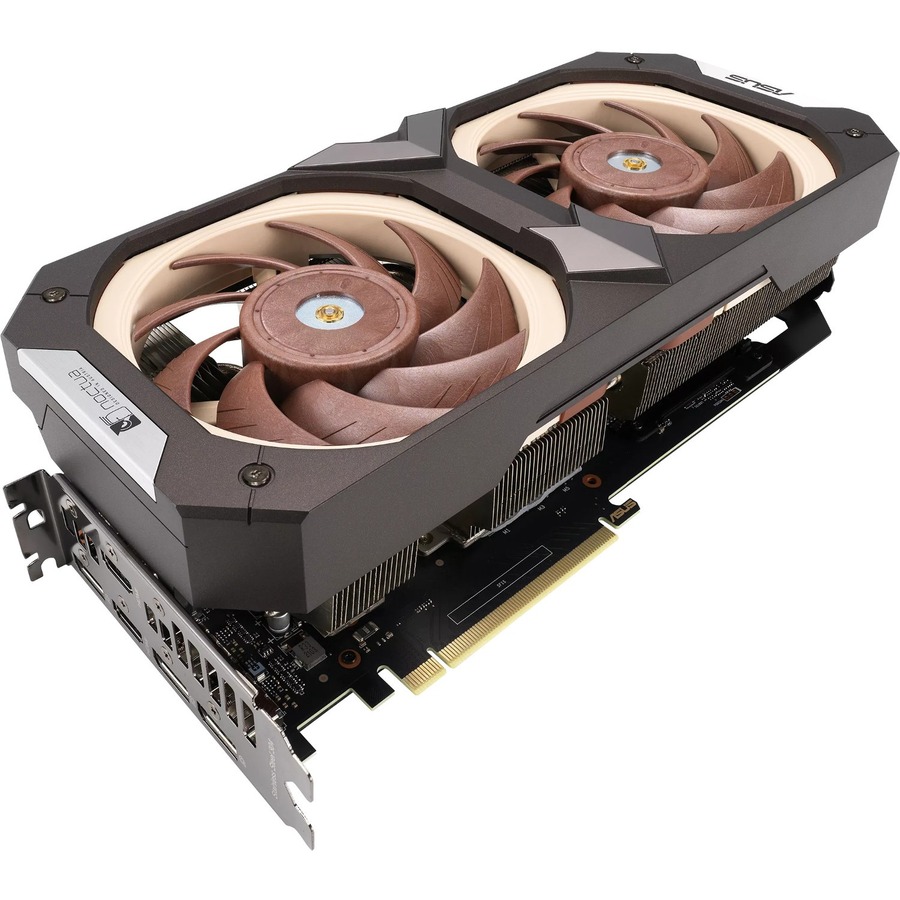

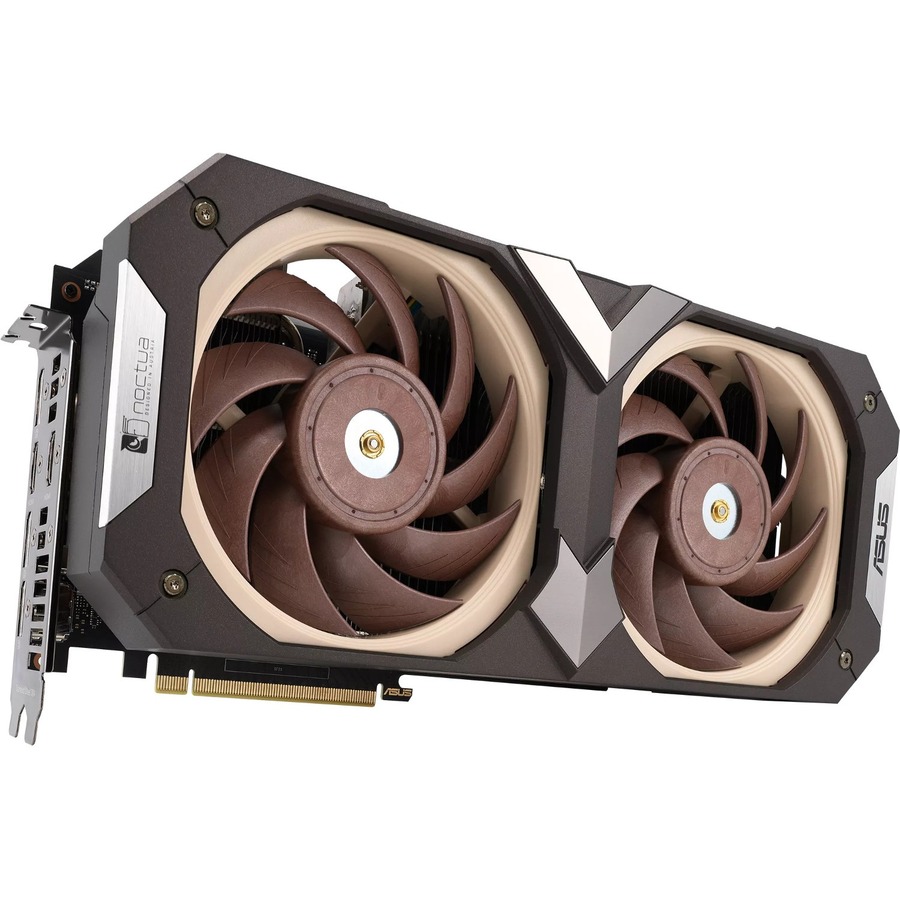

ASUS GEFORCE RTX™ 3070 NOCTUA EDITION | The Coolest & Quietest Graphics Card in Its Class
ASUS and Noctua engineers teamed up to pair two iconic NF-A12x25 PWM fans with a tailor-made thermal solution that rides on a custom PCB. This potent pairing allows the ASUS GeForce RTX 3070 Noctua Edition to operate at lower GPU temperatures and produce less noise than any air-cooled graphics card in its class.
Cool and Quiet
From shroud to heatsink, every aspect of the cooler is optimized to set new standards for thermals and acoustics.

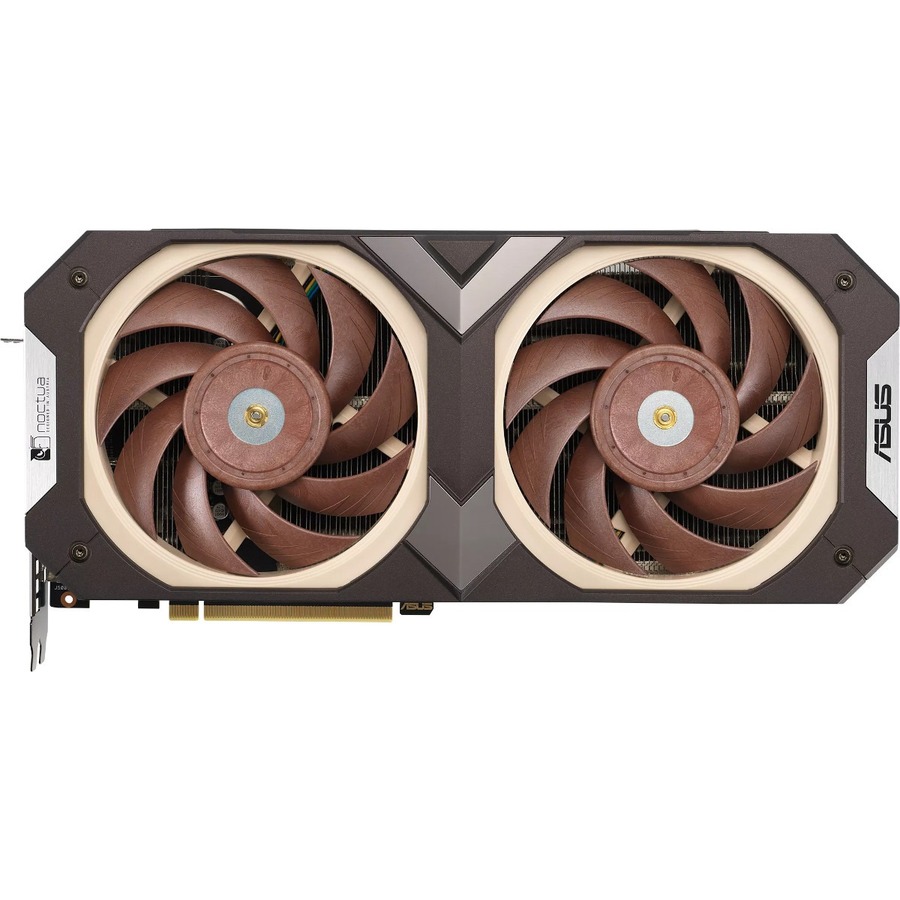

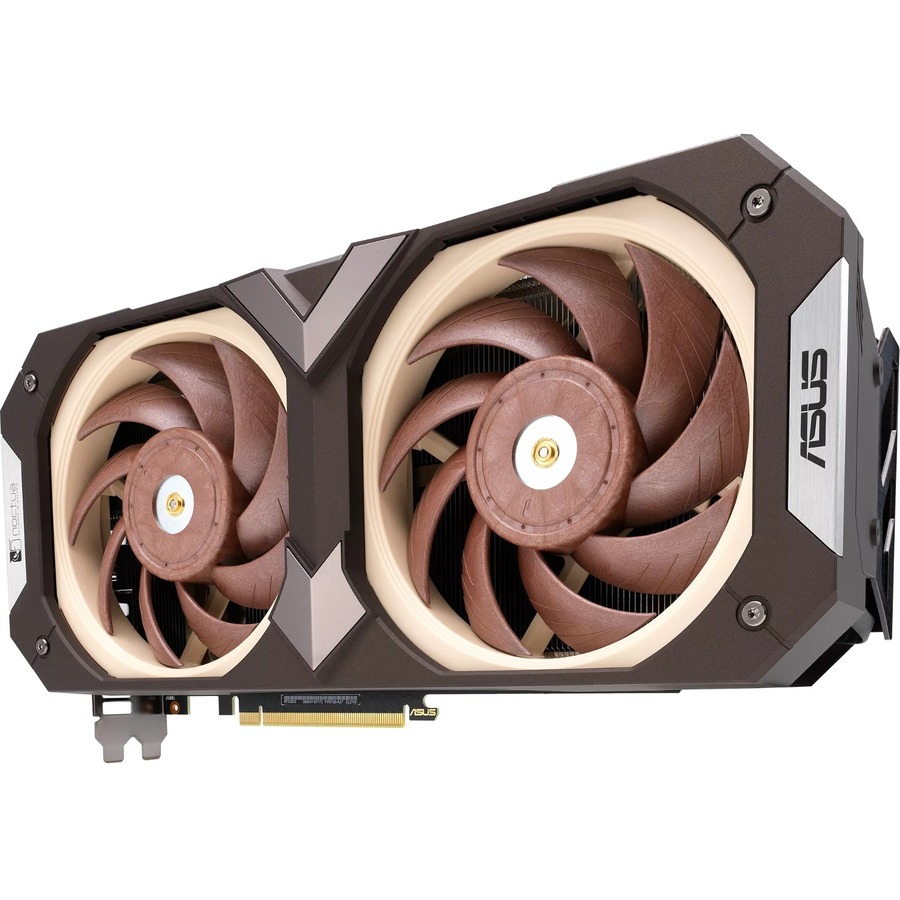

The two Noctua NF-A12x25 120mm fans integrate a low-resonance Sterrox® liquid-crystal polymer (LCP) fan impeller, metal-reinforced motor hub, stabilized bearings, and custom low-noise PWM controller to deliver performance you can rely on day in, day out.
ASUS and Noctua engineers ran extensive simulations to optimize heatpipe placement and fin density to take full advantage of the air propelled by both Noctua NF-A12x25 fans.
Card Enhancements
Additional upgrades first championed on ROG Strix and TUF Gaming GeForce RTX 30-series graphics cards allow the ASUS GeForce RTX 3070 Noctua Edition to deliver performance and durability at every level.
GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
XSplit | Gamecaster
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
General Information | |
Manufacturer | ASUS Computer International |
Manufacturer Part Number | RTX3070-O8G-NOCTUA |
Manufacturer Website Address | http://usa.asus.com |
Brand Name | Asus |
Product Line | EKWB |
Product Model | RTX3070-O8G-NOCTUA |
Product Name | GeForce RTX 3070 Noctua OC Edition 8GB GDDR6 Graphic Card |
Product Type | Graphic Card |
Technical Information | |
API Supported | OpenGL 4.6 |
API Supported | DirectX 12 Ultimate |
Multi-GPU Technology | No |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 5888 |
Processor & Chipset | |
Chipset Manufacturer | NVIDIA |
Chipset Line | GeForce |
Chipset Series | RTX |
Chipset Model | RTX 3070 |
GPU Boost Clock | 1.85 GHz |
Memory | |
Standard Memory | 8 GB |
Memory Technology | GDDR6 |
Bus Width | 256 bit |
Interfaces/Ports | |
Host Interface | PCI Express 4.0 |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
HDMI | Yes |
Number of HDMI Outputs | 2 |
DVI | No |
Dual Link DVI Supported | No |
Power Description | |
Power Supply Wattage | 750 W |
Power Connector | 2x 8-pin |
Physical Characteristics | |
Slot Space Required | Quad |
Form Factor | Plug-in Card |
Card Length | Full-length |
Card Height | Full-height |
Cooler Type | Fan Cooler |
Height | 3.5" |
Width | 5.8" |
Length | 12.2" |
Weight (Approximate) | 3.44 lb |
Miscellaneous | |
Package Contents |
|
Platform Supported | PC |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
