THERMALTAKE

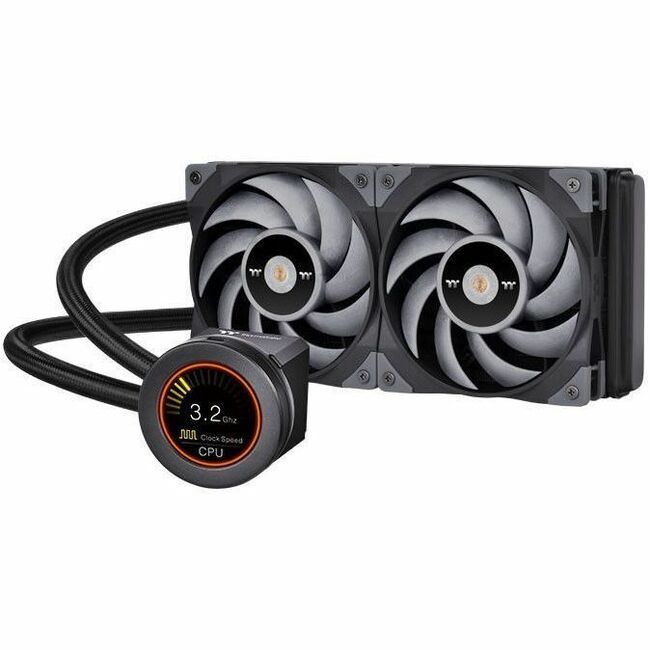

THERMALTAKE CL-W322-PL12GM-A TOUGHLIQUID ULTRA 240 AIO LIQUID COOLER

Mfg Part Number:  CL-W322-PL12GM-A
Image may not reflect the actual item.
Price: $356.35 + Free Shipping
Quantity:
More to Come
Last Updated: Aug 16, 2025
No Sales Tax except these states
, PO and Wire.

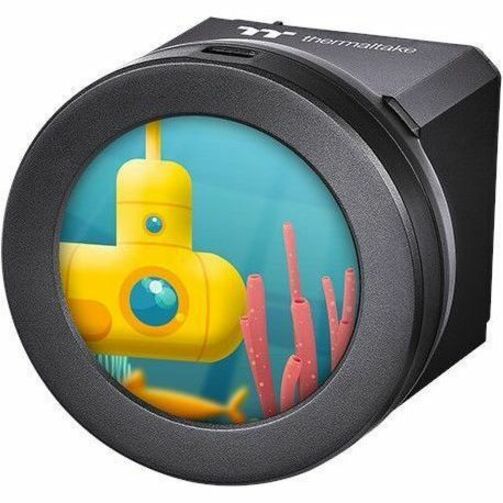

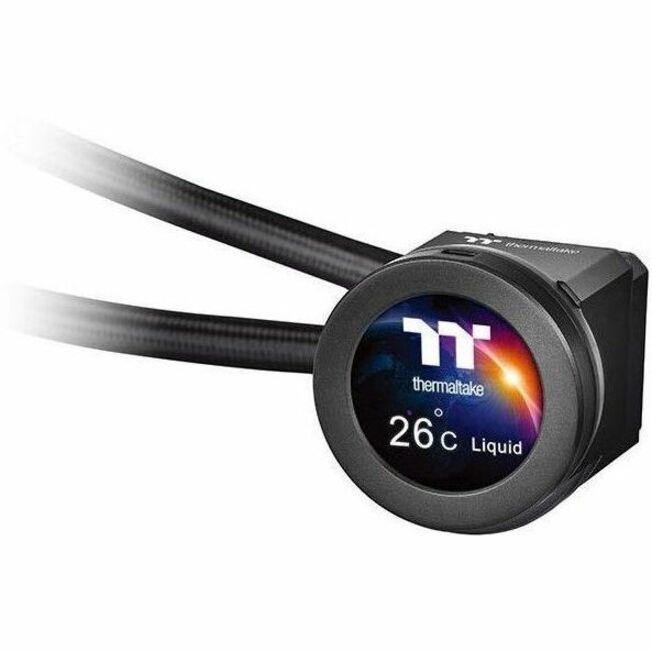

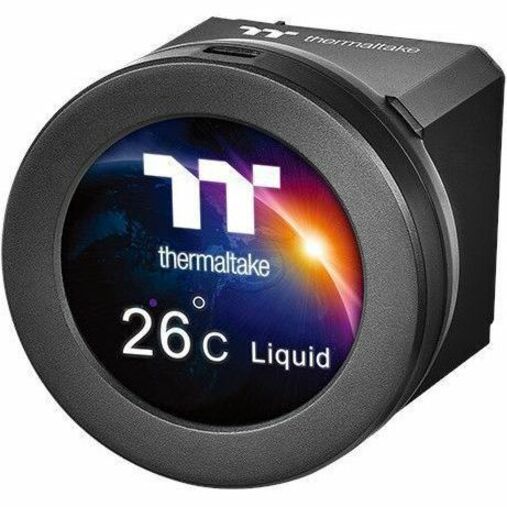

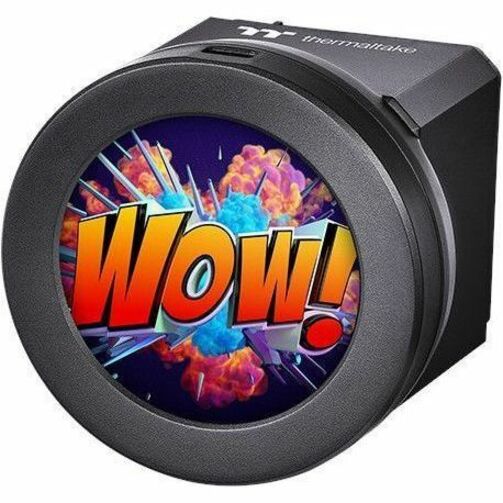

2.1 Inch Rotational LCD Display

A 2.1 Inch Rotational LCS Display that presents real-time information and even play JPG and GIF files with 480*480 resolution, bringing great visual aesthetics and highly customizable functions to your All-in-One cooler.

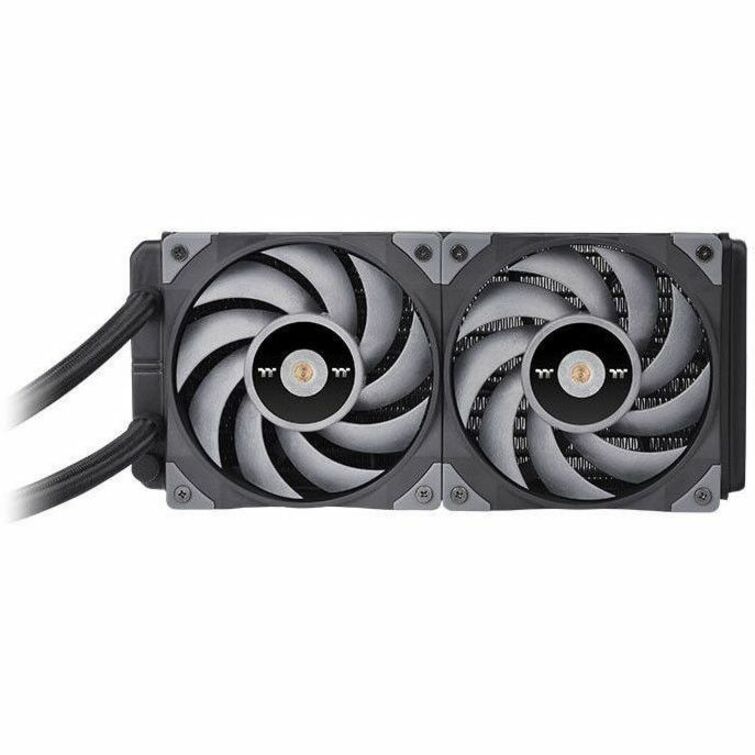

TOUGHFAN 12 Turbo Equipped

Equipped with two TOUGHFAN 12 Turbo fans, the TOUGHLIQUID Ultra 240 boosts the fan speed up to 2500 RPM, ensuring the best cooling results whether you're working or gaming.

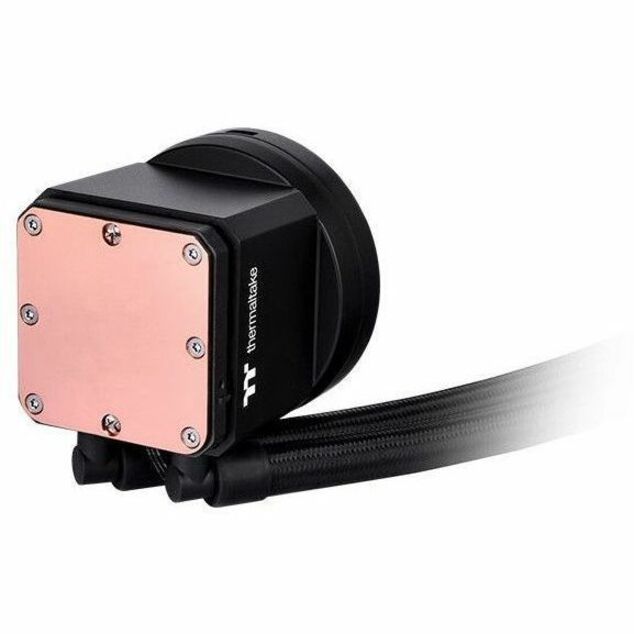

High-Performance Cold Plate

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Fully Customizable with TT RGB Plus 2.0

Monitor frequency and real-time temperature directly from our 2.1 inch LCD Display, and upload any image or GIF file to add extra flair with the TT RGB Plus 2.0 software.

TT RGB PLUS 2.0 Software

The new version of Thermaltake's TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.

Sync with Razer Chroma Lighting

All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!

TT AI Voice Control

Give you full control over the TT RGB PLUS products with your voice. "SyncALL, Say"Hello TT".

Works with Amazon Alexa

All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.

Main Specification
General Information
Manufacturer Thermaltake Technology Co., Ltd
Manufacturer Part Number CLW322PL12GMA
Manufacturer Website Address http://www.thermaltakeusa.com
Brand Name Thermaltake
Product Line TOUGHLIQUID Ultra 240
Product Name TOUGHLIQUID Ultra 240 All-In-One Liquid Cooler
Product Type Cooling Fan/Radiator/Water Block/Pump
Fan Information
Number of Fans 2
Fan Speed (Min) 500 rpm
Fan Speed (Max) 2500 rpm
Maximum Airflow 72.69 CFM
Noise Levels (A-Weighted) 28.1 dB(A)
LED Color RGB
Maximum Air Pressure 3.78mmH2O
Heatsink Information
Cooler Type Liquid Cooler
Compatible Intel Socket H4 LGA-1151
Compatible Intel Socket R LGA-2011
Compatible Intel Socket LGA-1200
Compatible Intel Socket LGA 2011-v3
Compatible Intel Socket LGA-1700
Compatible Intel Socket H3 LGA-1150
Compatible Intel Socket R4 LGA-2066
Compatible Intel Socket H2 LGA-1155
Compatible Intel Socket H LGA-1156
Compatible AMD Socket AM2 PGA-940
Compatible AMD Socket AM4
Compatible AMD Socket AM3+
Compatible AMD Socket AM2+ PGA-940
Compatible AMD Socket AM5
Compatible AMD Socket AM3 PGA-941
Compatible AMD Socket FM1
Compatible AMD Socket FM2
Interfaces/Ports
Connectors 2510-4PIN
Connectors 9PIN
Power Description
Rated Current 230 mA
Physical Characteristics
Color Family Black
Product Color Black
Radiator Material Aluminum
Material Details
  • Water Block Material: Copper
  • Tube Material: Rubber
Maximum Fan Diameter 4.72"
Radiator Height 10.75"
Radiator Width 4.72"
Radiator Depth 1.06"
Fan Height 4.72"
Fan Width 4.72"
Fan Depth 0.98"
Miscellaneous
Application/Usage Processor
Application/Usage CPU
