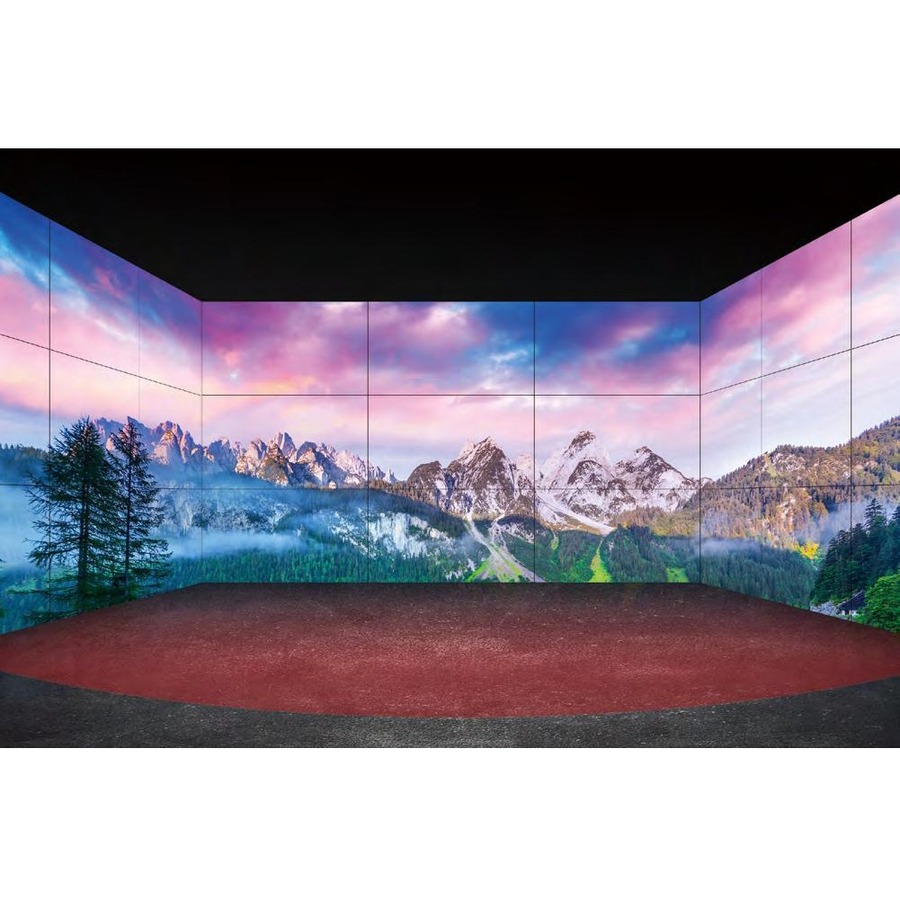

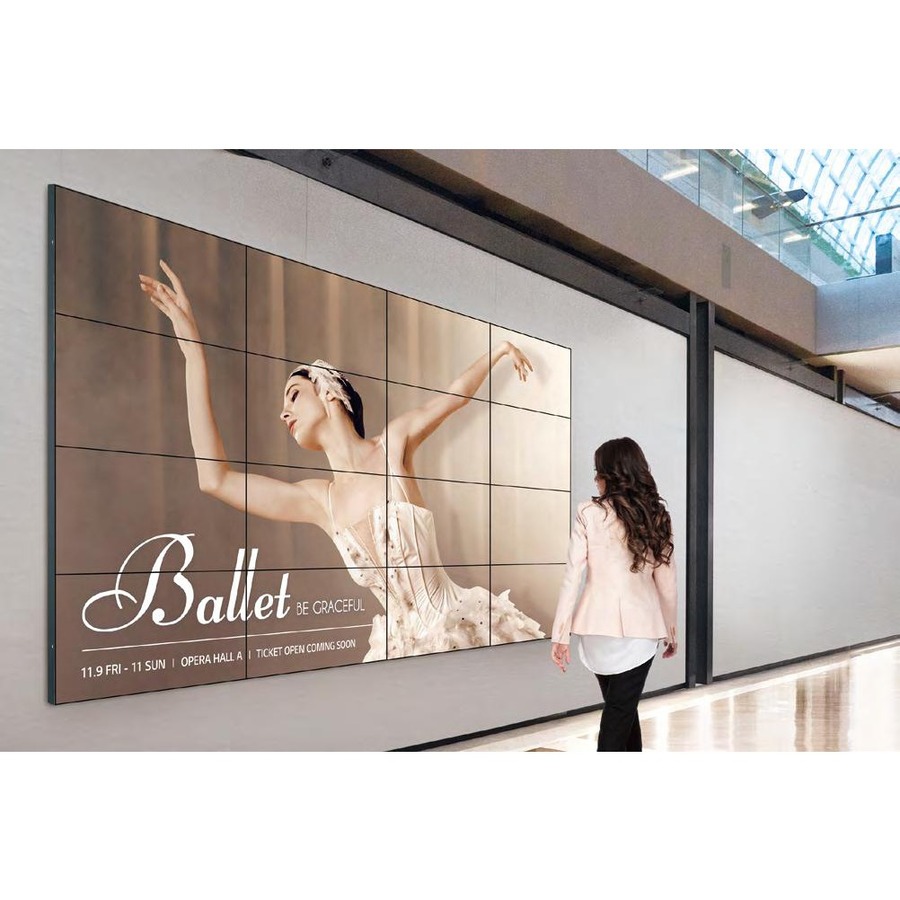

Seamless Video Walls with Ultra-Narrow Bezels
The ultra-narrow bezel of the 49VL5G-M helps create a visually stunning video wall that can deliver dynamic and immersive content to viewers. Combine large screens to create stunning video walls that captivate passerbys.
Image Gap Reduction
The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays during video playback. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
When a large video wall is positioned higher than human eye-level, the VL5G-M series has a viewing angle high enough to display vivid colors and maintain uniform picture quality throughout the screen with virtually no distortion.
Wide Viewing Angle
LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures attention and captivates more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

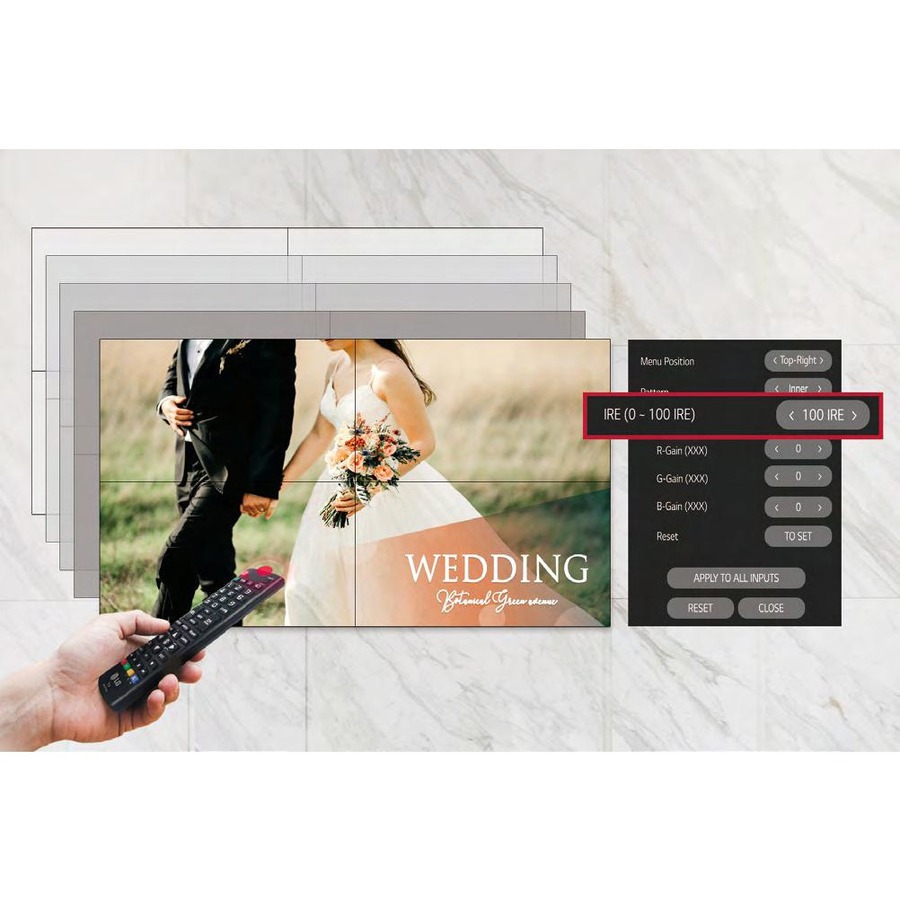

White Balance Adjustment
In conventional video walls, white balance was adjustable only in "full-white" mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

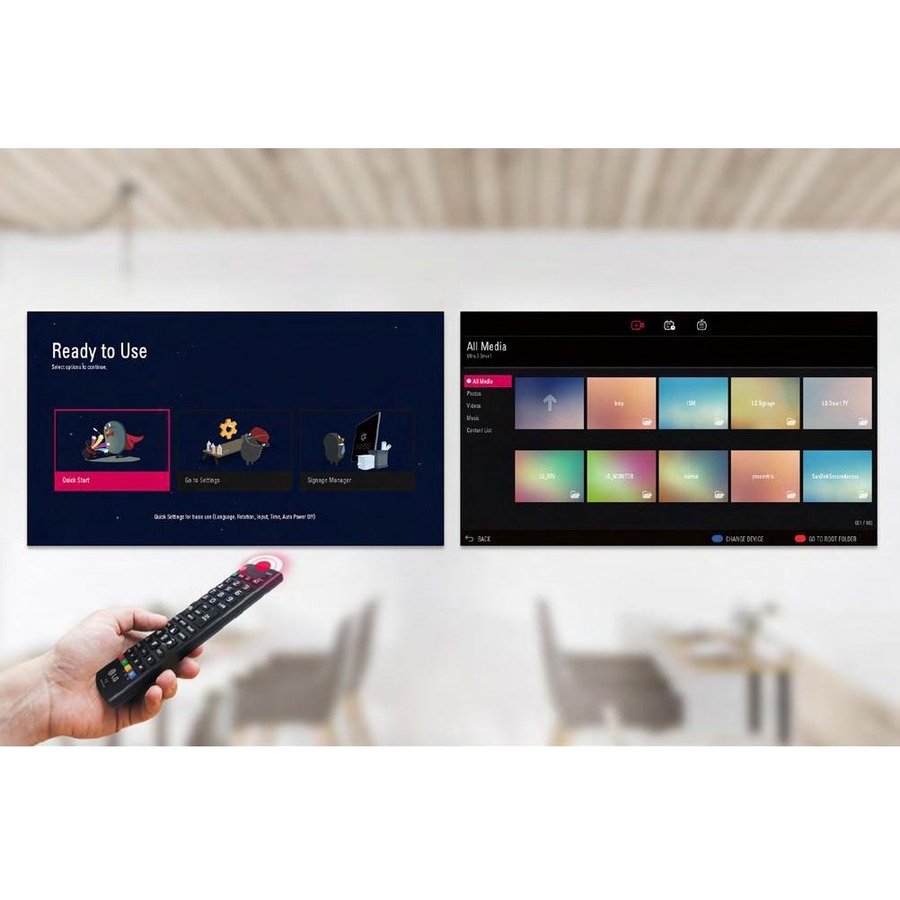

User-Friendly Menu Structure
Optimized for commercial use, the menu structure simplifies approach flows and groups similar functions together, creating a more intuitive user experience and GUI. This way, users can avoid trial-and-error when managing displays.
Intuitive GUI
The GUI (Graphical User Interface) has been designed to incorporate a four-way navigation remote control for greater options and control. Additionally, a large font size has been adopted to improve visibility from relatively far distances.
| General Information | |
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 49VL5GMW-9P |
| Manufacturer Website Address | http://www.lg.com/us |
| Brand Name | LG |
| Product Series | VL5G-M |
| Product Model | 49VL5G-M |
| Product Name | 49VL5G-M 49" FHD Slim Bezel Video Wall with 3.5mm Bezel |
| Product Type | Digital Signage Display |
| Technical Information | |
| Video Wall Compatible | Yes |
| Bezel Width (Bottom) | 49.2 mil |
| Bezel Width (Top) | 88.6 mil |
| Bezel Width (Left) | 88.6 mil |
| Bezel Width (Right) | 49.2 mil |
| Display & Graphics | |
| Number of Screens | 9 |
| Video Wall Configuration | 3x3 |
| Screen Size | 49" |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Backlight Technology | Direct LED |
| Video | |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 500,000:1 |
| Color Depth | 10-bit |
| Brightness | 500 Nit |
| Color Gamut | 72% NTSC |
| Network & Communication | |
| Ethernet | Yes |

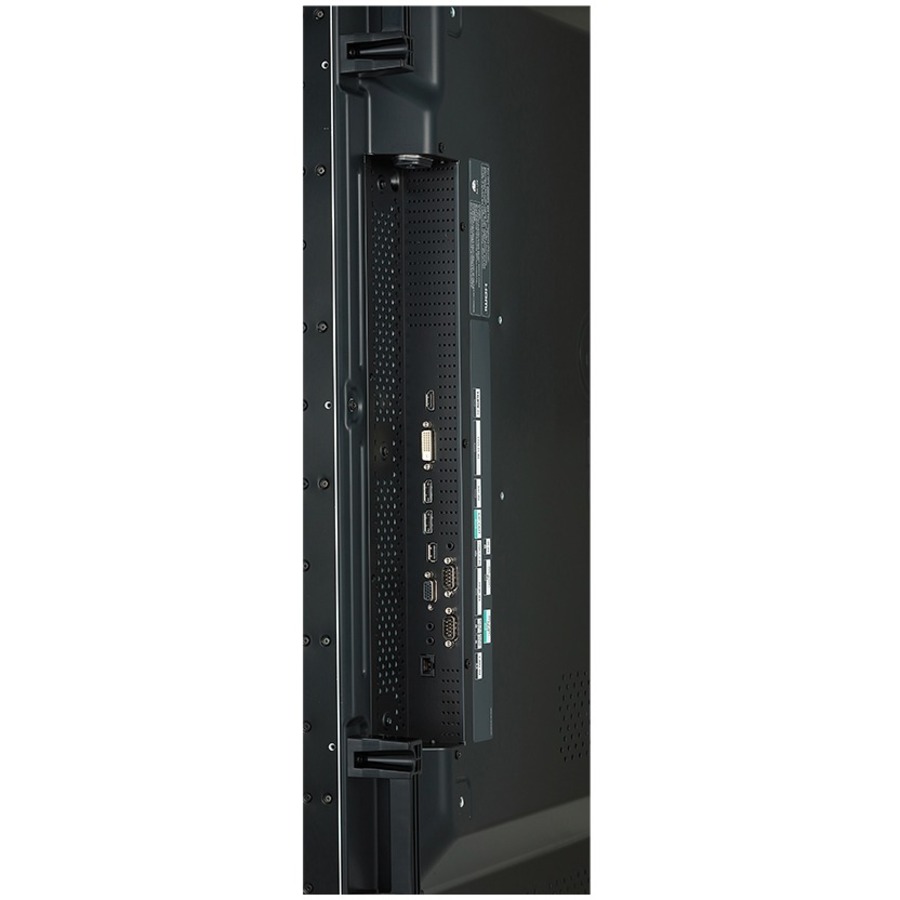

| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Physical Characteristics | |
| Product Color | Black |
| VESA Mount Standard | 600 x 400 |
| Mount Type | Wall Mountable |
| Height | 23.9" |
| Width | 42.4" |
| Depth | 3.5" |
| Weight (Approximate) | 37.30 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Country of Origin | Mexico |
