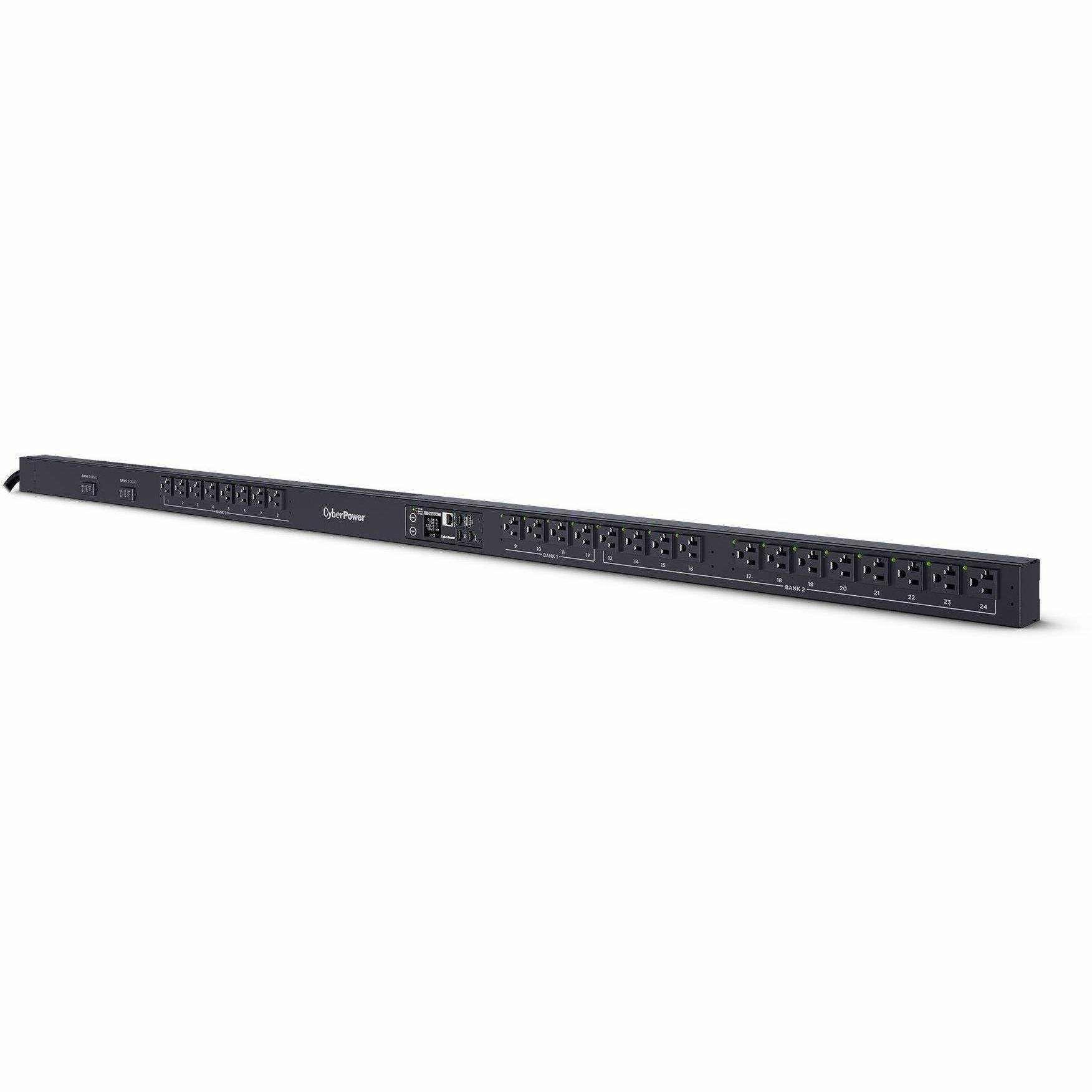

The CyberPower PDU41102, a 24-outlet (front), 0U rackmount switched power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU41102 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Switched PDU |
| Product Name | 24-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Design | Modular |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Locking Receptacles | Cord Retention Tray |
| Environmental Sensors | Temperature/Humidity |
| Power Description | |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 30 A |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft |
| Height | 65.5" |
| Width | 2.2" |
| Depth | 1.9" |
| Weight (Approximate) | 17.20 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
