, PO and Wire.
The AP 430 CR is perfect for high-density deployments that include an industrial-rated IP67 enclosure, designed for either indoor or rugged outdoor deployment with superior Wi-Fi 6 performance and secure WPA3 encryption. Includes six external antennas to deliver a maximum TX power of 23dBm. One ethernet port is included to support up to 5 Gbps and includes one gigabit PoE+ port. Lightning-fast speed crafts an unwavering connectivity executed through a total of 2402 Mbps the 5 GHz band and 574 Mbps delivered on the 2.4 GHz band. Integrated 4x4 radio chains and streams to deliver a secure and seamless network experience. WatchGuard's AP130, AP330, AP430CR, and AP432 requires an active Management License. Select from a Standard or USP Management License to activate and access WatchGuard Cloud. The Management License is required to activate and manage the WatchGuard access points. Requires 6 external antennas (WG9004) sold separately.
| General Information | |
| Manufacturer | WatchGuard Technologies, Inc |
| Manufacturer Part Number | WGA43000000 |
| Manufacturer Website Address | http://www.watchguard.com |
| Brand Name | WatchGuard |

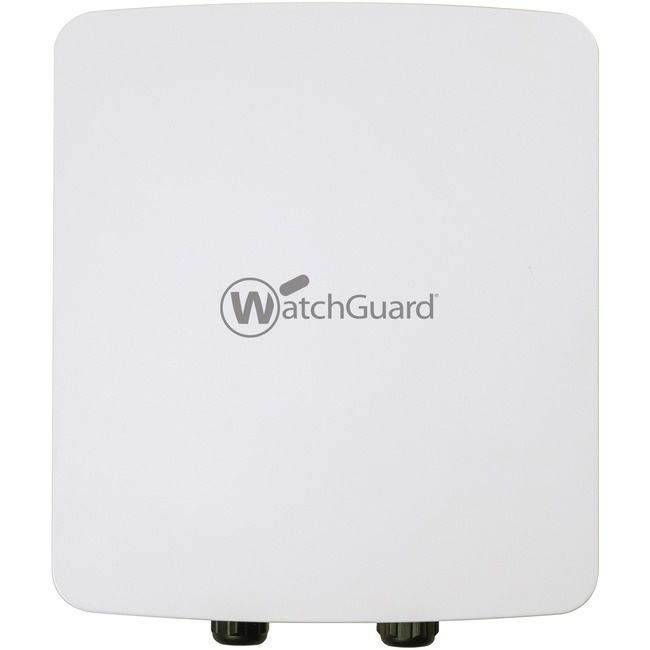

| Product Model | AP430CR |
| Product Name | AP430CR Outdoor Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz |
| Frequency Band | 5 GHz |
| Total Number of Antennas | 6 |
| Number of External Antennas | 6 |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 2.91 Gbit/s |
| Data Encryption | Yes |
| Encryption Standard | AES-CCMP |
| Encryption Standard | WPA2-TKIP |
| Encryption Standard | WPA-TKIP |
| Encryption Standard | WPA3 |
| Ingress Protection (IP) Rating | IP67 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE+ (RJ-45) Ports | Yes |
| PoE PD Port | Yes |
| Power Description | |
| Power Consumption | 19 W |
| Physical Characteristics | |
| Antenna Form Factor | External |
| Height | 10.5" |
| Width | 8.6" |
| Depth | 2.1" |
| Weight (Approximate) | 3.88 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
