ASROCK

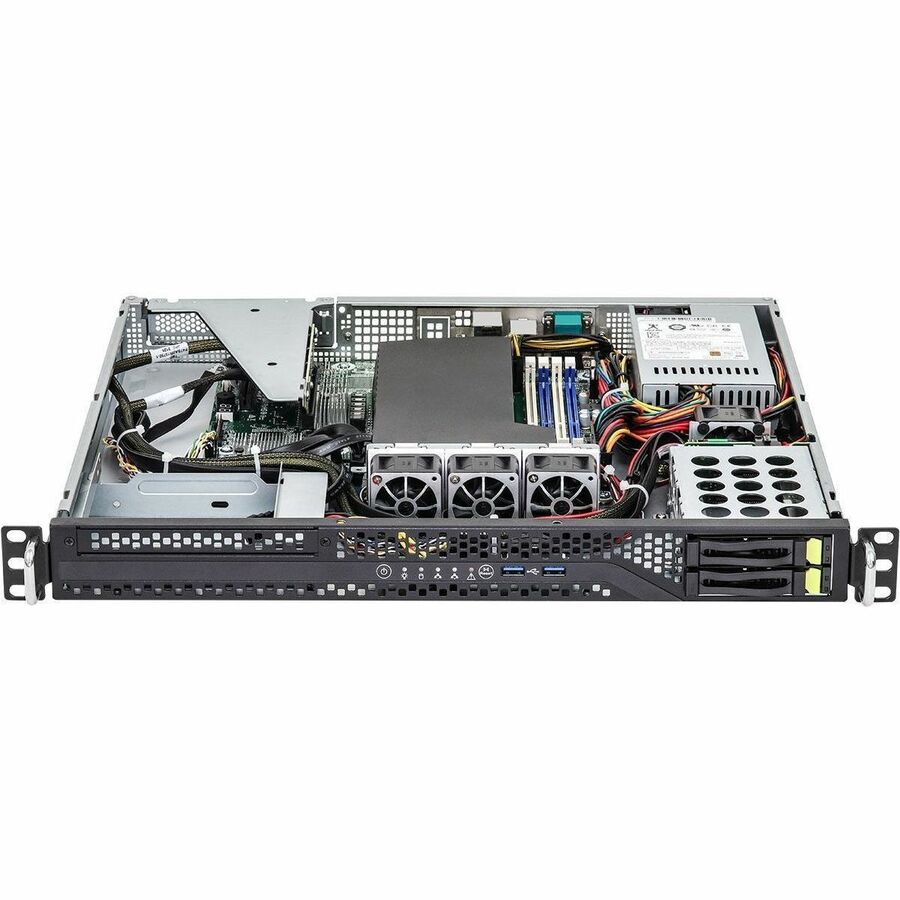

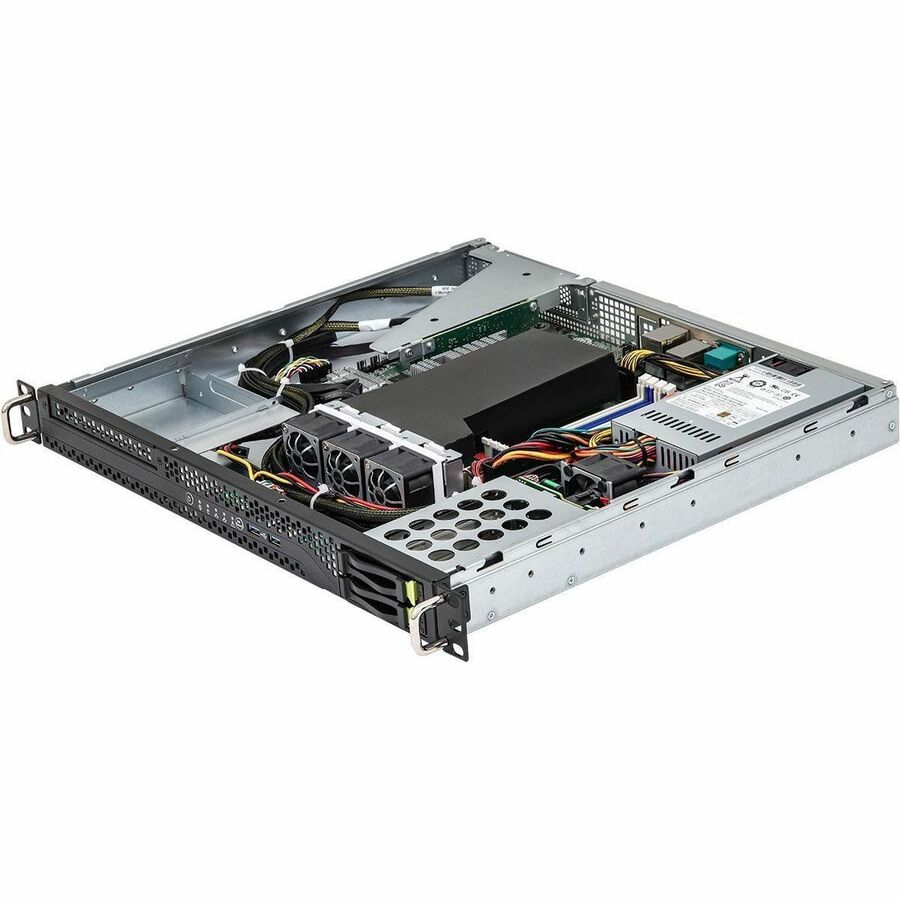

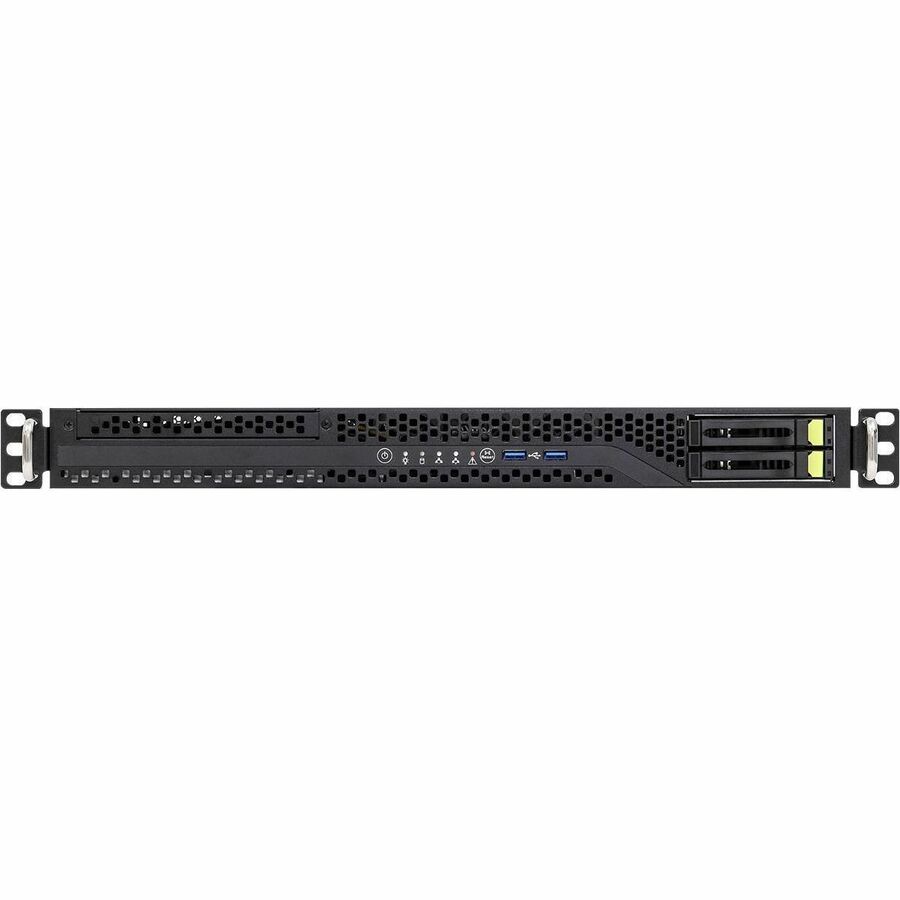

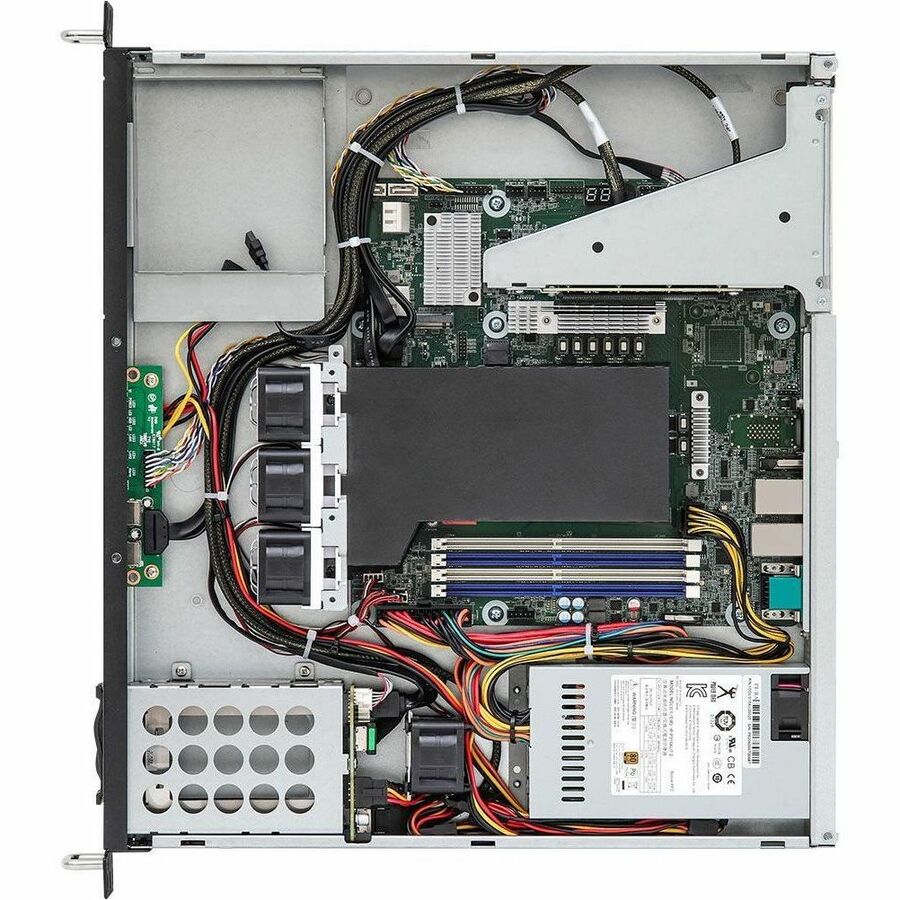

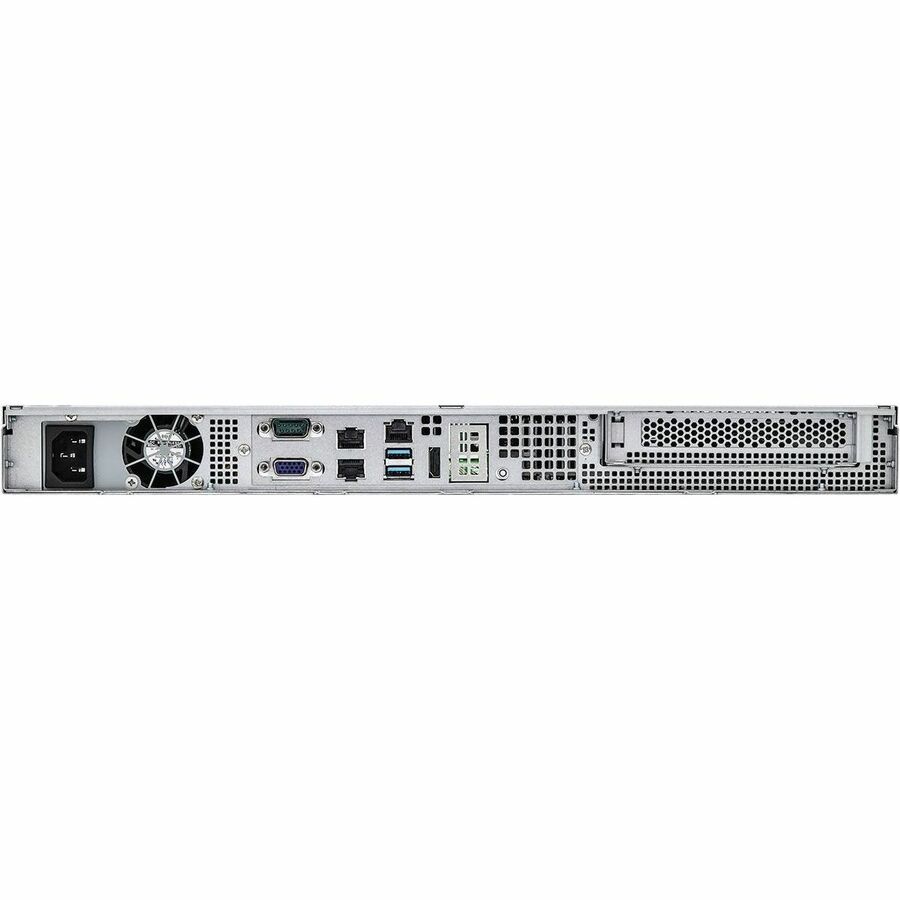

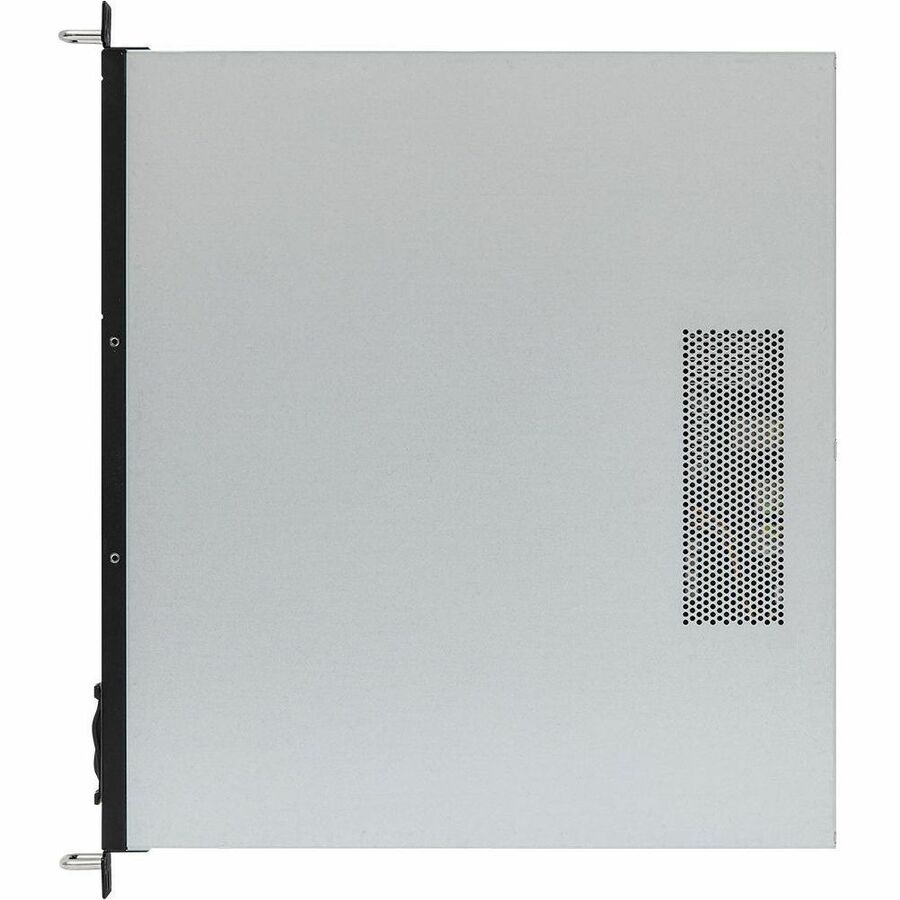

ASRock SV 1U2E-X570 1U Ryzen5000 AM4 PGA1331 X570 2x2.5HS 315W PSU Retail
Mfg Part Number: 1U2E-X570 , Item #: 4529526
Image may not reflect the actual item.
Price: $1,213.64
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Oct 06, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | ASRock Rack Inc |
| Manufacturer Part Number | 1U2E-X570 |
| Manufacturer Website Address | https://www.asrockrack.com/index.asp |
| Brand Name | ASRock Rack |
| Product Model | 1U2E-X570 |
| Product Name | 1U2E-X570 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X570 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 4 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | PCI Express 4.0 x4 |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | NVMe |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 1 |
| Total Number of Expansion Slots | 2 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of VGA Ports | 1 |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 315 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 15.5" |
| Depth | 16.9" |
