Elo TouchSystems E344260 ET4363L-2UWA-1-MT-ZB-GY-G ELO 4363L 43IN WIDE LCD OPEN FRAME
Mfg Part Number: E344260 , Item #: 4529418
, PO and Wire.

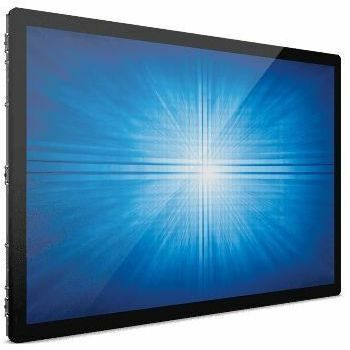

4363L 43-inch Full HD Open-Frame | The perfect touchscreen for any enclosure.
Elo's 4363L 43-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and way finding solutions, Elo's commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant,interactive TouchPro PCAP display.
The 4363L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 4363L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo's touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Make your digital transformation faster,and more affordable.
Elo Essential Edge™ for Android offers everything you need to build and operate interactive solutions for your business.
The Elo Back pack brings computing power that scales.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine purpose-built to fit in compact spaces. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E344260 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Model | 4363L |
| Product Name | 4363L 42.5-inch LCD Open-Frame Touchscreen |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 43" |
| Viewable Screen Size | 42.5" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Flush Mount |
| Backlight Technology | LED |
| HDCP Supported | Yes |
| Features | Edge-to-Edge Glass Design |
| Features | Anti-glare |
| Features | On-screen Display (OSD) |
| Features | Ambient Light Sensor |
| Horizontal Frequency | 31.50 kHz to 80 kHz |
| Vertical Frequency | 47 Hz to 63 Hz |
| Operation Hours | 24 Hours/7 Days |
| Ingress Protection (IP) Rating | IP65 |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 4,000:1 |
| Brightness | 450 Nit |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 40 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| USB Type-C | Yes |
| Total Number of HDMI Ports | 2 |
| Power Description | |
| Operating Power Consumption | 44.30 W |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 400 x 400 |
| Product Color | Black |
| Height | 23.1" |
| Width | 39.3" |
| Depth | 2.6" |
| Weight (Approximate) | 37.85 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 7.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Korea E-Standby |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
