ALLIED TELESIS

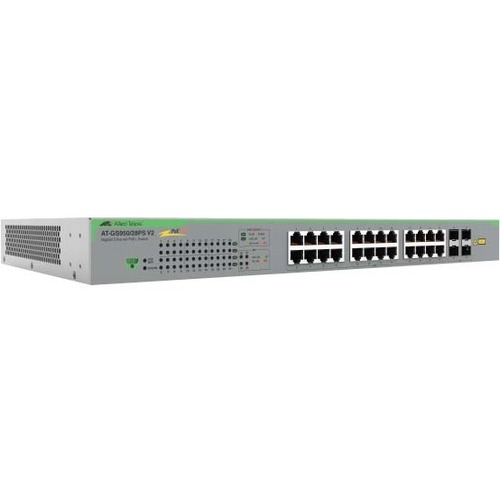

ALLIED TELESIS AT-GS950/28PS V2-10 24PORT 1GB WEBSMART SWITCH 4SFP PORTS V2 GIGABIT WEBSMART SWITCH
Mfg Part Number: AT-GS950/28PS V2-10 , Item #: 4528346
Image may not reflect the actual item.
Price: $786.24
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 08, 2025
No Sales Tax except these states
, PO and Wire.
The Allied Telesis GS950/28PS V2 Gigabit PoE+ WebSmart switch features 24 10/100/1000T ports and four SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other PoE powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. The GS950/28PS V2 is the ideal cost-effective solution for small businesses, classrooms, larger retail stores, healthcare clinics and spas.
Main Specification
| General Information | |
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-GS950/28PS V2-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Brand Name | Allied Telesis |
| Product Series | GS950 V2 |
| Product Model | GS950/28PS V2 |
| Product Name | GS950/28PS V2 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 100/1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3i |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1Q |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 185 W |
| Power Source | Power Supply |
| Power Consumption | 95 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Desktop |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 9.8" |
| Weight (Approximate) | 8.16 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Modules
ALLIED TELESIS
(AT-SPBD20-14/I)
Allied Telesis AT SPBD20-14/I - SFP (mini-GBIC) transceiver module - GigE - 1000Base-LX, 1000Base-BiDi - up to 12.4 miles - 1490 (TX) / 1310 (RX) nm
Allied Telesis AT SPBD20-14/I - SFP (mini-GBIC) transceiver module - GigE - 1000Base-LX, 1000Base-BiDi - up to 12.4 miles - 1490 (TX) / 1310 (RX) nm
$641.88
ALLIED TELESIS
(AT-SPBD40-13/I)
Allied Telesis AT SPBD40-13/I - SFP (mini-GBIC) transceiver module - GigE - 1000Base-BiDi - LC single-mode - up to 24.9 miles - 1310 (TX) / 1490 (RX) nm
Allied Telesis AT SPBD40-13/I - SFP (mini-GBIC) transceiver module - GigE - 1000Base-BiDi - LC single-mode - up to 24.9 miles - 1310 (TX) / 1490 (RX) nm
$701.19
ALLIED TELESIS
(AT-SPBD40-14/I)
Allied Telesis AT SPBD40-14/I - SFP (mini-GBIC) transceiver module - GigE - 1000Base-BiDi - LC single-mode - up to 24.9 miles - 1490 (TX) / 1310 (RX) nm
Allied Telesis AT SPBD40-14/I - SFP (mini-GBIC) transceiver module - GigE - 1000Base-BiDi - LC single-mode - up to 24.9 miles - 1490 (TX) / 1310 (RX) nm
$772.91
