GAMDIAS KRATOS P1A-750G 750W 80 PLUS Gold ATX12V v2.4 Power Supply w/ Active PFC
Mfg Part Number: KRATOS P1A-750G , Item #: 4510049
, PO and Wire.

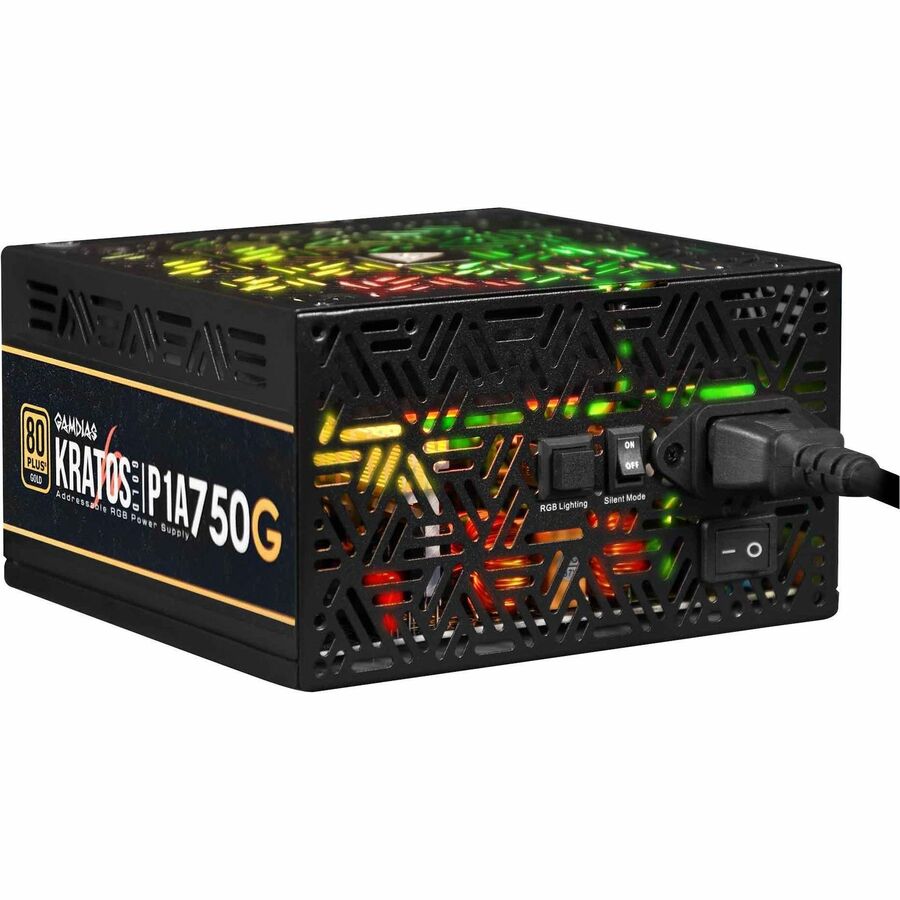

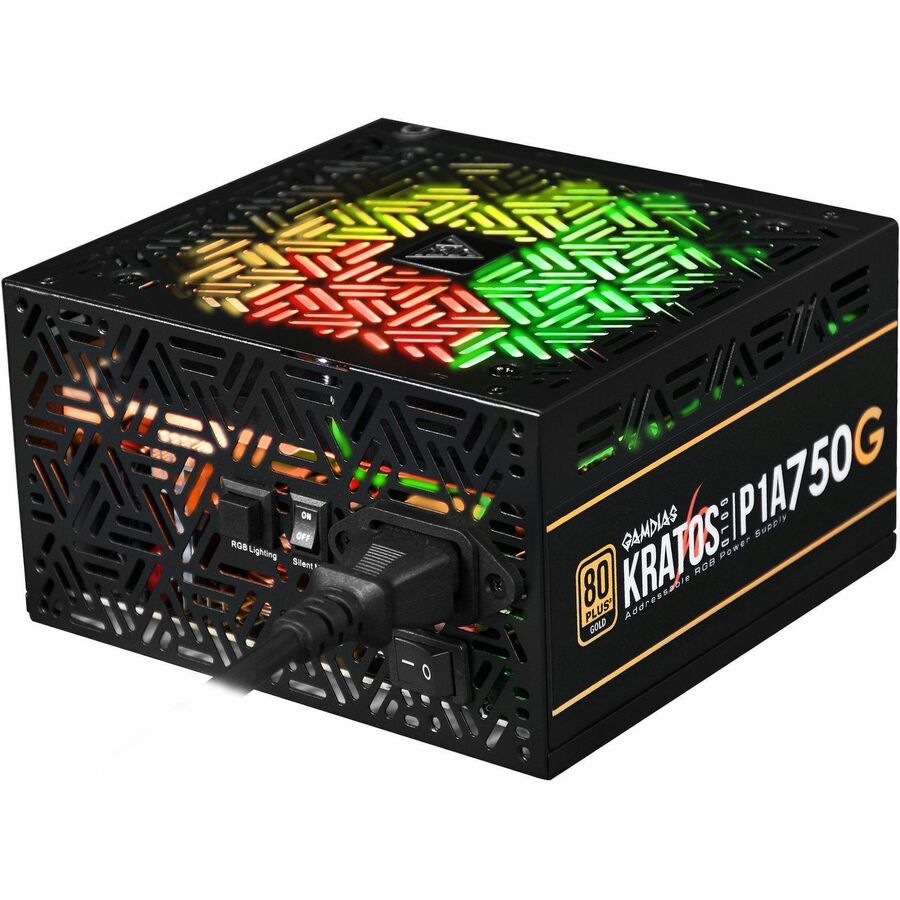

The KRATOS P1A-750G is an ARGB power supply unit built to stand out, last, and perform. Meeting the 80 PLUS Gold certification, the unit is able to supply steady voltage while being efficient and perfectly silent.
80 PLUS GOLD CERTIFIED
This certification guarantees that the KRATOS P1A-750 is able to operate at 90% efficiency, and is able to offer steady voltage output with DC to DC topology design.
CUSTOMIZABLE AND ADAPTIVE

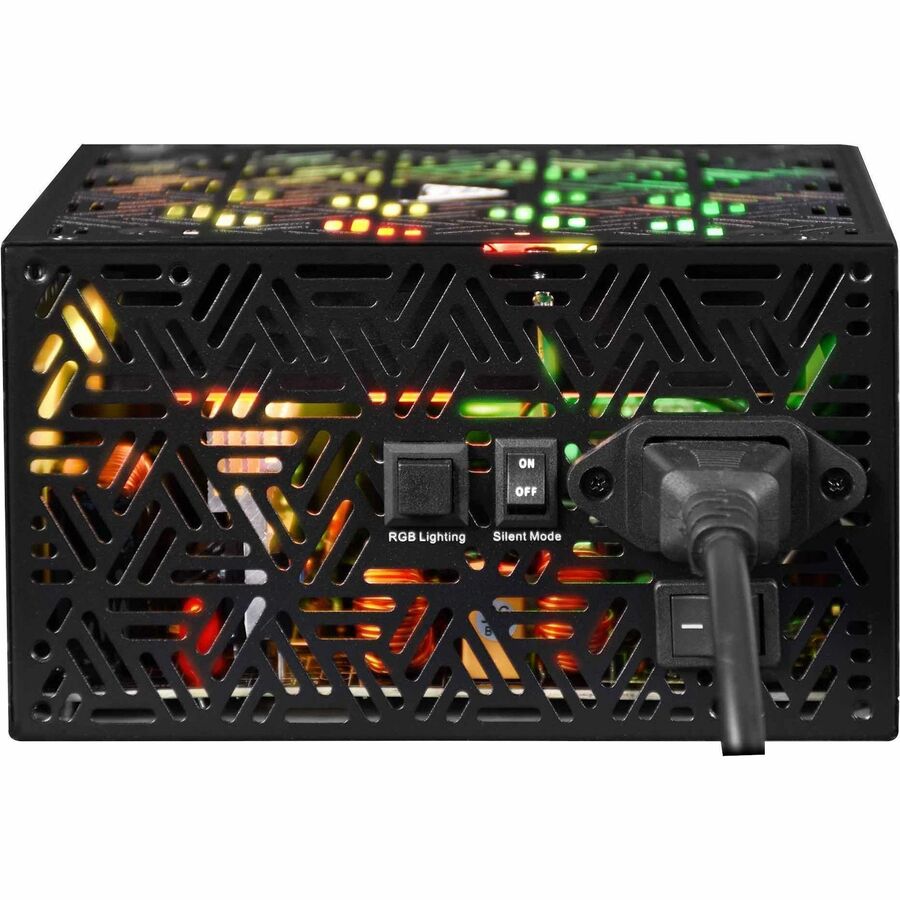

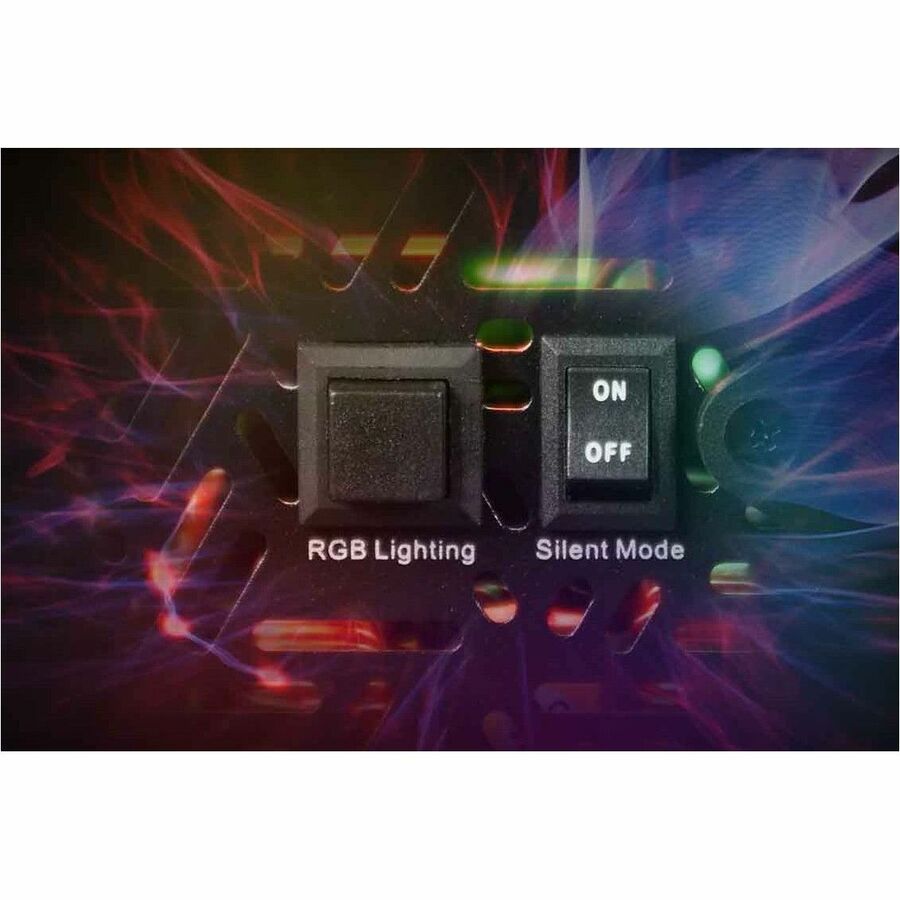

The PSU supports addressable RGB sync via motherboard manufacturer's sync software and also has 30 built-in lighting effects easily accessible with a simple button switch.
ULTRA SILENCE
The PSU is geared with an ultra silence fan with a switch to turn silent mode on and off. Enjoy max heat dissipation or turn on silent mode to enjoy optimized automatic fan speed.

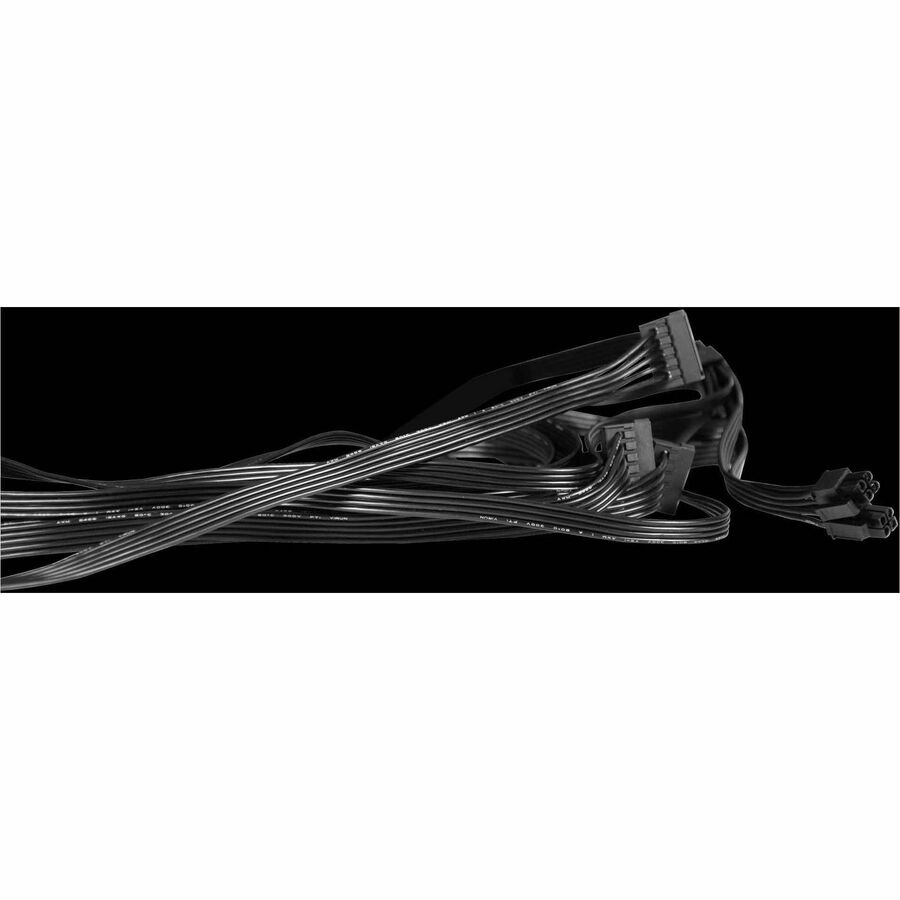

FLAT BLACK CABLES
The stealthy and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.
| General Information | |
| Manufacturer | GAMDIAS |
| Manufacturer Part Number | KRATOS P1A-750G |
| Manufacturer Website Address | http://www.gamdias.com |
| Brand Name | GAMDIAS |
| Product Line | KRATOS |
| Product Model | KRATOS P1A-750G |
| Product Name | KRATOS P1A-750G 750W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V v2.4 |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Protection Type | Over Current |
| Protection Type | Under Voltage |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Protection Type | Over Power |
| Modular | No |
| Features | RGB Lighting |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage Detail | 5 V SB @ 2.5 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 12 V DC @ 62.5 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Power | 750 W |
| Input Frequency | 63Hz |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of 4-pin Molex Power Connectors | 3 |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Gold |
