Mean Well

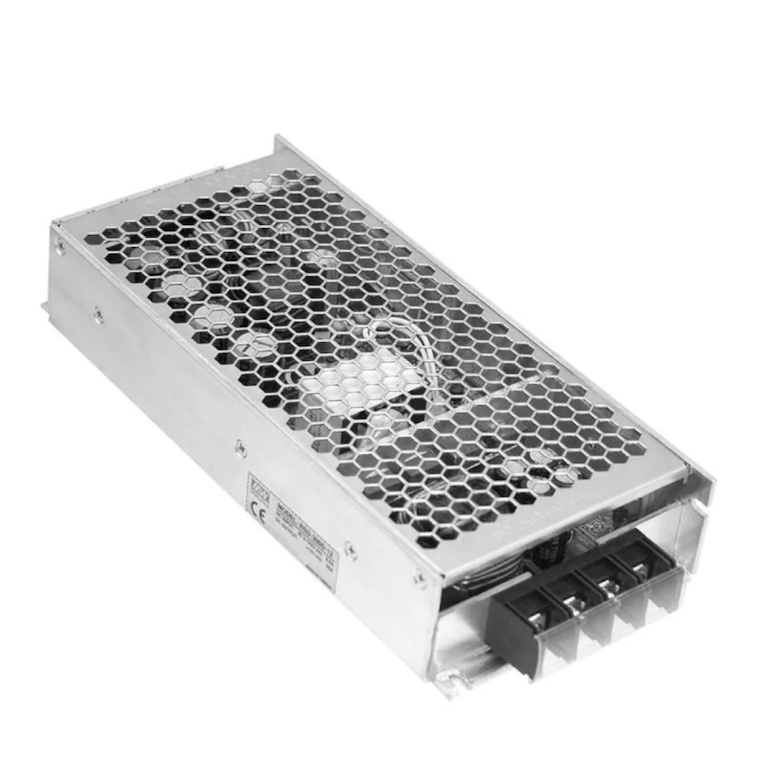

Mean Well RSD-300F-48 IIsolated DC/DC Converters - Chassis Mount 43.2-100.8VDC O/P +48V6.3A
Mfg Part Number: RSD-300F-48 , Item #: 4510046
Image may not reflect the actual item.
, PO and Wire.
Mounting Style: Chassis
Number of Outputs: 1 Output
Output Power: 300 W
Input Voltage, Nominal: 72 V
Input Voltage - Min: 50.4 V
Input Voltage - Max: 93.6 V
Output Voltage-Channel 1: 48 V
Output Current-Channel 1: 6.3 A
Isolation Voltage: 4 kV
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Package / Case: -
Length: 216 mm
Width: 96.5 mm
Height: 40 mm
If you need accessory information for this product, please use our Online Contact Us Form , our industrial sales team is here to help you find the accessories.
