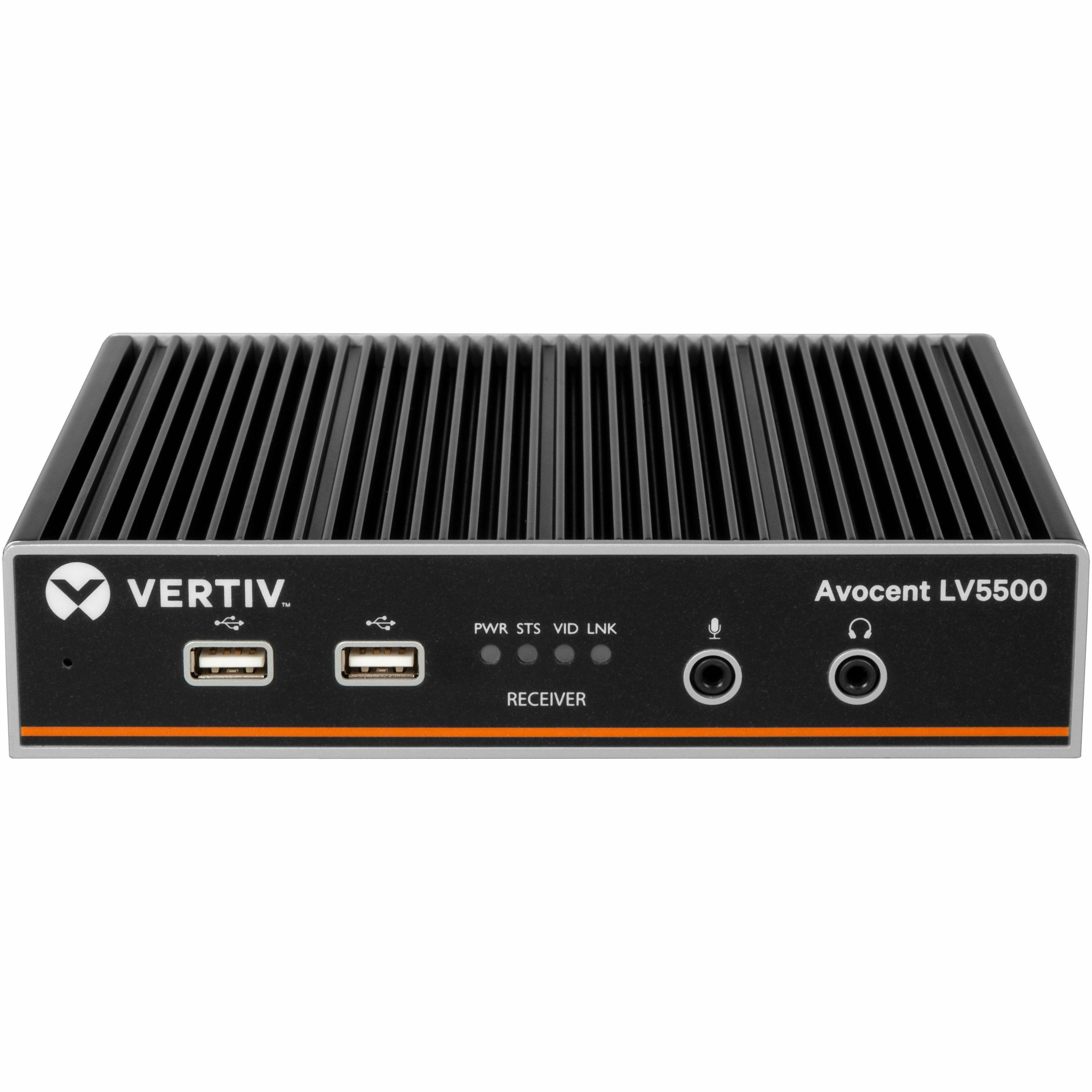

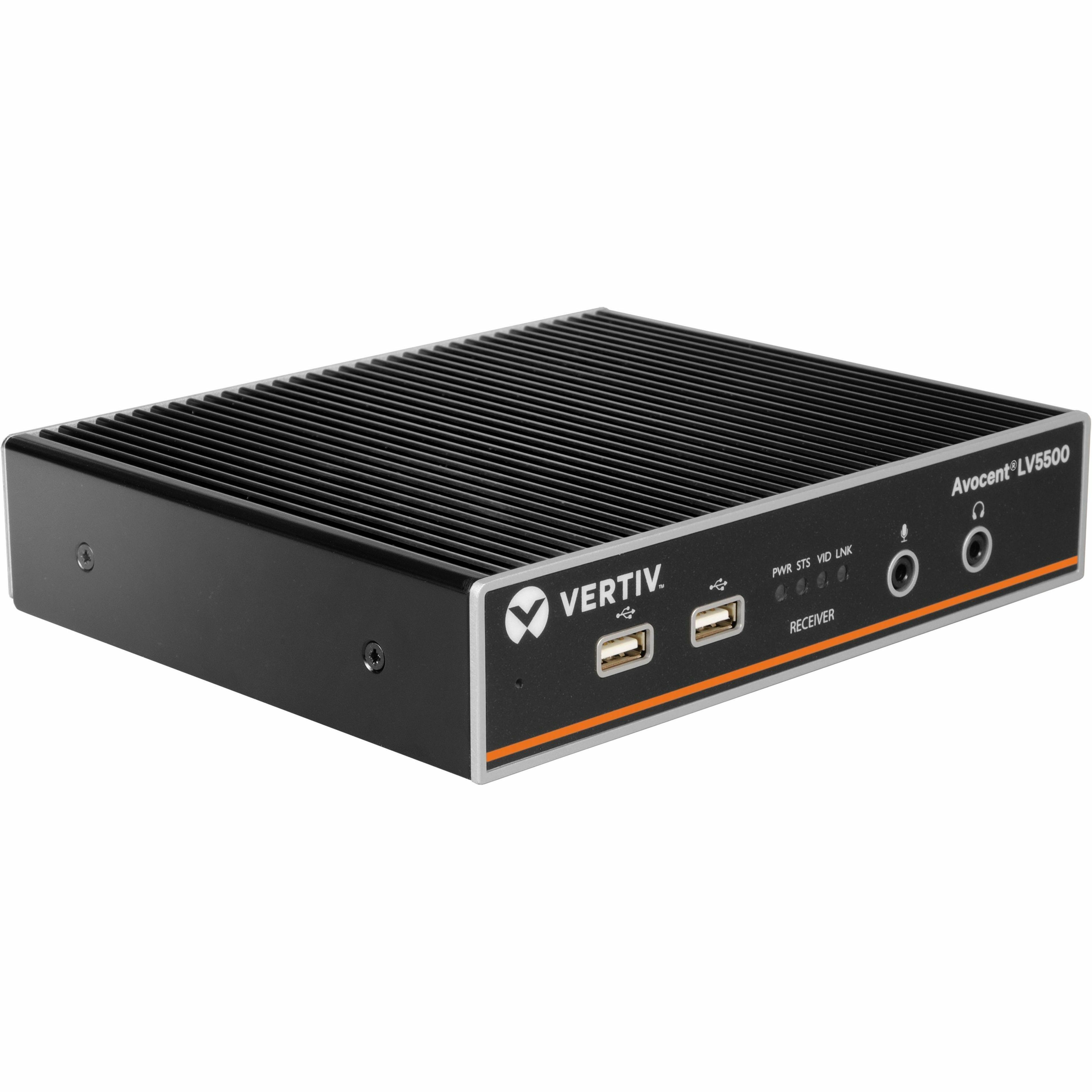

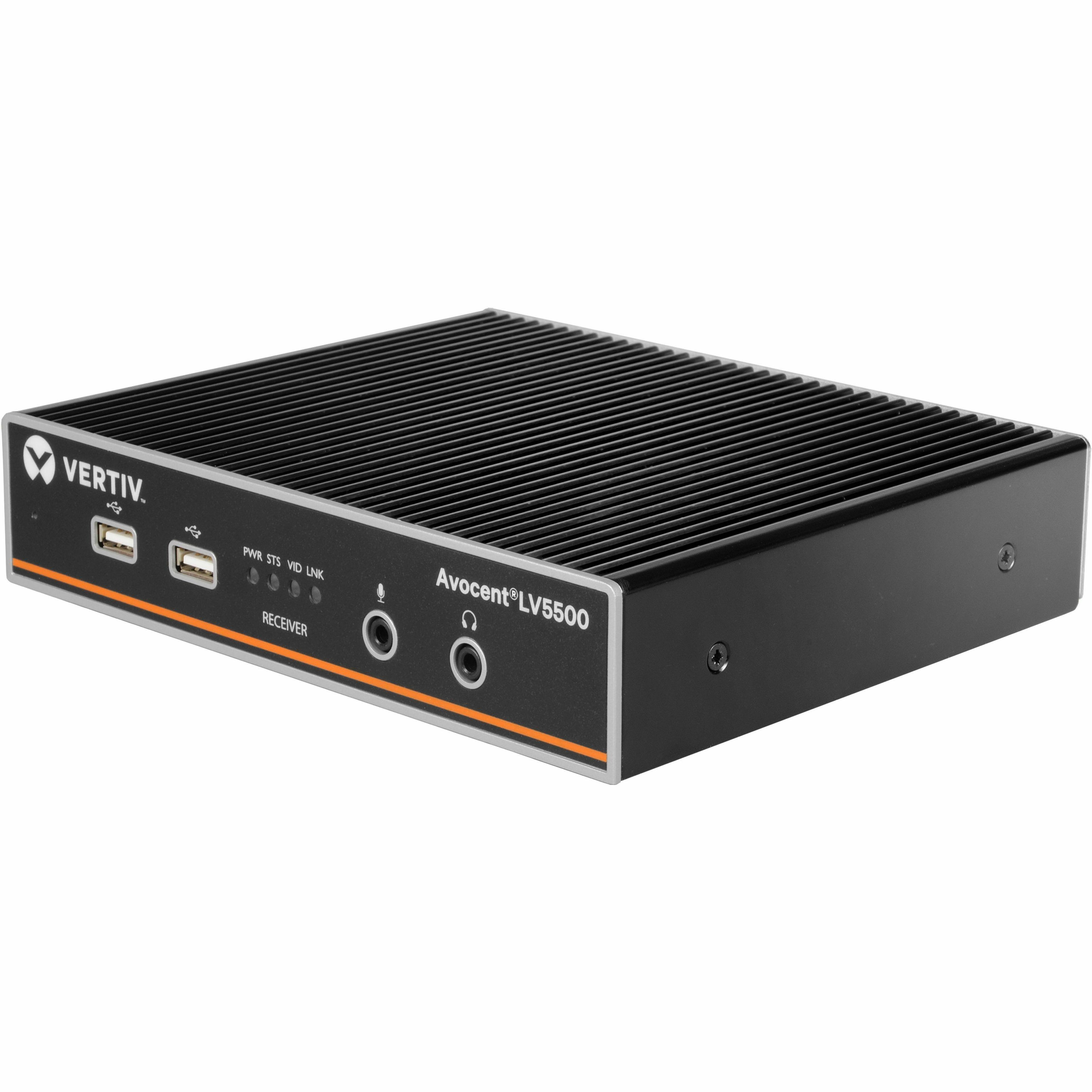

VERTIV LV5500R-400 SINGLE EXTENDER DP 4K60 USB2.0

The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	LV5500R-400
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv AVOCENT
Product Line	LongView
Product Series	5000
Product Model	LV5500R
Product Name	LV5500 High-Performance KVM Extender | Receiver
Packaged Quantity	1
Product Type	KVM Extender Receiver
Technical Information
Connectivity Technology	Wired
KVM Technology	Digital
Number of Computers Supported	1
Number of Local Users Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	13123.36 ft
Device Type	High Performance KVM
Video
Graphic Mode	4K
Maximum Video Resolution	4096 x 2160

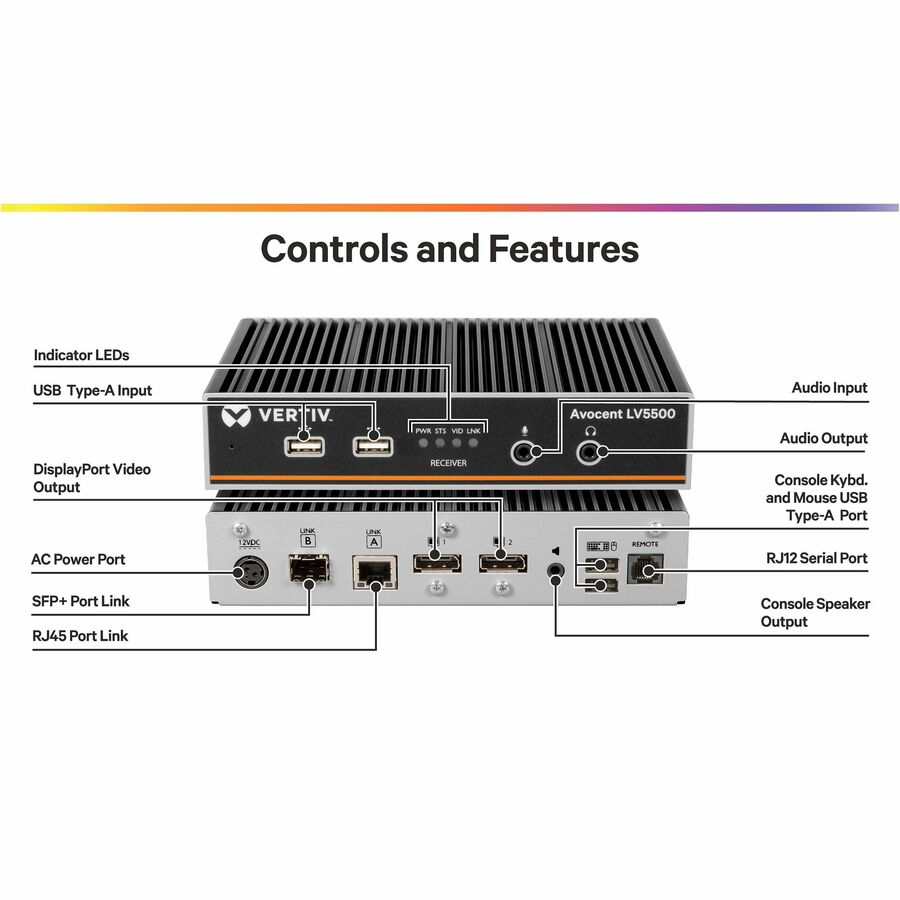

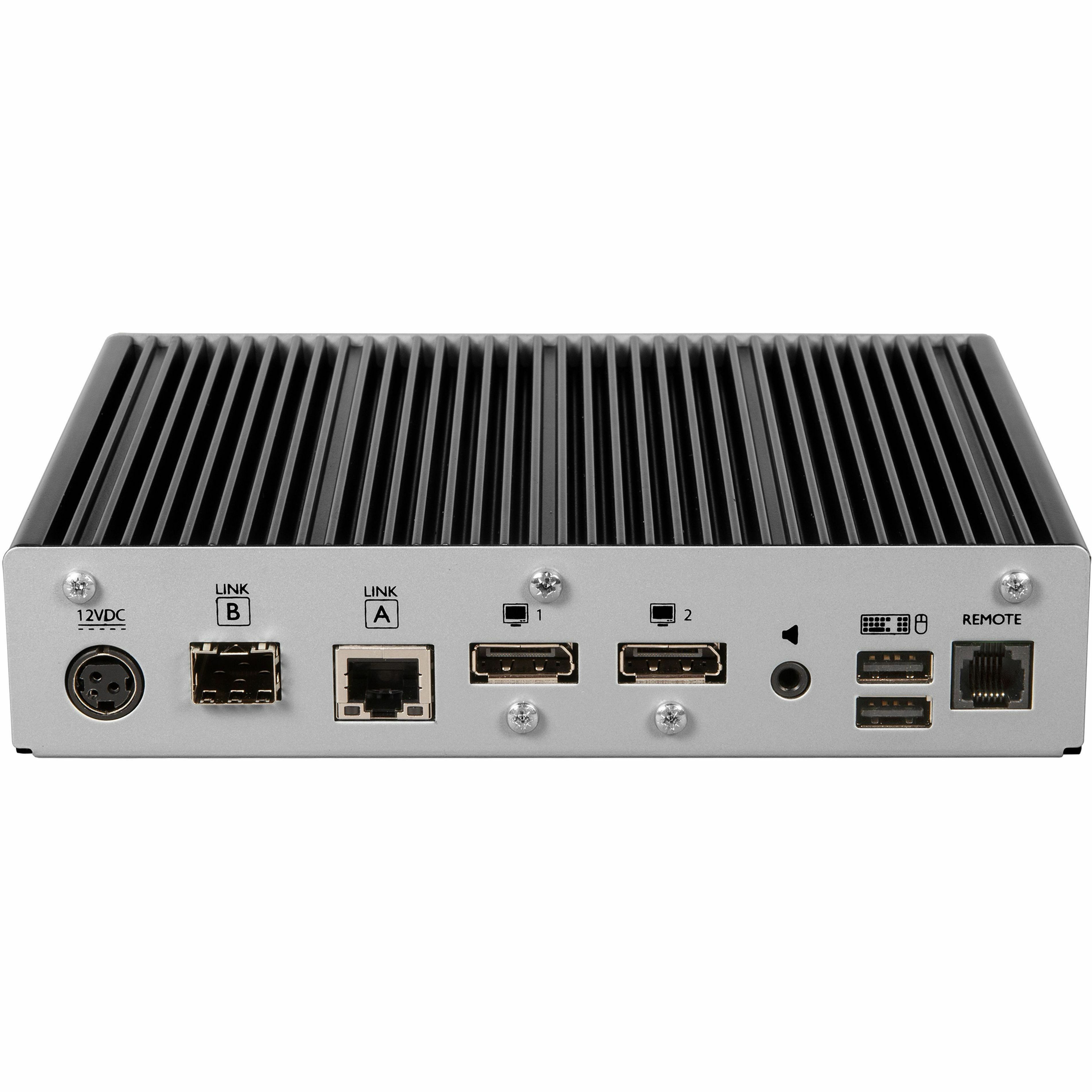

Interfaces/Ports
Network (RJ-45)	Yes
PS/2 Port	No
USB	Yes
Digital Audio/Video	Yes
DVI	No
Headphone	Yes
Microphone	Yes
HDMI	No
VGA	No
DMS-59 Port	No
DisplayPort	Yes
Proprietary Interface	No
Number of HDMI Ports	0
Number of VGA Ports	0
Number of Network (RJ-45) Ports	1
Number of PS/2 Ports	0
Number of USB Ports	2
Number of DVI Ports	0
Number of ST Ports	0
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Input Voltage Range	100-240 VAC
Power Consumption	18 W
Physical Characteristics
Color Family	Black
Product Color	Black
Rack Height	1U
Form Factor	Rack-mountable
Receiver Height	1.54"
Receiver Width	7.32"
Receiver Depth	5.83"
Receiver Weight (Approximate)	2.73 lb
Miscellaneous
Package Contents	LV5500 High-Performance KVM Extender | Receiver 1 x LV5500 Extender Quick Installation Guide 1 x Extender RMK Quick Installation Guide 1 x Compliance/Safety Sheet (See PLM BOM) 1 each 1 x Customer Support/Warranty Card (See PLM BOM) 1 x 3.5mm stereo plug to plug audio cable, 3meter 1 x USB cable, Type A to Type B, 1.8meter 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56 1 x China RoHS Declaration 1 x Vertiv document wallet
Platform Supported	Linux
Platform Supported	Unix
Platform Supported	Sun
Platform Supported	PC
Platform Supported	Mac
Environmentally Friendly	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)
Country of Origin	United Kingdom
TAA Compliant	Yes
Warranty
Limited Warranty	2 Year
