VERTIV
VERTIV LV5520T-400 DUAL DP EXTENDER 4K60 USB2.0
Mfg Part Number: LV5520T-400 , Item #: 4506143
Image may not reflect the actual item.
Price: $1,689.98
+ Free Shipping
Quantity:
In Stock: 239
Last Updated: Nov 23, 2025
No Sales Tax except these states
, PO and Wire.

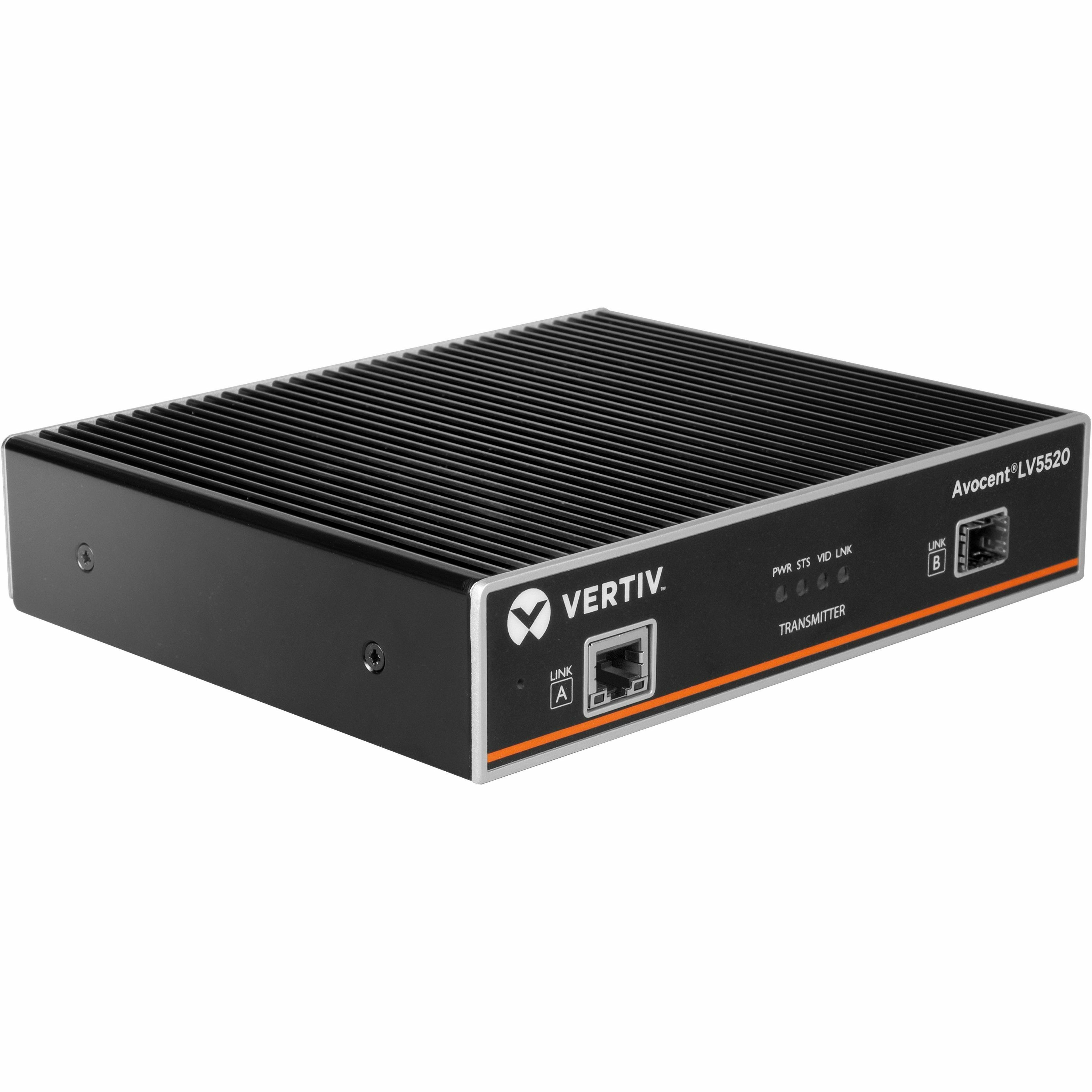

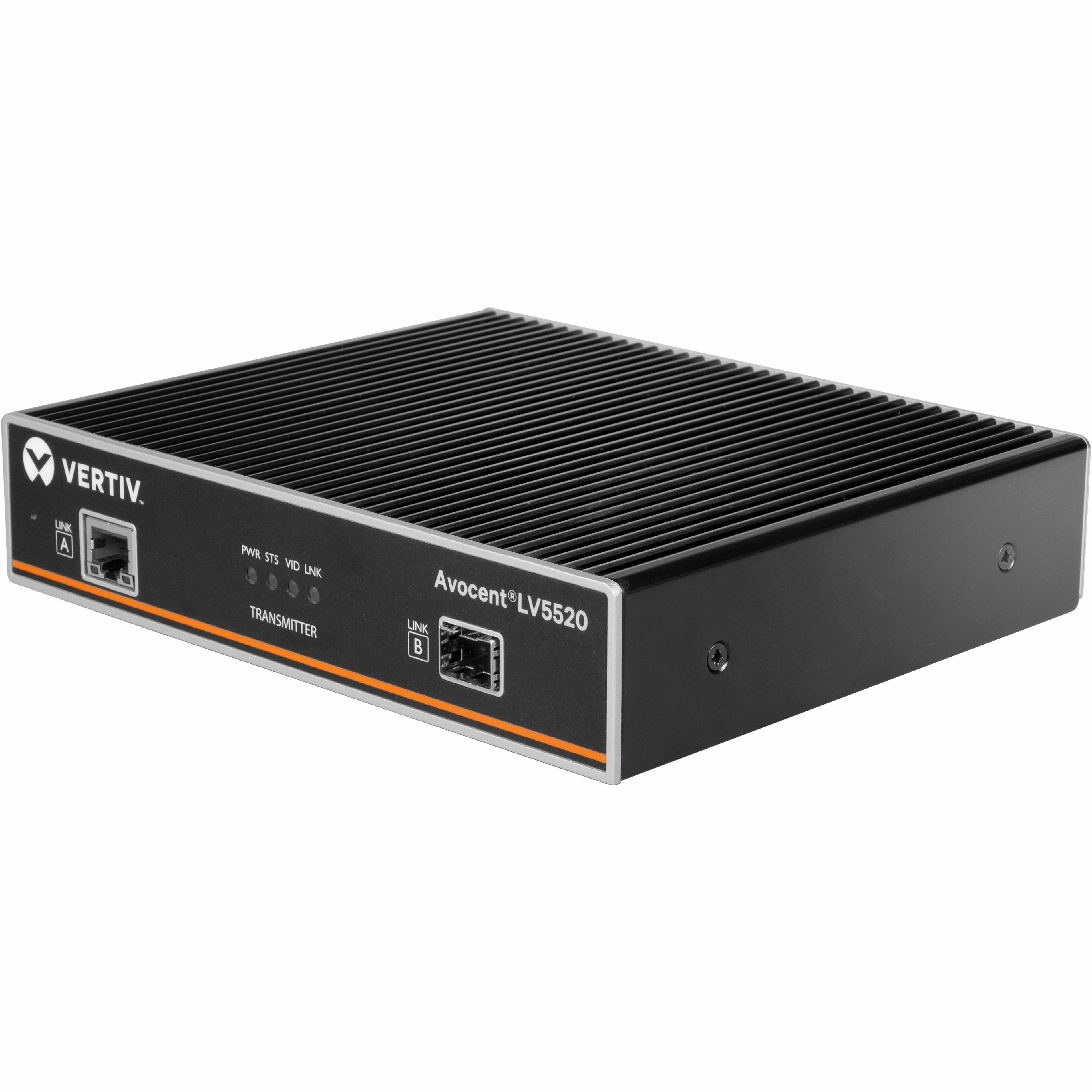

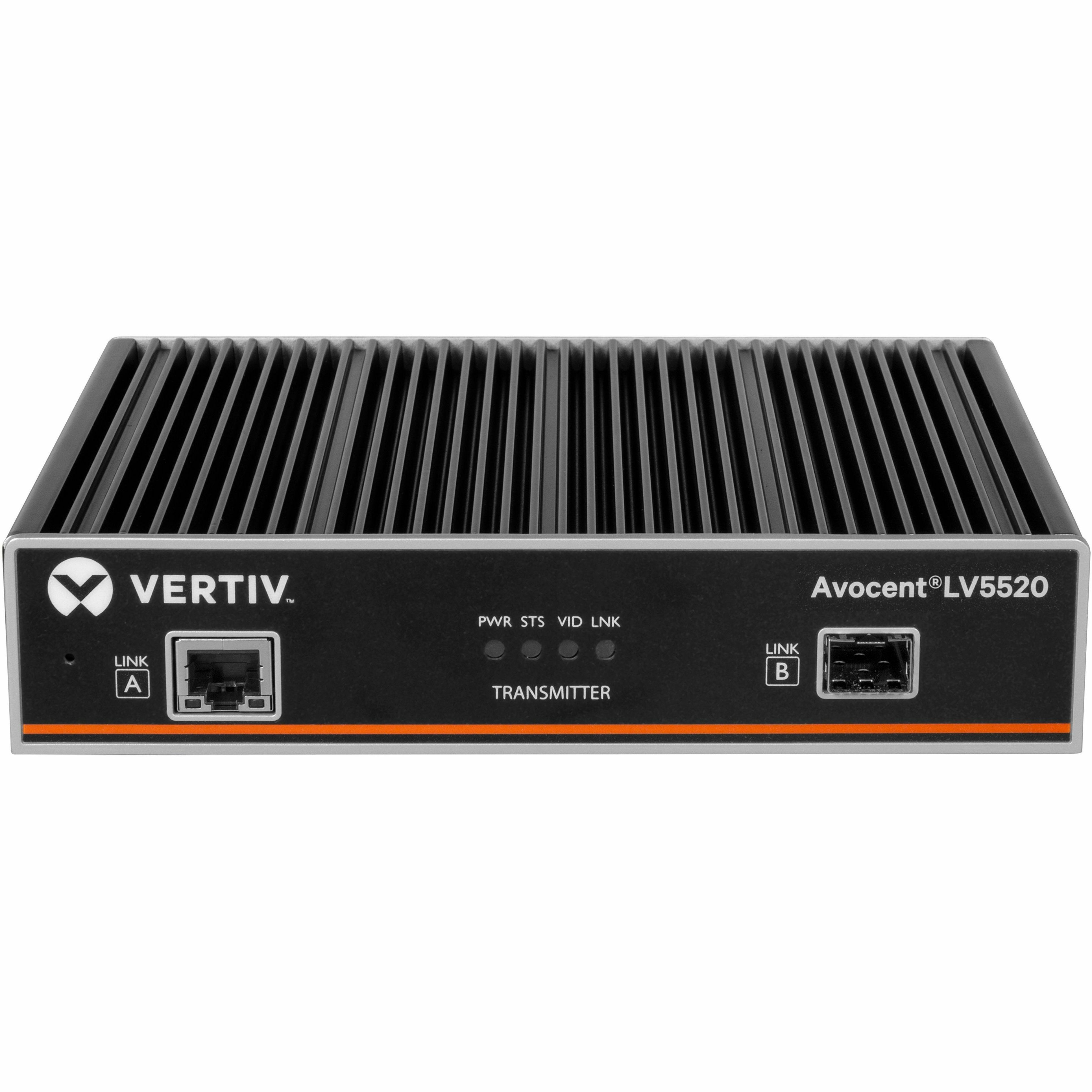

The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | LV5520T-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv AVOCENT |
| Product Line | LongView |
| Product Series | 5000 |
| Product Model | LV5520T |
| Product Name | LV5520 High-Performance KVM Extender | Transmitter |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Digital |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Maximum Operating Distance | 13123.36 ft |
| Device Type | High Performance KVM |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |

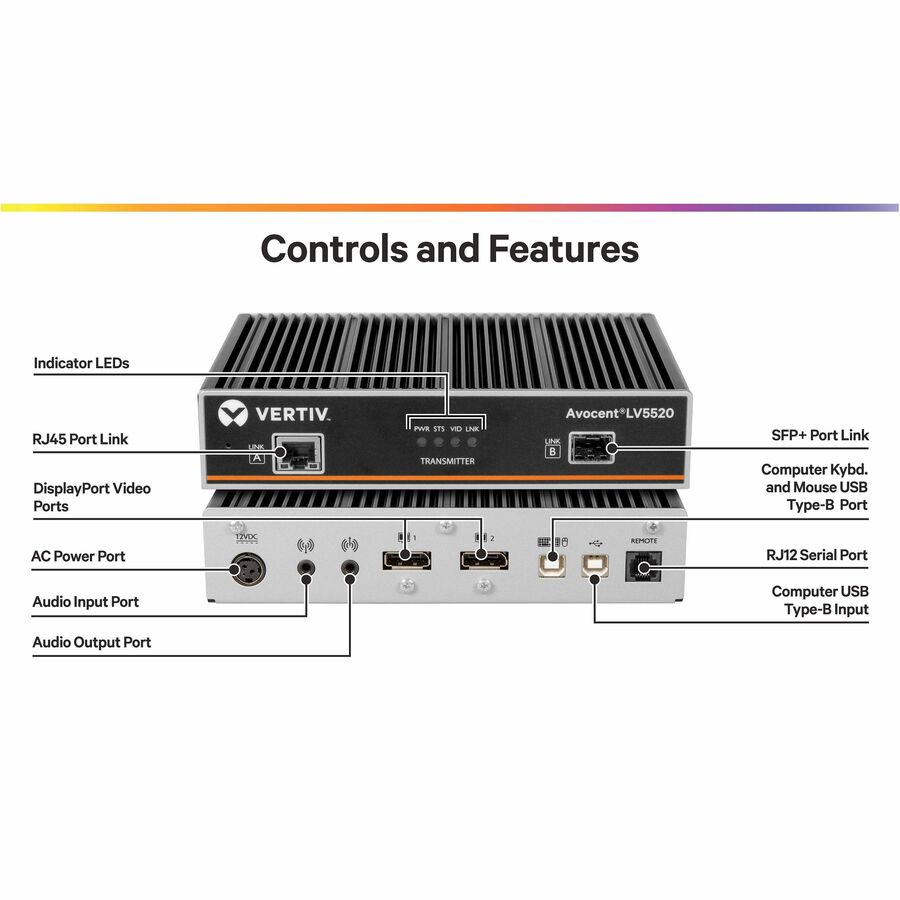

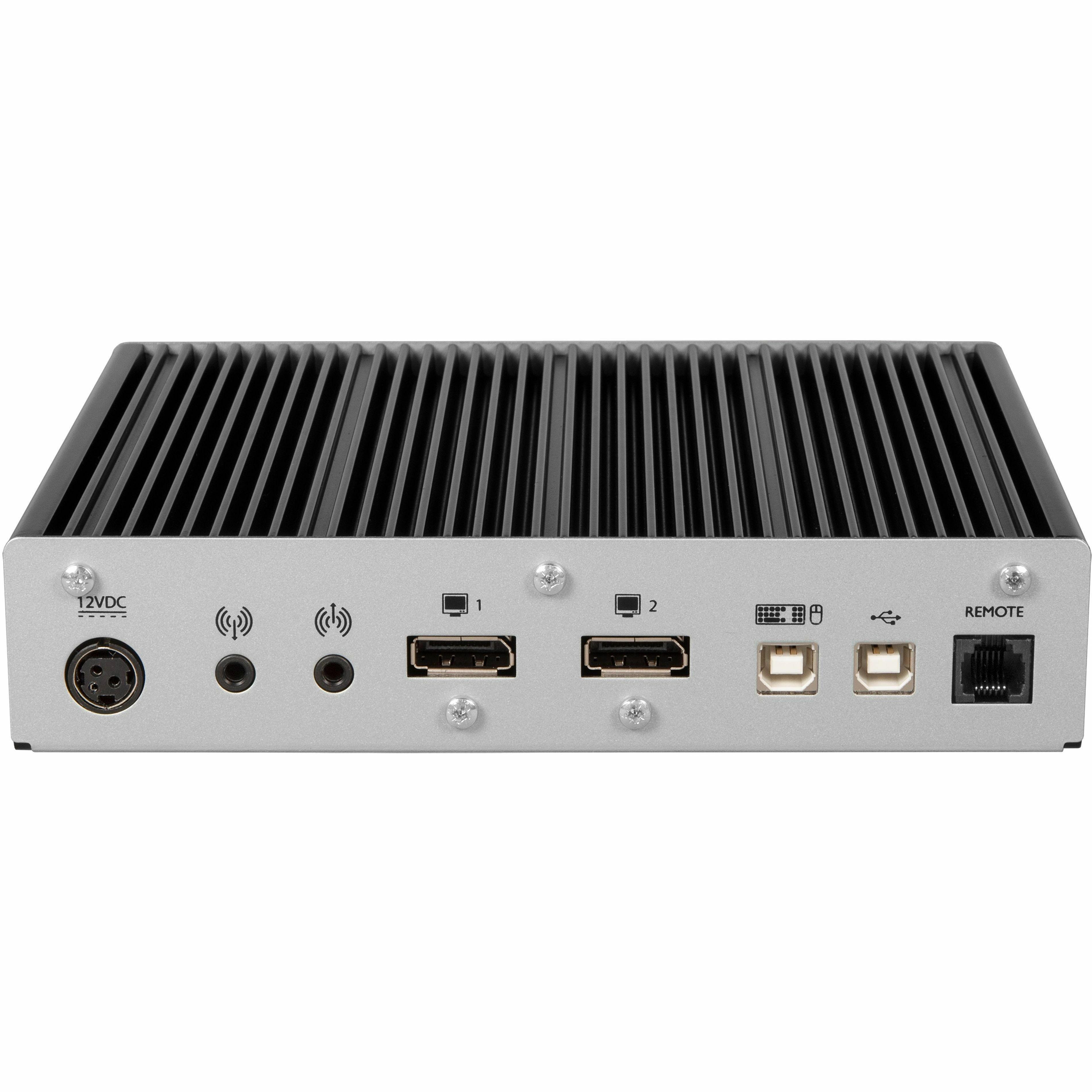

| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | No |
| USB | Yes |
| Digital Audio/Video | Yes |
| DVI | No |
| Headphone | Yes |
| Microphone | Yes |
| HDMI | No |
| VGA | No |
| DMS-59 Port | No |
| DisplayPort | Yes |
| Proprietary Interface | No |
| Number of HDMI Ports | 0 |
| Number of VGA Ports | 0 |
| Number of Network (RJ-45) Ports | 1 |
| Number of PS/2 Ports | 0 |
| Number of USB Ports | 2 |
| Number of DVI Ports | 0 |
| Number of ST Ports | 0 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage Range | 100-240 VAC |
| Power Consumption | 18 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.54" |
| Transmitter Width | 7.32" |
| Transmitter Depth | 5.83" |
| Transmitter Weight (Approximate) | 2.84 lb |
| Miscellaneous | |

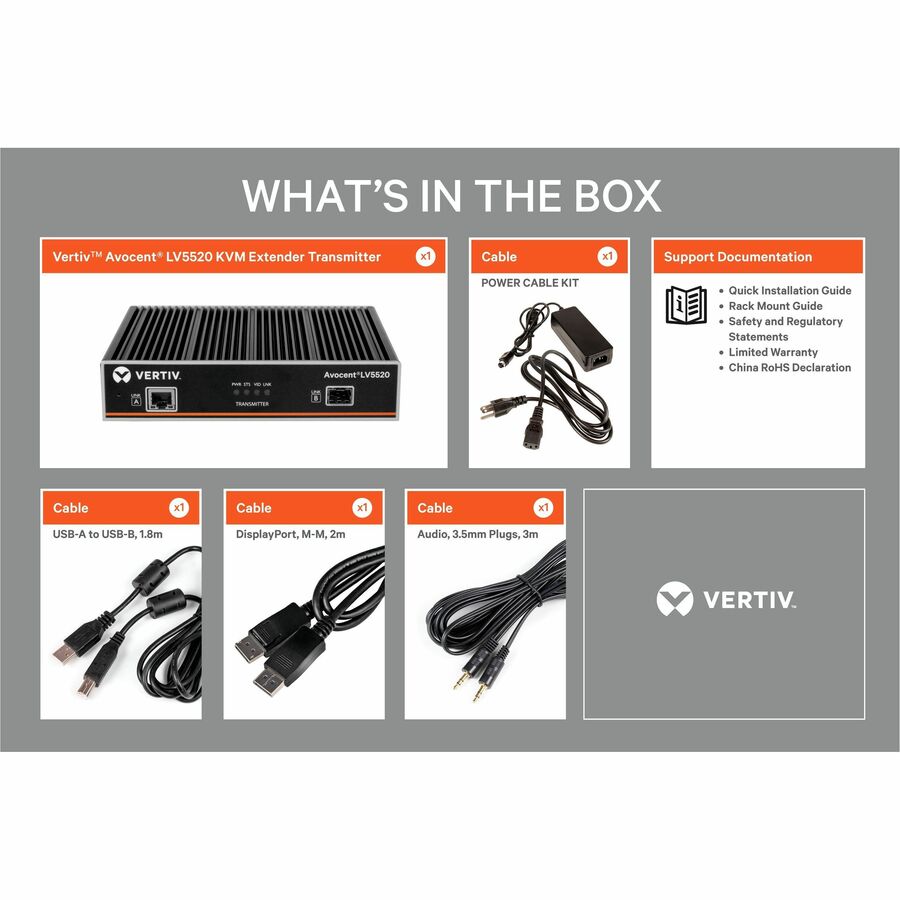

| Package Contents |
|
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Platform Supported | Unix |
| Platform Supported | Sun |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
