TRIPP LITE U444-2DP-MST4K6 BLK USB C ADAPTER DUAL-DISPLAY 4K 60HZ DISP PORT 8K HDR 4:4:4 BLK
Mfg Part Number: U444-2DP-MST4K6 , Item #: 4502684
, PO and Wire.

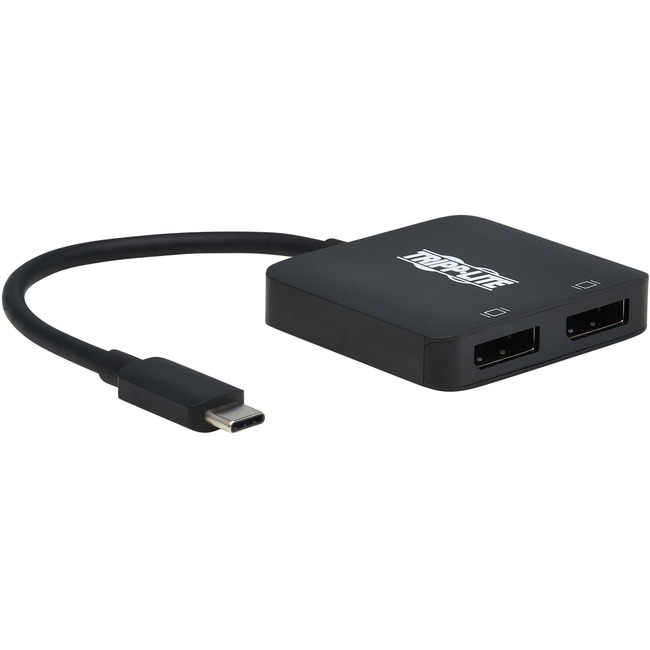

SB-C to DisplayPort Adapter Connects 8K or 4K DisplayPort Monitors to Your USB-C Device
This USB adapter connects one 8K or two 4K DisplayPort monitors, projectors and/or televisions to the USB-C or Thunderbolt 3 port on your MacBook Pro, Chromebook or Windows laptop. It's an ideal connector for creating video walls, giving video presentations in conference rooms and classrooms, editing multiple documents or high-definition video on a larger screen, or streaming video for digital signage in crystal-clear 8K or 4K.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to DisplayPort monitors, televisions or projectors without installing special software drivers. Note: To achieve 8K/4K resolution, the source device should support DP 1.4 Alt Mode. When a monitor is connected to a DP 1.2 Alt Mode source, the corresponding resolution will be decreased due to bandwidth limitation.
DisplayPort SST and MST Modes Allow Connection of Multiple Displays
By connecting the USB-C adapter to a source that supports DisplayPort Single-Stream Transport (SST) or Multi-Stream Transport (MST) mode, you may connect up to two displays simultaneously. This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall, depending on your operating system.
Enjoy the Clarity of 8K/4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio
This USB to DisplayPort adapter supports connection of one 8K/30 Hz monitor or two 4K/60 Hz monitors with 7.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The adapter requires no software or external power. Just connect the USB-C cable to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode, and connect the DisplayPort outputs to your displays with user-provided cables (such as Tripp Lite's P580-Series cables).
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U4442DPMST4K6 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | U444-2DP-MST4K6 |
| Product Name | U444-2DP-MST4K6 USB-C Adapter, Dual Display, Black |
| Product Type | A/V Adapter |
| Technical Information | |
| Adapter Type | DisplayPort/USB-C |
| Connector Type on First End | USB 3.1 (Gen 2) Type C - Male |
| Connector on First End Details | 1 x Type C USB 3.1 (Gen 2) Powered USB Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Female |
| Connector on Second End Details | 2 x DisplayPort DisplayPort 1.4 Digital Audio/Video Female |
| Connector Plating | Nickel |
| Maximum Resolution Supported | 7680 x 4320 |
| Features | Plug and Play |
| Features | HDCP 2.2 |
| Features | Multi-Stream Transport (MST) Support |
| Features | HDCP 1.4 |
| Features | Single Stream Transport (SST) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Polycarbonate |
| Product Material | ABS |
| Product Material | Thermoplastic Elastomers (TPE) |
| Height | 0.5" |
| Width | 2.2" |
| Depth | 2" |
| Length | 4.7" |
| Weight (Approximate) | 1.41 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
