STARTECH
STARTECH USB31CCSLKV1M 3FT 1M SIDE SCREW LCKNG USB C CBL 10GBPS
Mfg Part Number: USB31CCSLKV1M , Item #: 4501752
, PO and Wire.
This side screw locking USB-C 3.2/3.1 Gen 2 10Gbps cable lets you connect your USB Type-C devices for syncing, charging, and powering your devices.
The USB-C cable is also compatible with Thunderbolt 3 ports, allowing you to connect and charge your USB-C devices using your Thunderbolt 3 laptop.
Reliable Connection with Screw Locking USB-C

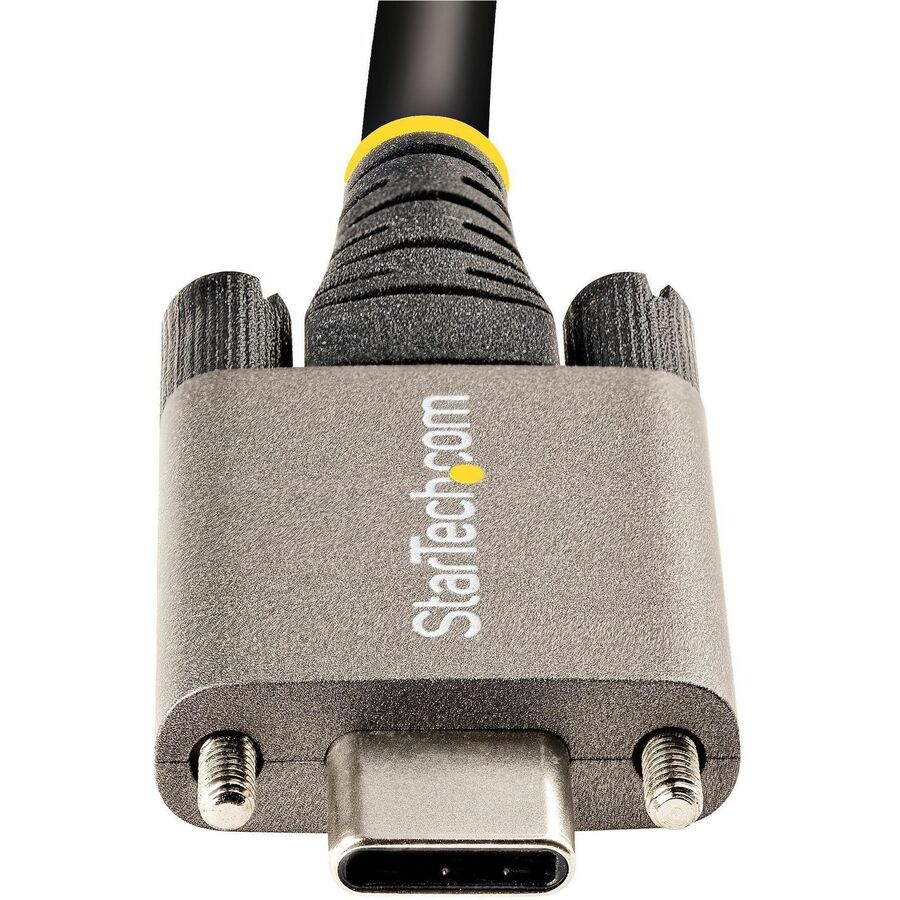

This cable features dual locking screws that can securely connect to your USB-C peripherals and can prevent accidental disconnection from your devices such as external hard drives or docking stations.
The screws are designed to fit all devices that use a standard side screw locking input, such as StarTech.com's DK31C3HPD.
The knurled screws can easily be removed from the cable completely allowing it to be used as a standard USB-C cable if required.
Supports up to 100W (5A) with Power Delivery 3.0

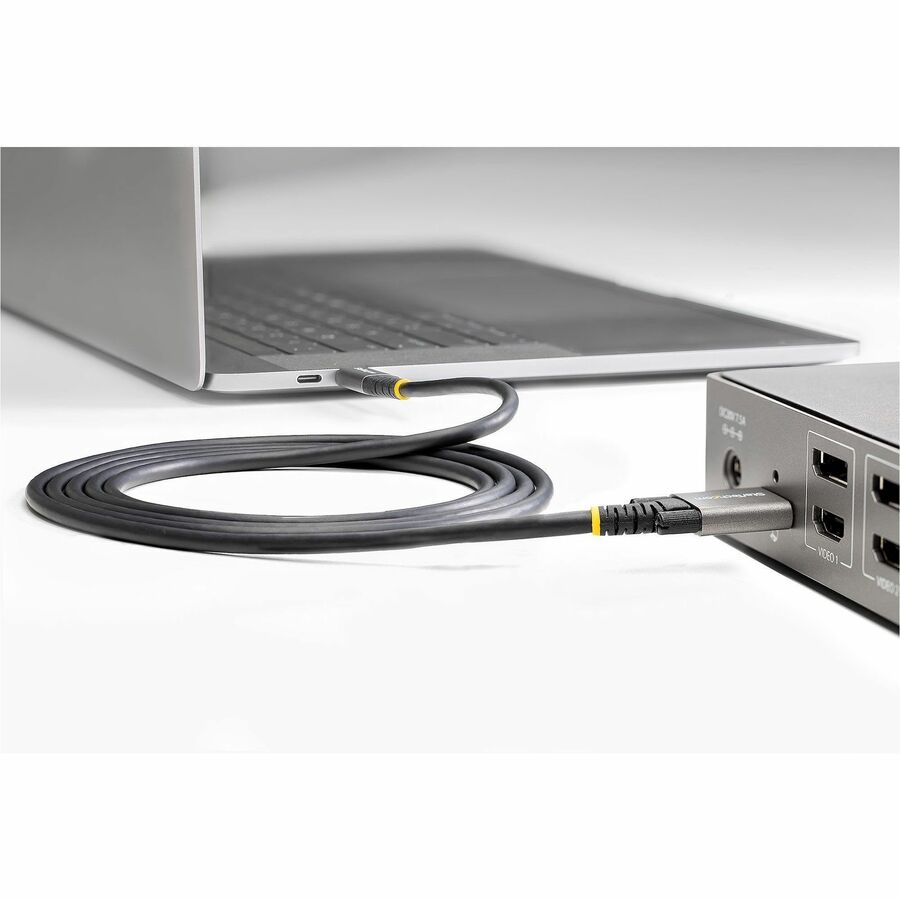

With up to 100W (5A) of power delivery, you can power and charge a USB-C laptop, such as your Apple MacBook or Microsoft Surface Book. Simply connect the cable to your USB-C laptop and to a USB-C wall charger.
Deliver 8K video with DisplayPort 1.4 Alt Mode
The cable supports 8K 30Hz video with DisplayPort 1.4 and is backward compatible to connect your docking station or laptop to a monitor that supports 4K or 1080p resolutions.
Charge your mobile devices
When used with devices that support PD 3.0, this cable charges up to 20V and 5A for a maximum of 100W. It can decrease your charge time and make sure your mobile devices are ready, whenever you need them.
Quality Build
This cable is constructed with durable long-lasting, flexible TPE jacket and strain relief. It has been tested to withstand 4000+ bends. It is built with aluminum-mylar foil with 85% braid coverage and EMI shielding for improved signal integrity.
The USB31CCSLKV1M from StarTech.com is backed by a 2-year warranty for guaranteed reliability.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB31CCSLKV1M |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1m Certified Side Screw Locking USB-C 10 Gbps Cable |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | USB-C |
| Cable Length | 3 ft |
| Connector Type on First End | USB 3.2 (Gen 2) Type C - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 24-pin USB 3.2 (Gen 2) Type C - Male |
| Connector Type on Second End | USB 3.2 (Gen 2) Type C - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 24-pin USB 3.2 (Gen 2) Type C - Male |
| Connector Plating | Nickel |
| Shielding | Yes |
| Device Supported | Notebook |
| Device Supported | Hard Disk Drive Enclosure |
| Device Supported | Monitor |
| Device Supported | Storage Device |
| Device Supported | Wall Charger |
| Device Supported | Mobile Device |
| Device Supported | Hard Drive |
| Device Supported | Peripheral Device |
| Device Supported | Docking Station |
| Device Supported | MacBook |
| American Wire Gauge | 30/32 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Features | Screw Lock |
| Features | Lockable |
| Features | Power Delivery 3.0 |
| Features | Halogen Free |
| Features | EMI Protection |
| Features | Bendable |
| Features | Flexible |
| Features | Charging |
| Features | Strain Relief |
| Physical Characteristics | |
| Product Color | Black |
| Product Color | Gray |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Shipping Height | 0.60" |
| Shipping Width | 8.70" |
| Shipping Weight (Approximate) | 3.20 oz |
| Miscellaneous | |
| Compatibility | Startech Docking Stations:
Microsoft Surface Book |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
