TYAN

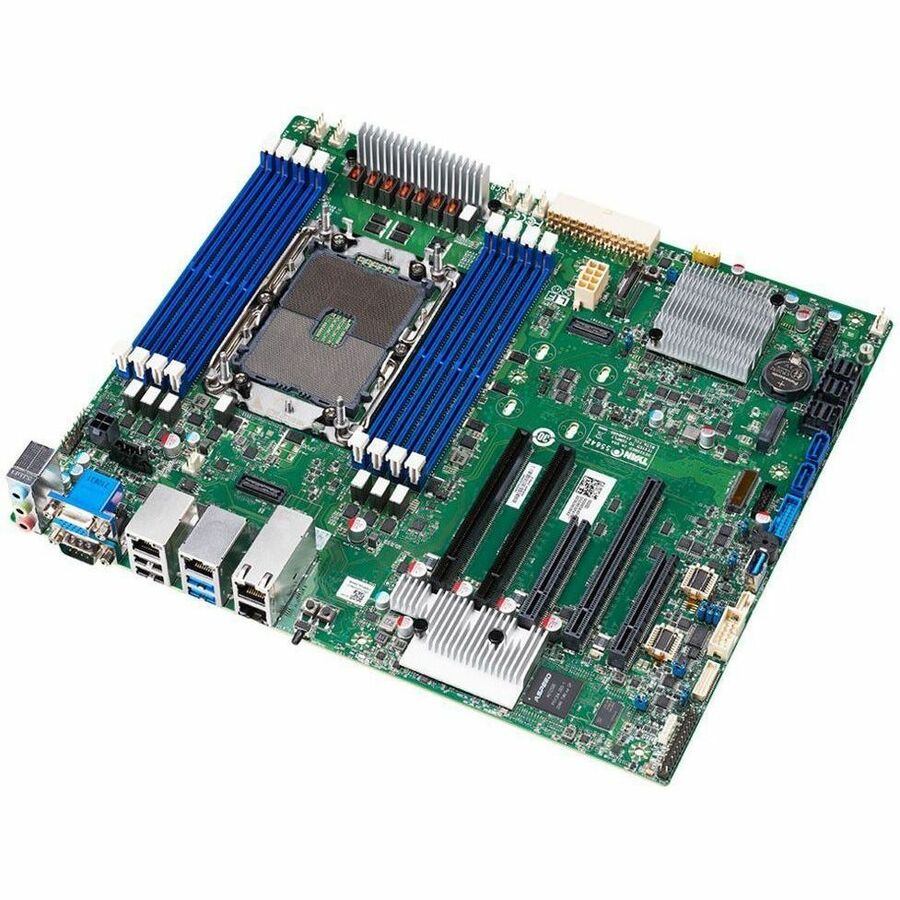

Tyan MB S5642AGM3NRE-2T C621A Xeon LGA4189 Max1024GB DDR4 SSI CEB Retail
Mfg Part Number: S5642AGM3NRE-2T , Item #: 4499290
Image may not reflect the actual item.
Price: $1,026.52
+ Free Shipping
Quantity:
More to Come
Last Updated: Jan 06, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S5642AGM3NRE-2T |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Line | Tempest HX |
| Product Model | S5642 |
| Product Name | Tempest HX S5642 Server Motherboard |
| Packaged Quantity | 1 |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4189 |
| Processor Generation Supported | 3rd Gen |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM |
| Memory Form Factor | LRDIMM |
| Memory Form Factor | RDIMM |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Intel RSTe | Yes |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2500 |
| Audio | |
| Audio Channels | 2.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Physical Characteristics | |
| Form Factor | SSI CEB |
| Width | 12" |
| Depth | 10.5" |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
