SUPERIOR RELIABILITY & PERFORMANCE

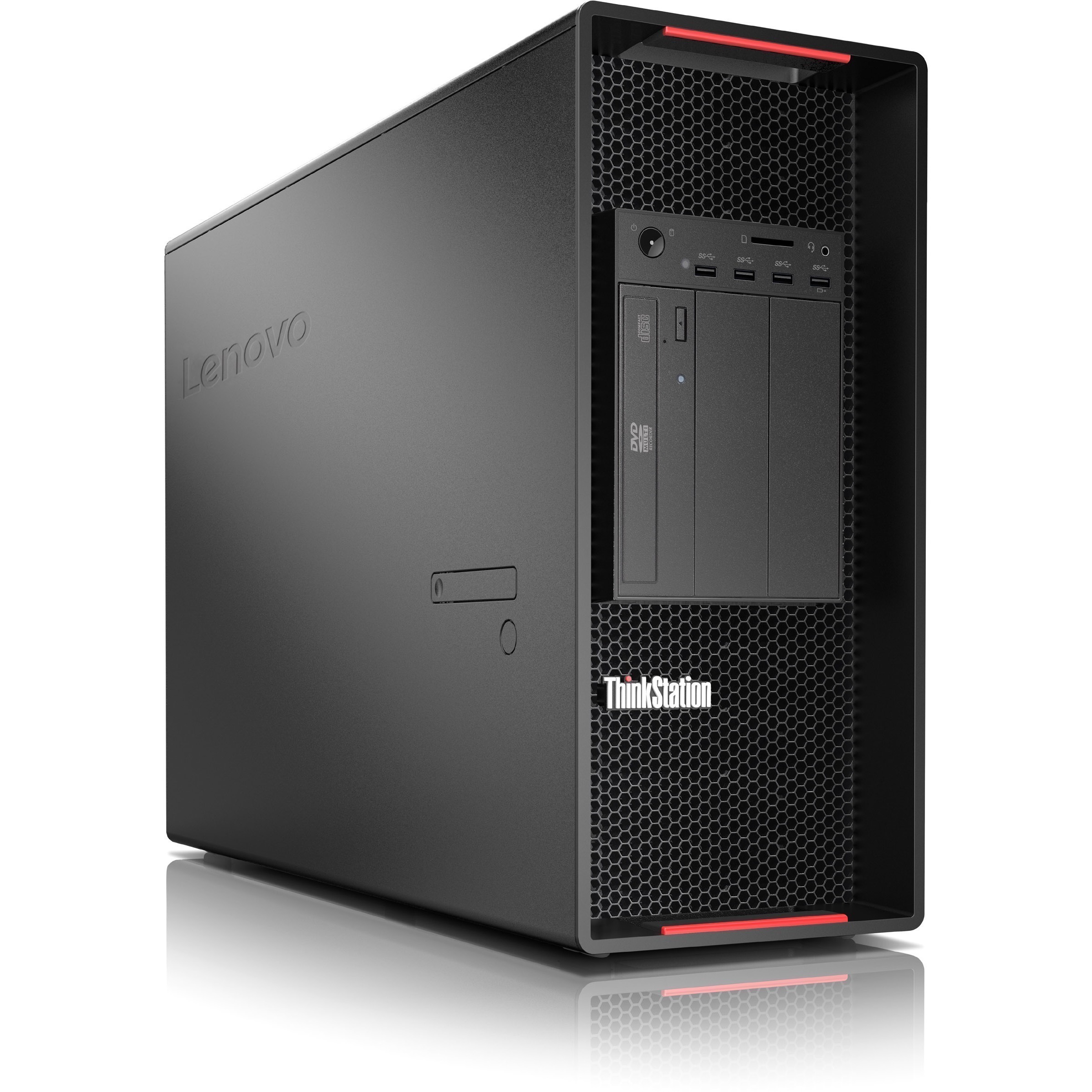

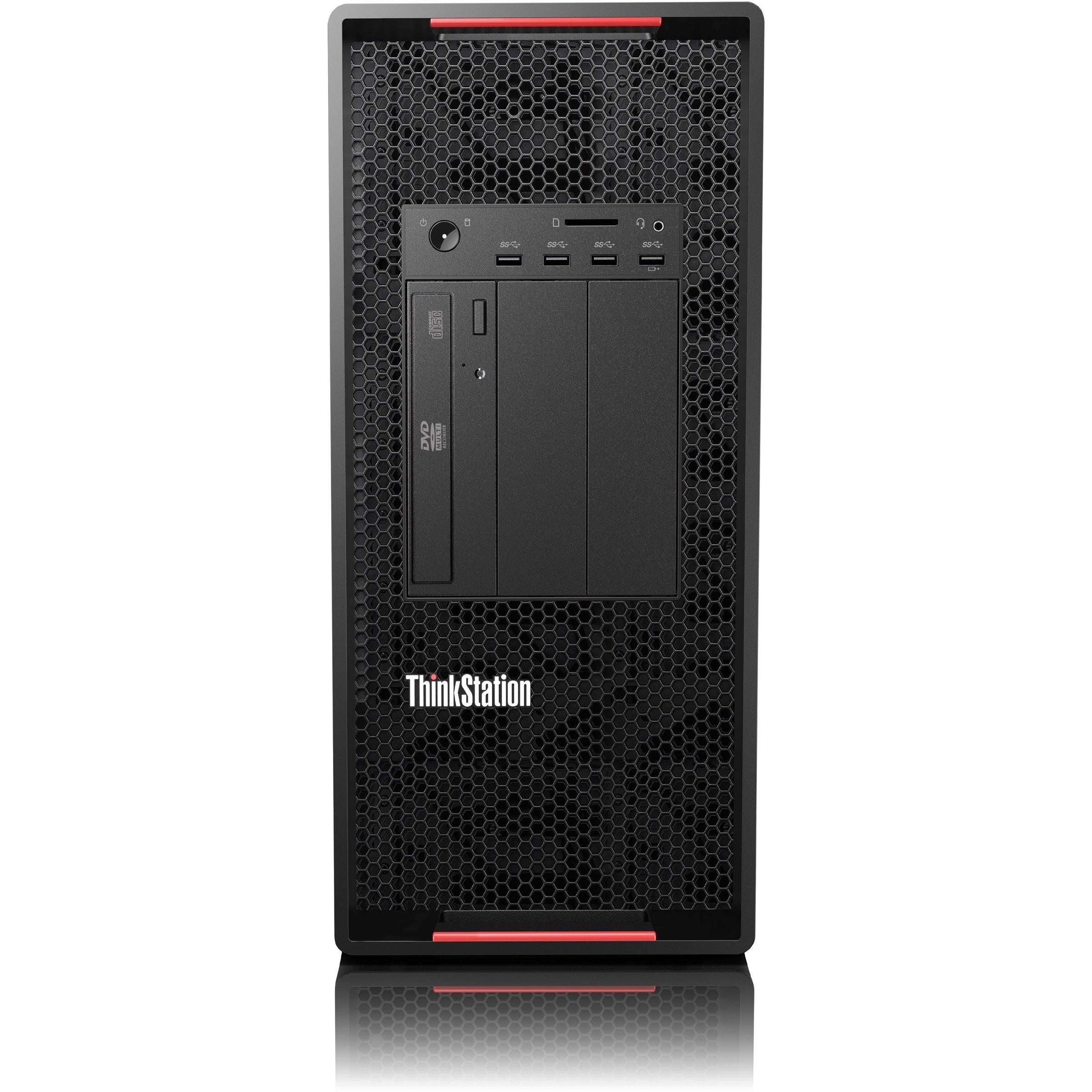

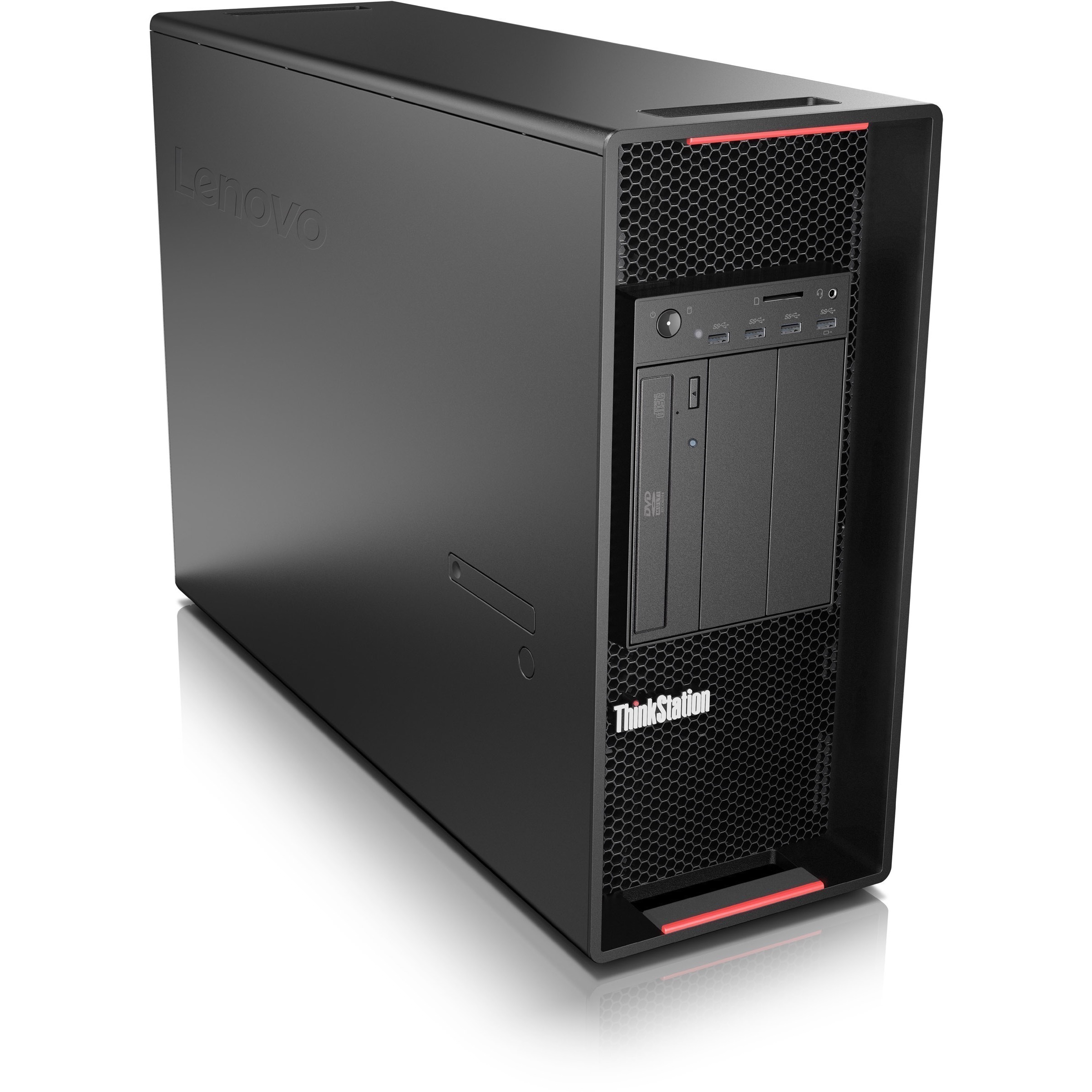

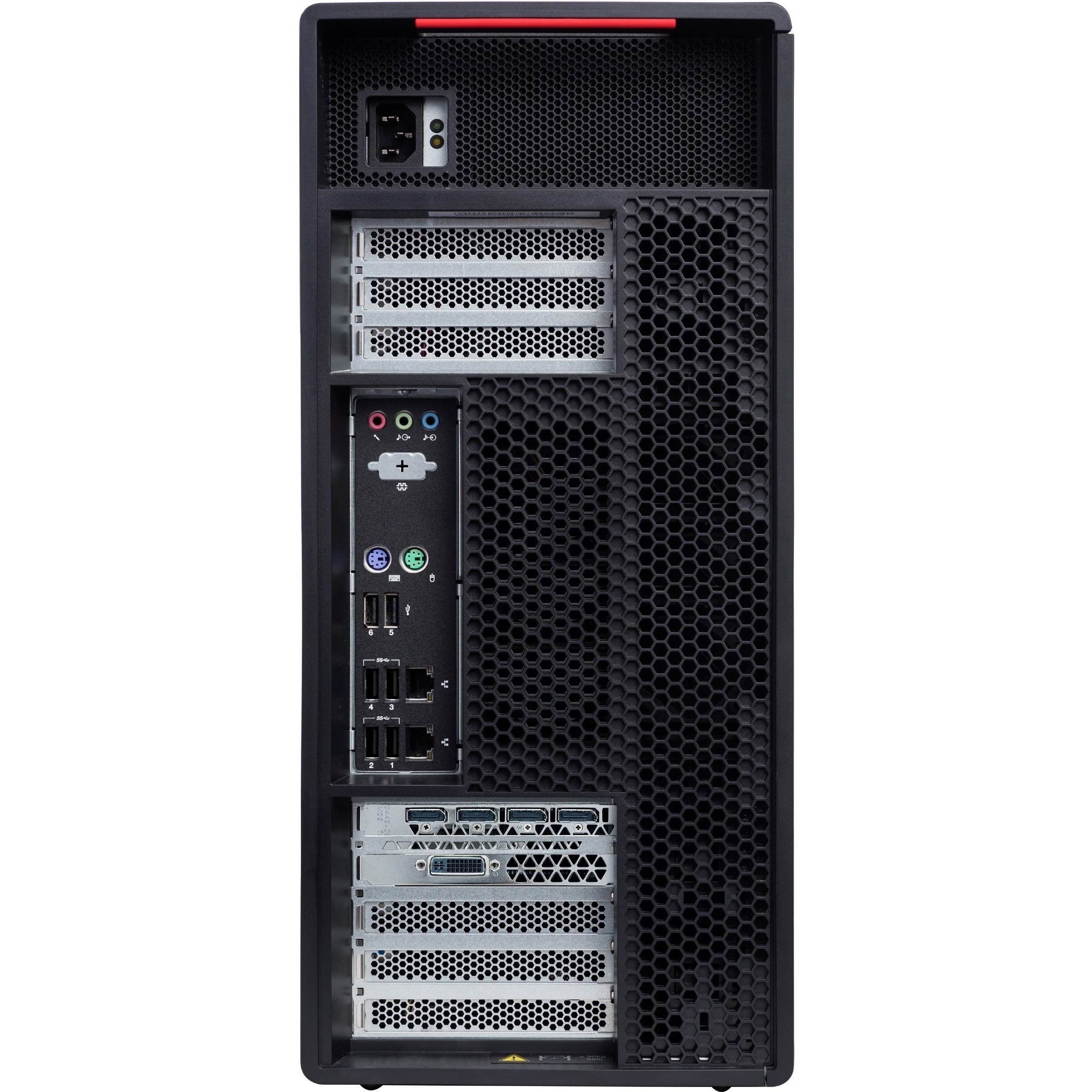

ThinkStation P Series deliver powerful performance with the latest generation of Intel® processors and NVIDIA® Quadro® professional graphics in dual- and single-processor towers. These workstations are ISV-certified, energy-efficient, and highly versatile.
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30BC006FUS |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P920 |
| Product Model | 30BC006FUS |
| Product Name | ThinkStation P920 30BC006FUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Gold |
| Processor Model | 6258R |
| Processor Core | Octacosa-core (28 Core) |
| Processor Speed | 2.70 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Standard Memory | 384 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 16 |
| Error Checking | ECC |
| Memory Clock Speed | 2.93 GHz |
| Memory Configuration | 12 x 32GB |
| Signal Processing | Registered |
| Storage | |
| Total Hard Drive Capacity | 2 TB |
| Hard Drive Interface | Serial ATA/600 |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.1 Gen 1 Ports | 8 |
| DisplayPort | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Operating System | |
| Operating System Platform | Linux |
| Operating System | Ubuntu |
| Power Description | |
| Maximum Power Supply Wattage | 1400 W |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.6" |
| Width | 7.9" |
| Depth | 24.4" |
| Weight (Approximate) | 81.57 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
