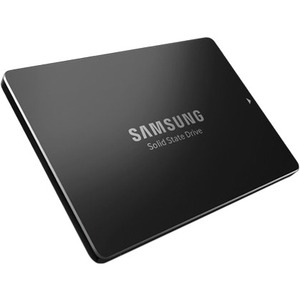

Samsung SSD MZ7L3960HCJR-00A07 PM893 960GB 2.5 SATA 1.3 DWPD Bare

Address Data Center Challenges

Data center architects face challenging requirements when delivering reliable computing and storage resources at the lowest total cost. Data center servers require high levels of I/O performance to keep their CPUs fully utilized, and high system density to minimize total cost. The storage systems that supply that I/O performance need to deliver consistent performance and latency to all tenant virtual machines and containers 24/7, 365 days a year.

Flexible Family Portfolio

Samsung's "ninth generation" SATA SSD families (PM893 and PM897) are available in capacities and write endurance levels to meet just about any application. For example, low capacity PM893 SSDs are ideal for high reliability, low power server boot drives. Higher capacity PM893 SSDs are suitable for a variety of mainstream read-intensive applications, such as collaboration platforms, unstructured data storage, content delivery networks (CDN), and hyper-converged infrastructure, such as the capacity tier of a VMware VSAN node. Samsung's PM897 SSDs offer increased write endurance, making them ideal for mixed read/ write workloads, such as a general purpose or dedicated cache tier of hyper-converged infrastructure like VMware's VSAN, logging applications, online transaction processing (OLTP), database servers, and other general purpose servers with legacy workloads with unknown write characteristics. All SSDs in this lineup use the same Samsung controller and V-NAND flash memory, to simplify customer qualification and ensure reliable high volume supply

SATA Interface Saturating Performance

Samsung's PM893 and PM897 SSDs deliver performance up the maximum allowable for SATA attached drives: up to 560 MB/sec sequential access, and up to 98,000 IOPS for 4 kbyte random read access. Maximum performance not only allows your workloads to complete a quickly as possible, but also allows efficient shared use of high capacity drives, to maximize the performance per gigabyte of data stored.

Hardware Encryption Engine

Samsung's PM893 and PM897 SSDs keep your private data confidential, with encryption via a hardware based AES-XTS 256-bit encryption engine, and management via the TCG Opal 2.0 standard.

General Information
Manufacturer	Samsung
Manufacturer Part Number	MZ7L3960HCJR-00A07
Manufacturer Website Address	http://www.samsung.com/us
Brand Name	Samsung
Product Series	PM893
Product Model	MZ7L3960HCJR-00A07
Product Name	PM893 MZ7L3960HCJR-00A07 Solid State Drive
Product Type	Solid State Drive
Technical Information
Storage Capacity	960 GB
Encryption Standard	256-bit
Drive Performance
Maximum Read Transfer Rate	550 MB/s
Maximum Write Transfer Rate	520 MB/s
Random 4KB Read	98000IOPS
Random 4KB Write	30000IOPS
Endurance (DWPD)	1
Endurance Type	Read Intensive
Network & Communication
Wireless LAN	Yes
Interfaces/Ports
Drive Interface	SATA
Drive Interface Standard	SATA/600
Physical Characteristics
Drive Type	Internal
Form Factor	2.5"
Height	0.3"
Width	3.9"
Depth	2.8"
Miscellaneous
Device Supported	Server
