LENOVO 7D5JA002WW DB720S 24PT+32GB SFPS 2PS-F RAIL KIT
Mfg Part Number: 7D5JA002WW , Item #: 4491869
Image may not reflect the actual item.
Price: $48,716.00
+ Free Shipping
Quantity:
More to Come
Last Updated: Aug 10, 2025
No Sales Tax except these states
, PO and Wire.

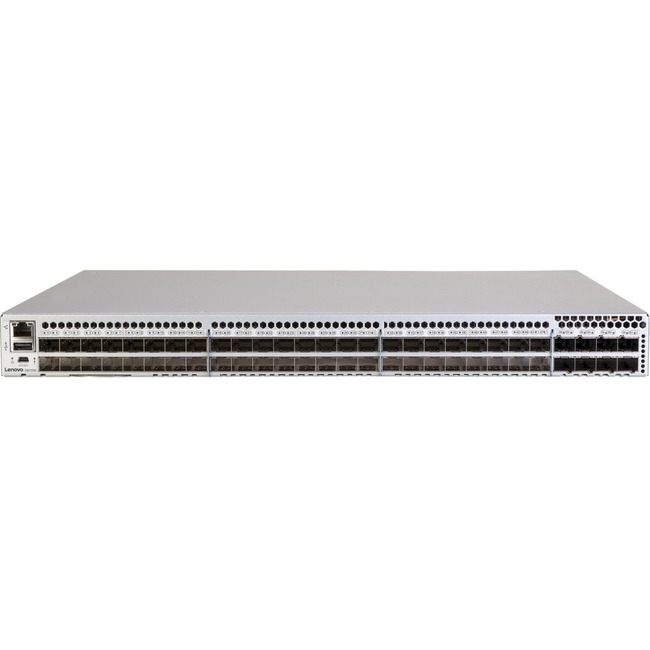

The Lenovo ThinkSystem DB720S Gen 7 FC SAN Switch, with its unmatched 64Gbps performance and industry-leading port density, provides a building block that supports data growth, demanding workloads, and data-center consolidation. With a 50% latency reduction compared to the previous generation, the DB720S Switch enables the maximum performance of NVMe storage.
Main Specification
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D5JA002WW |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Model | DB720S Gen7 |
| Product Name | ThinkSystem DB720S Gen7 FC SAN Switch |
| Product Type | Fibre Channel Switch |
| Interfaces/Ports | |
| Total Number of Ports | 24 |
| Number of Active Ports | 24 |
| Number of Fibre Channel Ports | 24 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Data Transfer Rate | 32 Gbit/s |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 24 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 24 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Plug/Connector Type | IEC 309 C14 |
| Maximum Power Supply Wattage | 350 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 14" |
| Weight (Approximate) | 15.81 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Three-year software/firmware entitlement. |
