TYAN

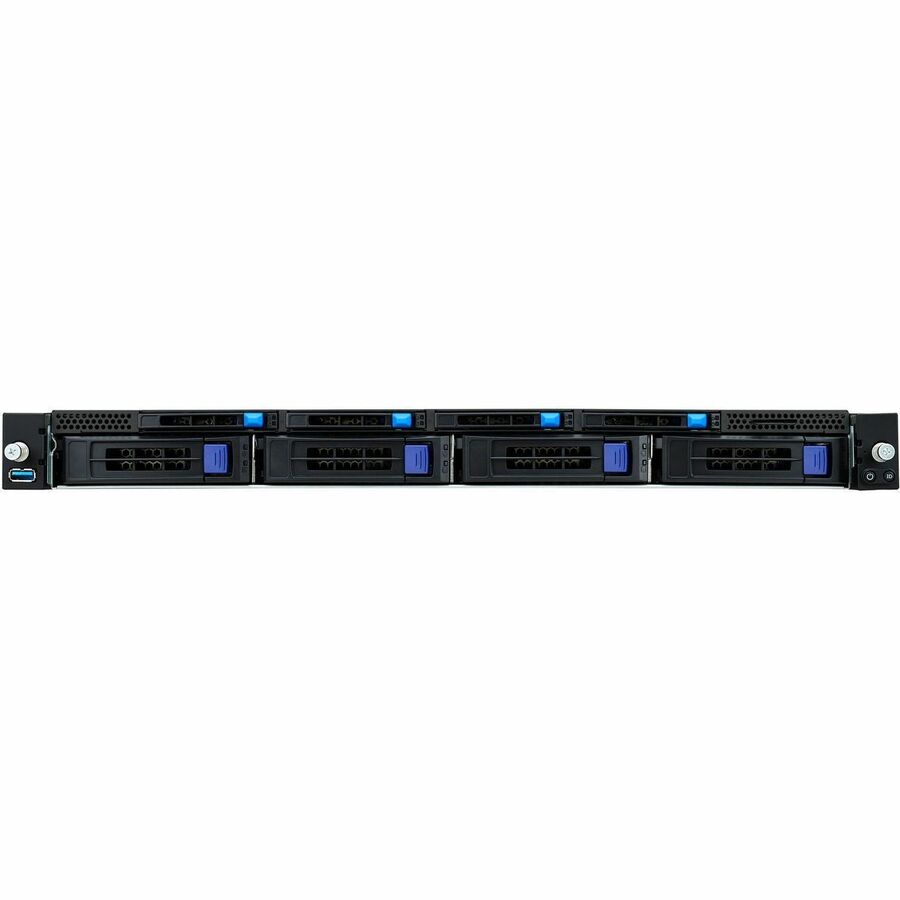

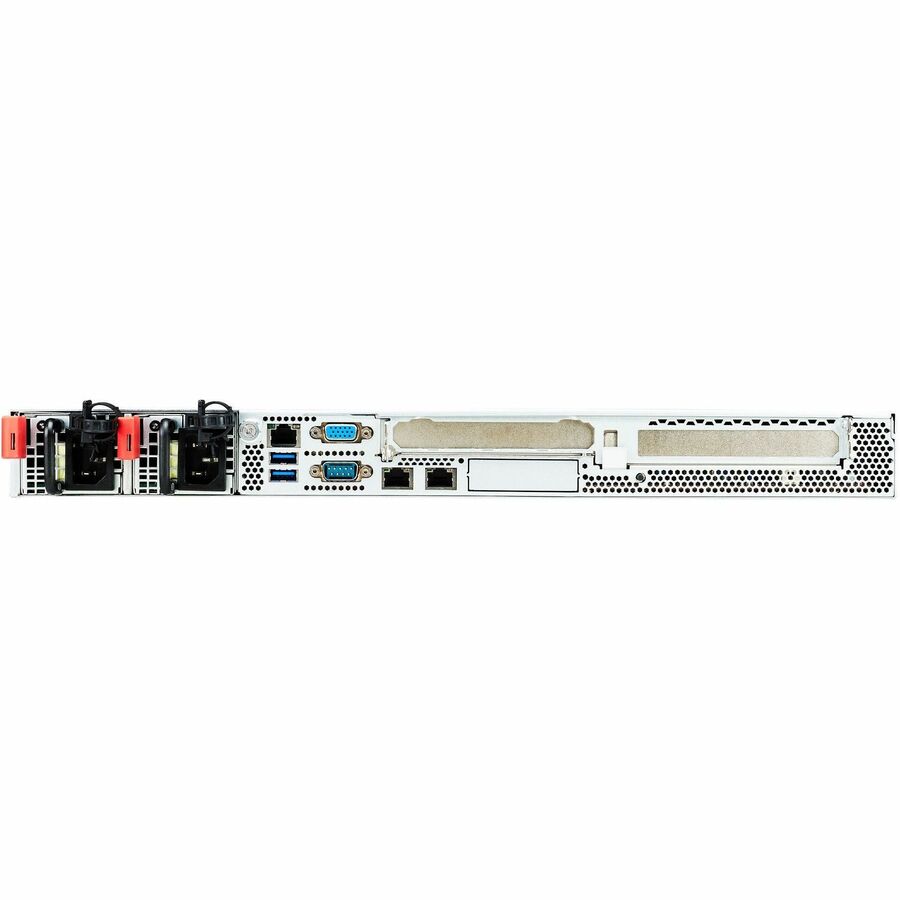

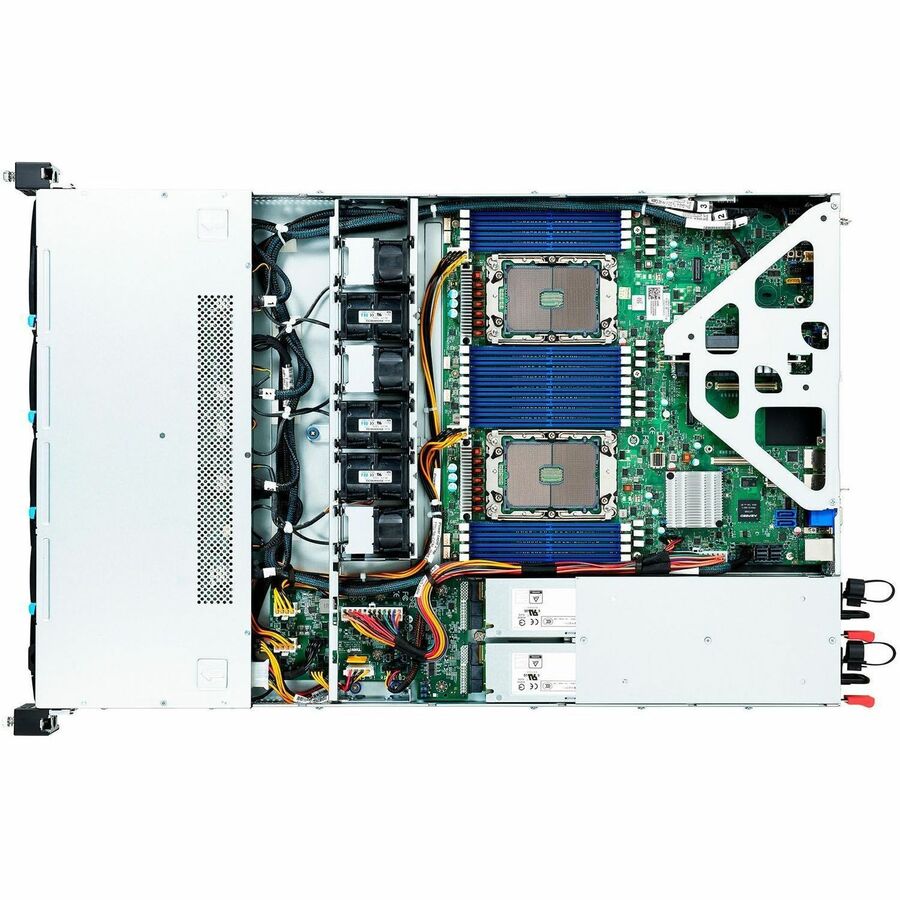

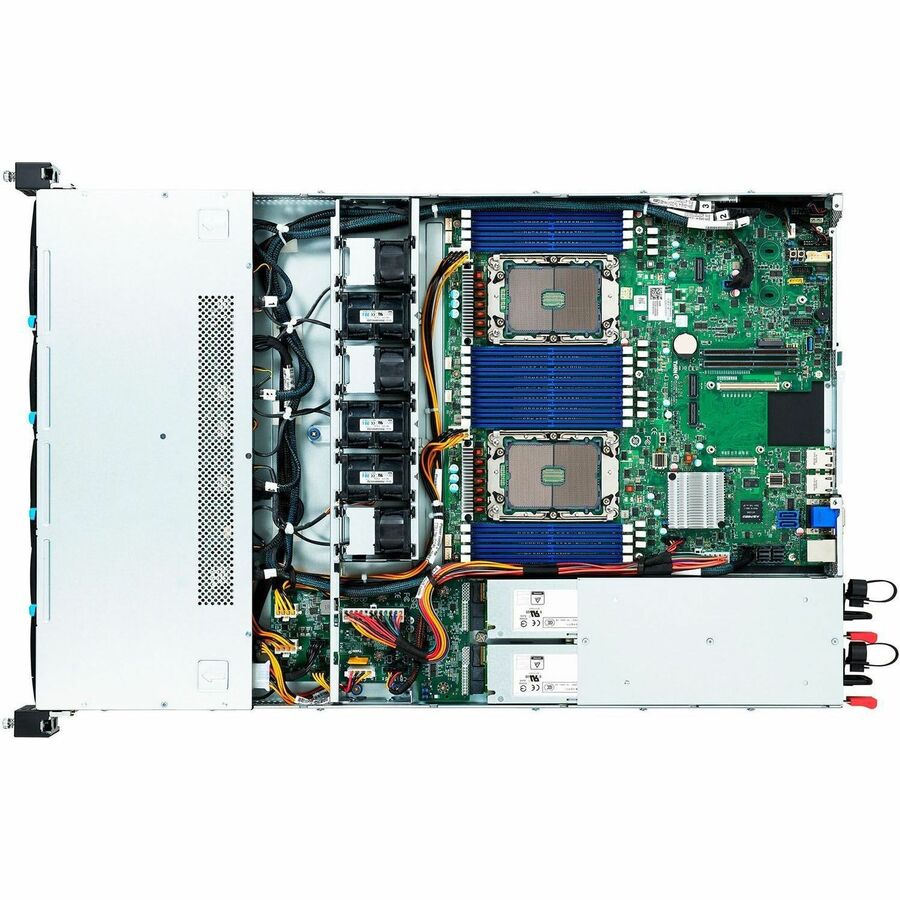

Tyan SV B7126G68V4E4HR 1U2S Xeon LGA4189 C621A Max2048GB DDR4 4x3.5 SATA HS
Mfg Part Number: B7126G68V4E4HR , Item #: 4488129
Image may not reflect the actual item.
Price: $2,832.86
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 10, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7126G68V4E4HR |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Line | Thunder CX |
| Product Model | GC68B7126 |
| Product Name | Thunder CX GC68B7126 Barebone |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Gold |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express 3.0 |
| Supported Storage Drive Interfaces | SAS |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | NVMe |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 850 W |
| Thermal Design Power | 205 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 26.8" |
| Weight (Approximate) | 23.15 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
| Warranty | |
| Limited Warranty | 3 Year |
