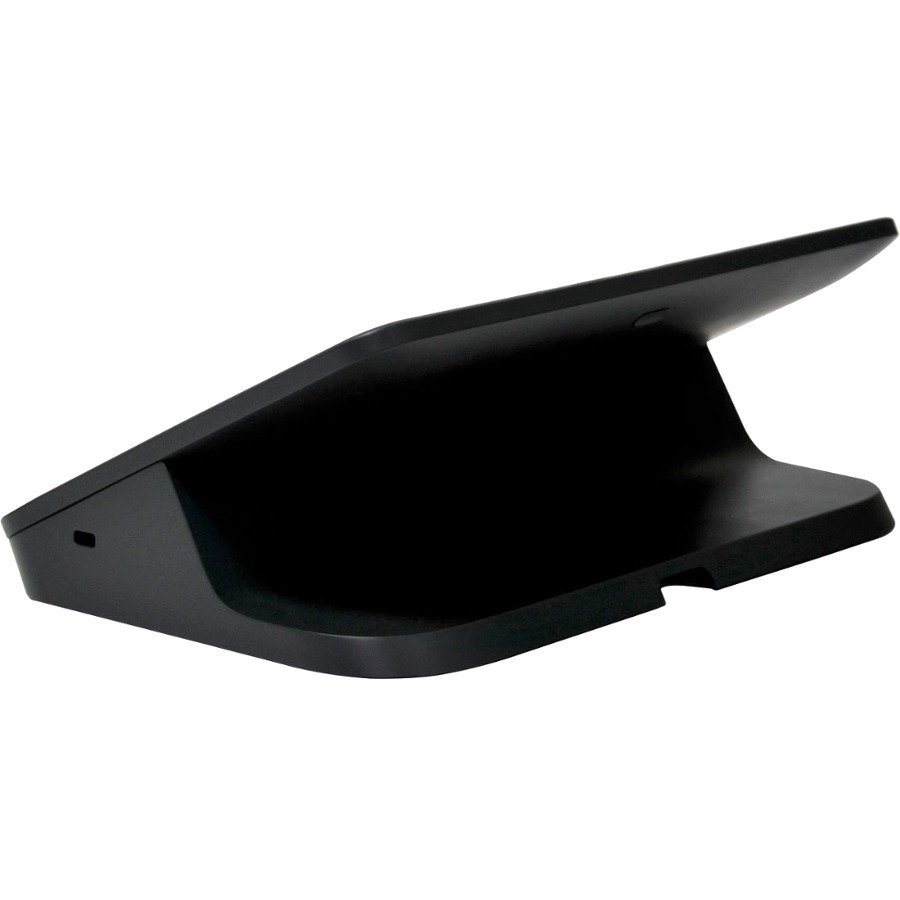

MIMO MONITORS MY-1090CV MYSTLINK 10.1 AVOIP PCAP HDMI CONFROOM CNTLR ZOOMTEAMS COMPATIBLE

Designed with today's modern conference room in mind, the 10.1" Mimo Myst Link is the First AV over-IP display with HDMI capture that features easy-to-use Ethernet connectivity (CAT5e) with PoE, allowing for installation up to 100 meters from the PC without the hassles of extenders, complicated installation, and needing power at the table. This means the Myst Link provides unparalleled convenience, ultimate flexibility, and an unmatched price point.

Sleek, and sophisticated with a high-end, low-profile design, this innovative conference room solution is recognized by PCs as a regular display, maximizing usable space and productivity, without increasing complexity and IT requirements. Due to its ubiquitous cabling, which also supplies power (no power at the table needed!), it is seamless for IT to set up and simple to maintain, cutting long-term costs and the need for technical know-how. Since it also allows for long distance installations, it paves the way for flexible and moveable furniture configurations, necessary for today's evolving work environment. In addition, the capacitive touch display provides a USB connection through to the host computer for connecting hardware such as a speaker/mic without requiring any additional extenders, cables, or power.

Features

• AV-over-IP connected 1280x800 touch display that is recognized by PCs as a regular display.
• 2 piece solution (Display at the table and box at the PC, connected via Ethernet).
• Compatible with Windows 8 (and higher), Linux, Chrome, and Mac OS.
• Integrated HDMI Capture up to 1080p in standard UVC and UAC protocol for wide software support.
• Can transmit 4k video from display side to PC side.
• USB input to optionally USB accessories such as a speaker/mic

Applications

• Conference rooms.
• Control interface where HDMI capture is needed

General Information
Manufacturer	Mimo Monitors, Inc
Manufacturer Part Number	MY-1090CV
Manufacturer Website Address	http://www.mimomonitors.com
Brand Name	Mimo Monitors
Product Model	MY-1090CV
Product Name	10.1" Myst Link Capacitive Touch Display
Product Type	LCD Touchscreen Monitor
Technical Information
Screen Size Class	10"
Viewable Screen Size	10.1"
Screen Mode	WXGA
Horizontal Viewing Angle	170°
Vertical Viewing Angle	170°
Mount Type	Wall Mountable
Mount Type	Desk Mountable
Placement	Tabletop
Features	Anti-glare
Features	Cable Lock Slot
Features	3H Surface Hardness
Features	Ambient Light Sensor
Video
Maximum Resolution	1280 x 800
Native Contrast Ratio	1,000:1
Brightness	400 Nit
Audio
Speakers	Yes
Touchscreen Information
Touchscreen Type	Projected Capacitive
Interfaces/Ports
HDMI	Yes
USB	Yes
Power Description
Operating Power Consumption	16 W
Physical Characteristics
VESA Mount Compatible	Yes
Product Color	Gray
Height	6.3"
Width	9.9"
Depth	3.9"
Weight (Approximate)	3.20 lb
Miscellaneous
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
