ALLIED TELESIS
ALLIED TELESIS AT-GS980MX/52-10 L3 STACK SWITCH 48PORT +4X 10/100/1000-T 4X SFP+ PORTS
Mfg Part Number: AT-GS980MX/52-10 , Item #: 4485561

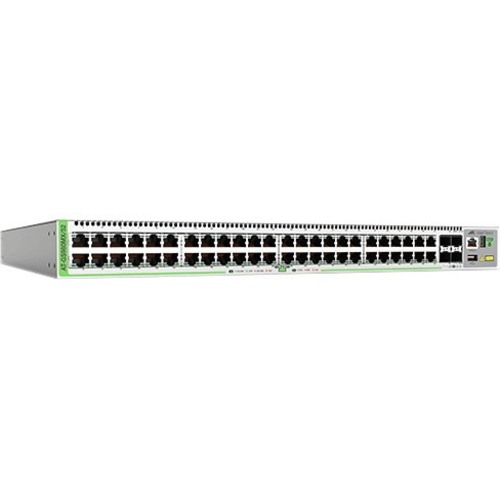

Image may not reflect the actual item.
Price: $1,765.35
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 10, 2025
No Sales Tax except these states
, PO and Wire.
Stackable Multi-Gigabit Layer 3 Lite Switches
The Allied Telesis Centre COM GS980MX Series of Layer 3 Gigabit switches feature high-capacity, resiliency and easy management. Power over Ethernet models with Multi-Gigabit support make them an ideal solution for high-speed connectivity at the network edge.
Overview
Allied Telesis GS980MX Series are high-performing, feature-rich, and versatile for today's networks. With Gigabit/Multi-Gigabit ports and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the GS980MX Series enable flexible deployment and a resilient solution.
The Power over Ethernet models offer 2.5G and 5G Multi-Gigabit ports to support connecting and powering high-speed Wi-Fi 6 wireless networks, and other high bandwidth applications. The GS980MX/10HSm can provide up to 90 Watts (PoE++) per port. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting, and more.
Specifications | Performance
- 10KB L2 and 9KB L3 jumbo frames
- 4094 configurable VLANs
- Up to 16K MAC addresses
- 1GB DDR3 SDRAM
- 256MB NAND flash memory
- Packet Buffer memory: 1.5MB
- Stack up to 4 units in a VCStack
- Active Fiber Monitoring detects tampering on optical links
- Built-In Self test (BIST)
- Cable fault locator (TDR)
- Find-me device locator
- Automatic link flap detection and port shutdown
- Optical Digital Diagnostic Monitoring (DDM)
- Ping polling for IPv4 and IPv6
- Port mirroring
- Trace Route for IPv4 and IPv6
- Uni-Directional Link Detection (UDLD)
- Equal Cost Multi Path (ECMP) routing
- Static routing and RIP for IPv4
- Static routing for IPv6
- Device management over IPv6 networks with SNMPv6, Telnetv6, SSHv6
- IPv6 hardware ACLs
- Log to IPv6 hosts with Syslog v6
- IPv6 Ready certified
- Front panel 7-segment LED provides at-a-glance status and fault information
- Allied Telesis Autonomous Management Framework (AMF) enables powerful centralized management and zero-touch device installation and recovery
- Manage the GS980MX Series with Vista Manager EX-our graphical single-pane-of-glass monitoring and management tool for AMF networks, which also supports wireless and third party devices
- AMF Security (AMF-Sec) enables a self-defending network-managing the GS980MX Series (or other AMF switches) to automatically block the spread of malware by quarantining suspect end user devices
- Console management port on the front panel for ease of access
Main Specification
| General Information | |
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-GS980MX/52-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Brand Name | Allied Telesis |
| Product Line | CentreCOM |
| Product Series | GS980MX |
| Product Model | GS980MX/52 |
| Product Name | CentreCom GS980MX/52 Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1AX |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1v |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3bz |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3bt |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 60 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 12.7" |
| Weight (Approximate) | 10.58 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
