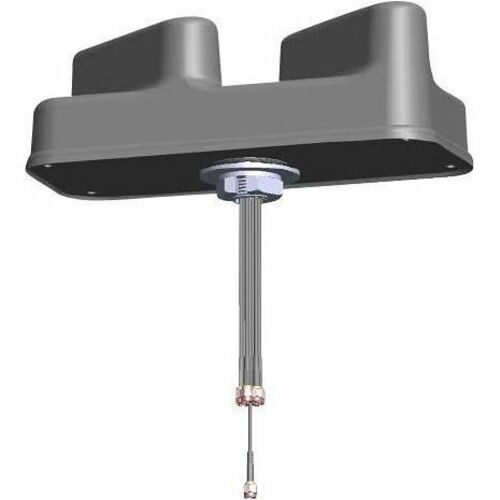

CISCO ANT-7-5G4WL2G1-O= 7 in 1 outdoor antenna
Mfg Part Number: ANT-7-5G4WL2G1-O= , Item #: 4482606
Image may not reflect the actual item.
Price: $987.68
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 28, 2025
No Sales Tax except these states
, PO and Wire.
This section describes the technical specifications and installation instructions for the Cisco Multi-element, 7-in-1, LTE/Wi-Fi/GNSS antenna (ANT-7-5G4WL2G1-O), hereafter referred to as the antenna. The antenna features:
- Antenna Type - Multi Band Monopole, built in ground plane
- Direct Mount, 6x 2ft RG 316 / 1x 17ft RG 174
- 4x Cellular (4G/5G)
- 1x GNSS
- 2x WiFi
The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | ANT75G4WL2G1O |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Model | ANT-7-5G4WL2G1-O |
| Product Name | ANT-7-5G4WL2G1-O Antenna |
| Packaged Quantity | 1 |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 1710 MHz to 5925 MHz |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Antenna Gain (Isotropic) | 5.8 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Interfaces/Ports | |
| Connector Type | SMA |
| Connector Type | RP-SMA |
| Power Description | |
| Power Source | DC Power |
| Physical Characteristics | |
| Height | 3.63" |
| Width | 4.86" |
| Form Factor | Vehicle Mount |
| Form Factor | Direct Mount |
| Weight (Approximate) | 1.85 lb |
| Miscellaneous | |
| Application/Usage | Wireless Data Network |
| Application/Usage | GPS |
| Application/Usage | Cellular Network |
| Warranty | |
| Limited Warranty | 5 Year |
