MIMO MONITORS
MIMO MONITORS M19024-OF 19IN DISPLAY, OPEN FRAME, NON-TOUCH, SILVER
Mfg Part Number: M19024-OF , Item #: 4482205
, PO and Wire.
For OEMs and system integrators in search of a cost-effective display solution, the 19" M19024-OF wide viewing angle monitor is the answer. Ideal for a variety of applications including retail, kiosk, and industrial needs, this rugged model is suited for integration into other equipment or enclosures. The molded metal product cycle-enclosure ensures that future generation panels can be phased in without necessitating any external changes. Our 19" display is available in two different models, with a choice of projected capacitive (PCAP) multi-touch (M19024C-OF) or non-touch display (M19024-OF), depending on your needs. This state-of-the-art open frame display is backed by a 3-year warranty on all electronics.
Mimo's 19" wide viewing angle monitor has a panel-wide viewing angle and can display in both portrait and landscape orientations. The wide range of features includes analog and digital interfaces and multi-lingual on-screen display (OSD). VESA mounting comes standard, in addition to mounting brackets for front mount needs (rear mount optional).

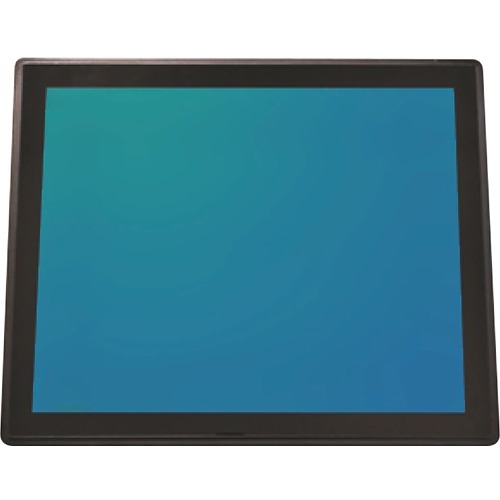

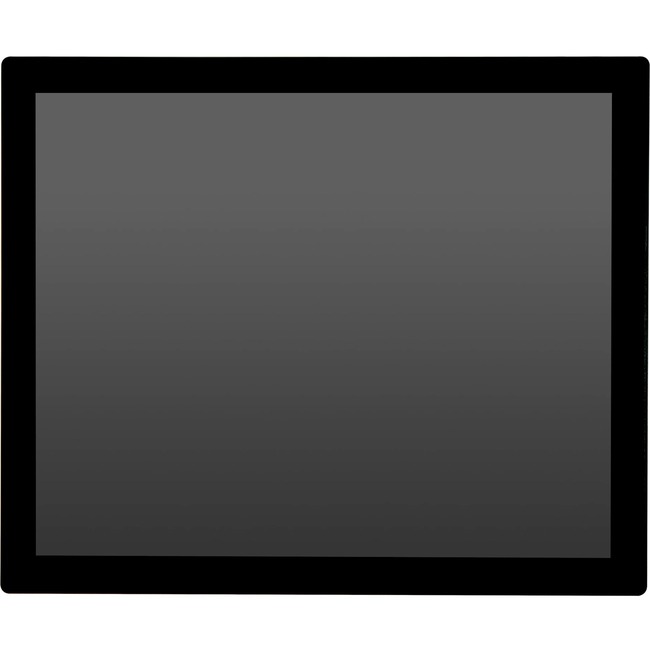

Open Frame 19.0" Wide Viewing Angle Monitor
Explore the impressive features of our 19" open-frame non-touch display:
- 1280x1024 Resolution, 5:4 aspect ratio
- 1000:1 contrast ratio, and 250-nit brightness (LCD panel)
- High-quality panel with 178° x 178° viewing angle.
- Mounting: VESA mount, front mount (rear mount optional)

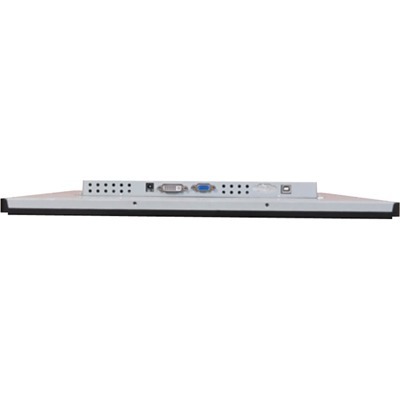

- Inputs: VGA, DVI, and HDMI (via adapter), external AC/DC power
- Durable product cycle-enclosure. Future generation panels installed without external changes.
- Mechanical drawings available upon request
Applications:
Our open-frame non-touch display is ideally suited to a number of applications, including:
- Kiosk information system (retail, higher education, hospitality, wayfinding, digital directories)
- Gaming and amusement
- Light industrial shop-floor automation.
| General Information | |
| Manufacturer | Mimo Monitors, Inc |
| Manufacturer Part Number | M19024-OF |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Brand Name | Mimo Monitors |
| Product Model | M19024-OF |
| Product Name | M19024-OF Widescreen Open-frame LCD Monitor |
| Product Type | Open-frame LCD Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 19" |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Rear Mount |
| Features | On-screen Display (OSD) |
| Features | Wide Viewing Angle |
| Features | Anti-glare |
| Features | 3H Surface Hardness |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 Nit |
| Interfaces/Ports | |
| DVI | Yes |
| HDMI | Yes |
| VGA | Yes |
| Number of HDMI Inputs | 1 |
| Power Description | |
| Operating Power Consumption | 20 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Rugged | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
