FRACTAL DESIGN

Fractal Design Dynamic X2 PWM GP-18 180 mm High Durability LLS Bearing Black Edition Radiator Optimized Computer Case Fan - FD-FAN-DYN-X2-GP18-PWM-BK

Mfg Part Number:  FD-FAN-DYN-X2-GP18-PWM-BK
Image may not reflect the actual item.
Price: $34.50
Quantity:
In Stock: 59
Last Updated: Sep 14, 2025
No Sales Tax except these states
, PO and Wire.

Super-sized airflow | Optimized fan geometry

  • Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario

  • Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment

  • Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern

High-grade LLS bearing | Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability | Notched blade design

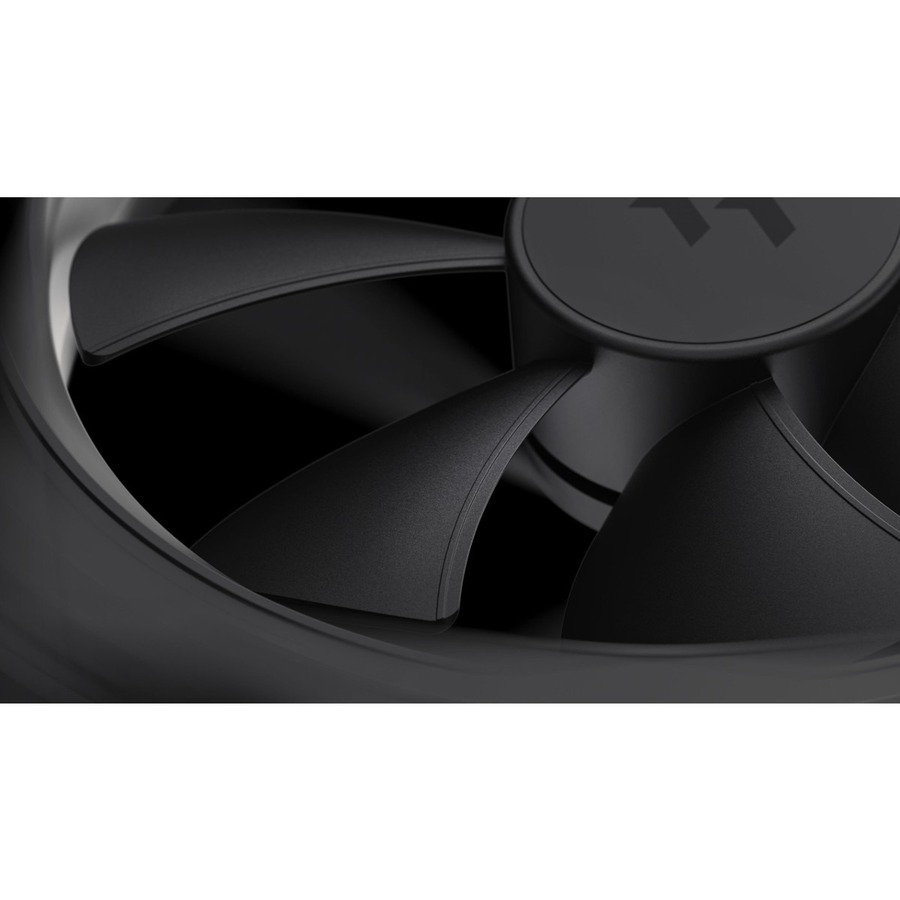

  • Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts

  • Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence

  • Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile

Main Specification
General Information
Manufacturer Fractal Design
Manufacturer Part Number FD-FAN-DYN-X2-GP18-PWM-BK
Manufacturer Website Address http://www.fractal-design.com
Brand Name Fractal Design
Product Line Dynamic
Product Series X2
Product Model GP-18
Product Name Dynamic X2 GP-18 PWM
Product Type Cooling Fan
Fan Information
Number of Fans 1
Fan Bearing Type LLS Bearing
Fan Speed (Min) 300 rpm
Fan Speed (Max) 1200 rpm
Maximum Airflow 153.70 CFM
Noise Levels (A-Weighted) 35.4 dB(A)
Fan Life 10.3 Year
Maximum Air Pressure 2.26mmH2O
Interfaces/Ports
Connectors 4-pin
Power Description
Rated Current 350 mA
Physical Characteristics
Product Color Black
Maximum Fan Diameter 7.09"
Fan Diameter Details 1 x 180mm
Fan Height 1.50"
Fan Width 7.09"
Fan Depth 7.09"
Weight (Approximate) 1.10 lb
Miscellaneous
Compatibility
  • Fractal-Design Torrent Computer Case
  • Fractal-Design Ion+ 2 Platinum 860W Power Supply
Application/Usage Computer Case
Application/Usage Power Supply
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin China
