Planar
Planar 997-7414-01 17IN PT1745P BLACK LEDLCD 10PT SXGA VGA HDMI DP SPEAKERS
Mfg Part Number: 997-7414-01 , Item #: 4479345
Image may not reflect the actual item.
Price: $669.97
Quantity:
In Stock: 3
Last Updated: Jan 29, 2026
No Sales Tax except these states
, PO and Wire.

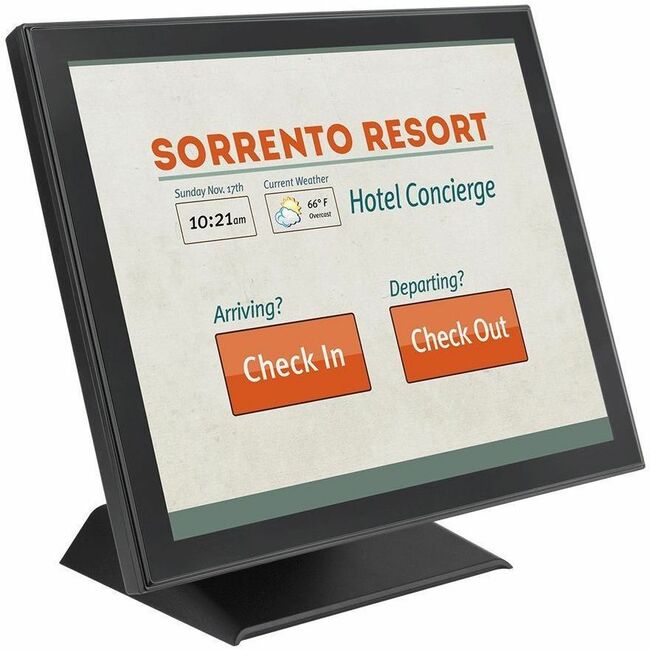

The Planar® PT1745P 17" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1745P provides the ultimate interactive experience and is optimized with multi-touch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI® and DisplayPort input connectivity.
Main Specification
| General Information | |
| Manufacturer | Leyard |
| Manufacturer Part Number | 997741401 |
| Manufacturer Website Address | http://www.planar.com |
| Brand Name | Planar |
| Product Model | PT1745P |
| Product Name | PT1745P 17" Touch Screen Point of Sale Monitor |
| Product Type | LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Response Time | 5 ms |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | Edge LED |
| Features | Cable Lock Slot |
| Features | Edge-to-Edge Glass Design |
| Features | On-screen Display (OSD) |
| Vertical Frequency | 56 Hz to 75 Hz |
| Stand Adjustments | Tilt |
| Operation Hours | 16 Hours/ 7 Days |
| Active Display Area (H x V) | 13.30" x 10.60" |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 212 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Power Description | |
| Operating Power Consumption | 11.90 W |
| Maximum Power Consumption | 11.90 W |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Color Family | Black |
| Product Color | Black |
| Height | 12.6" |
| Width | 15.2" |
| Depth | 2.6" |
| Height with Stand | 13.46" |
| Width with Stand | 15.23" |
| Depth with Stand | 7.95" |
| Weight (Approximate) | 8.82 lb |
| Weight with Stand (Approximate) | 12.35 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
