CYBERPOWER

CYBERPOWER BCT6L9N225 BATTERY CABINET

Mfg Part Number:  BCT6L9N225

Special Note: Aug 16, 2021
NCNR; If you do not have loading facility, please contact our CST for special handling service.

Image may not reflect the actual item.
Price: $4,347.92 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 17, 2025
No Sales Tax except these states
, PO and Wire.

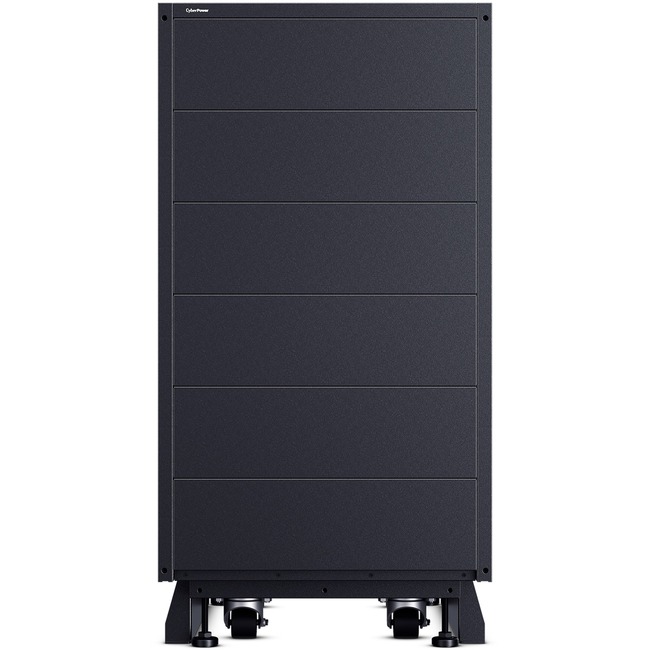

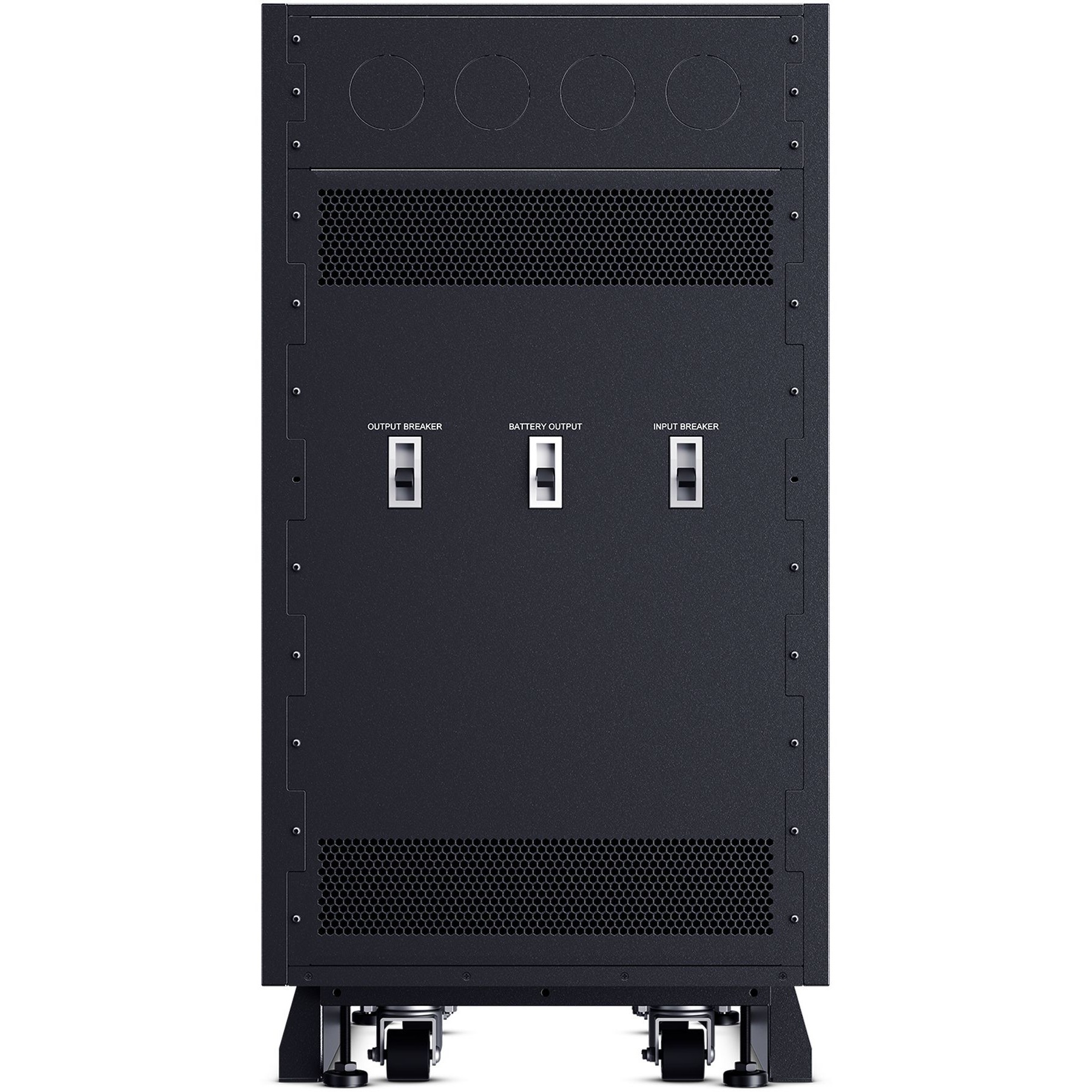

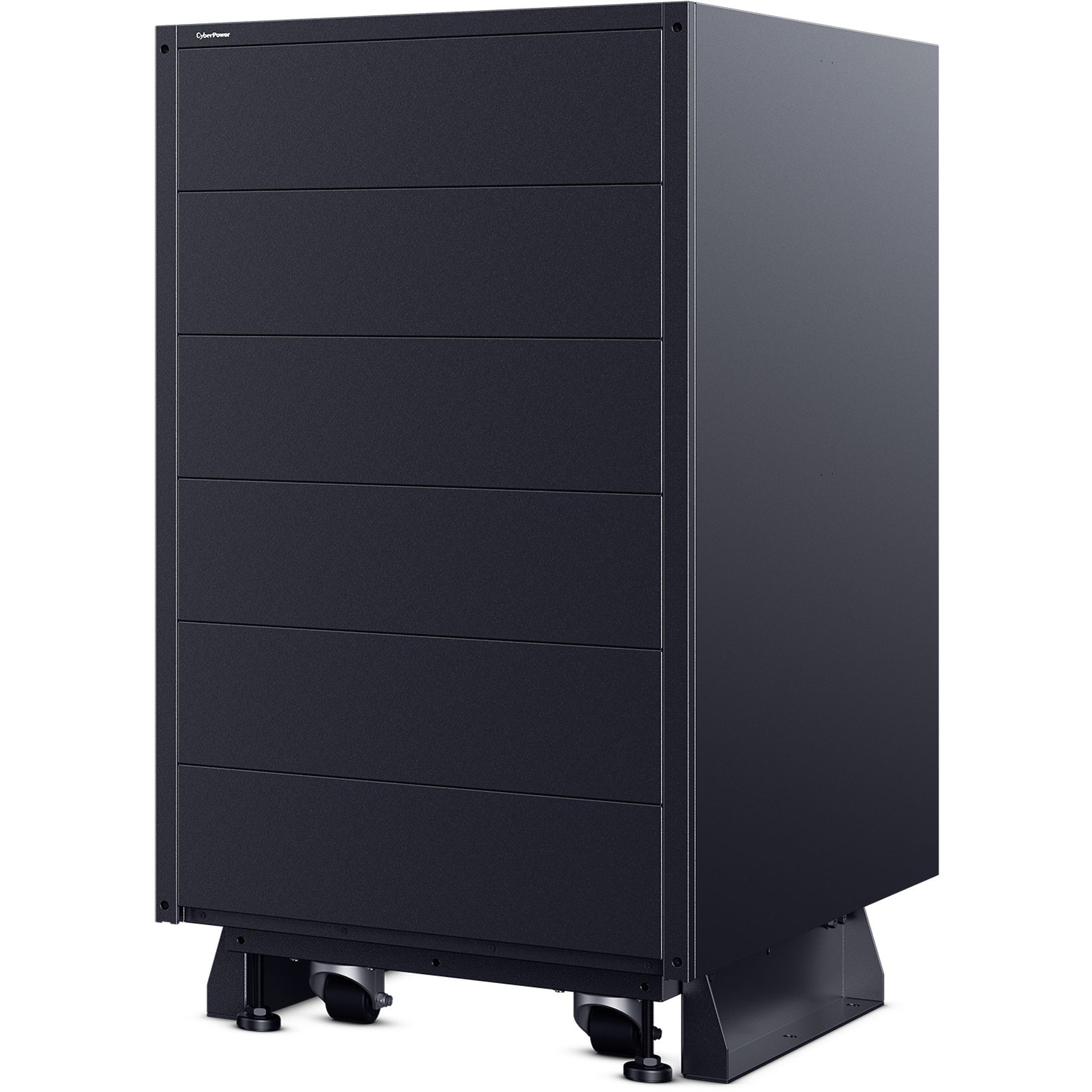

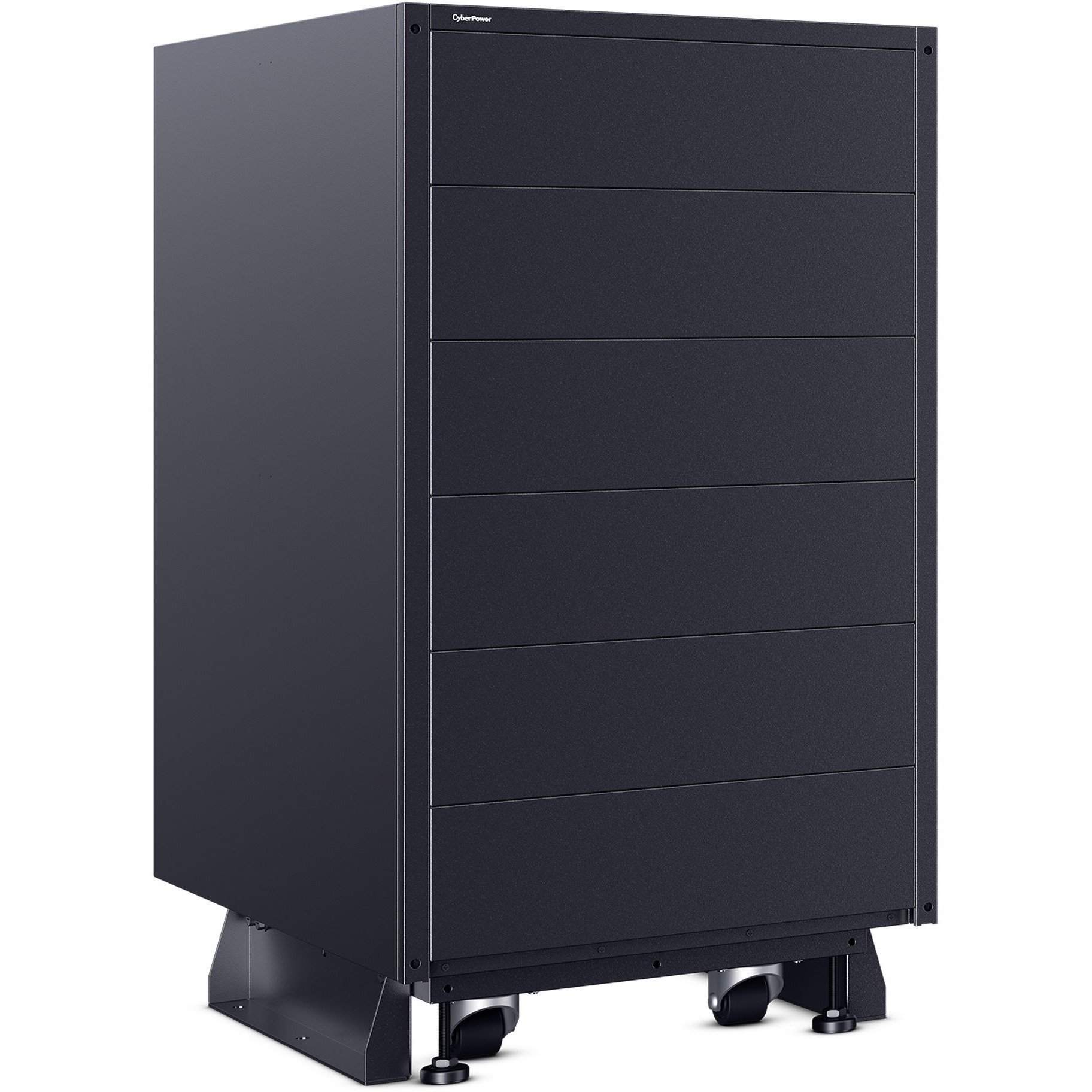

The CyberPower BCT6L9N225 3-Phase Modular UPS Battery Cabinet can hold up to 12 battery modules (BM120V30ATY). These 6-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.

Main Specification
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number BCT6L9N225
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Model BCT6L9N225
Product Name BCT6L9N225 Battery Cabinet
Product Type Battery Cabinet
Technical Information
Battery Characteristics Valve Regulated Lead Acid (VRLA)
Hot Swappable Yes
Output Voltage 240 V DC
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Physical Characteristics
Product Color Black
Form Factor Modular
Form Factor Rack/Tower/Stack
Rack Height 19U
Height 37.1"
Width 19.1"
Depth 30.5"
Weight (Approximate) 207 lb
Miscellaneous
Package Contents
  • BCT6L9N225 Battery Cabinet
  • Mounting Hardware
Additional Information
  • Battery Module Capacity Maximum: 12
  • Boost Charge Voltage: 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode
  • Boost Charge Voltage (Selectable): 2.3 - 2.45 VDC/Cell
  • Charger Voltage Tolerance: ≤1% Float
  • End of Discharging Voltage 0.15C discharge current: 1.75 VDC/Cell
  • End of Discharging Voltage 0.15C discharge current (Selectable): 1.65 - 1.8 VDC/Cell
  • End of Discharging Voltage 0.6C discharge current: 1.65 VDC/Cell
  • End of Discharging Voltage 0.6C discharge current (Selectable): 1.6 - 1.75 VDC/Cell
  • Float Charge Voltage: 2.25 VDC/Cell
  • Float Charge Voltage (Selectable): 2.2 - 2.35 VDC/Cell
  • Hot Swappable Battery Module: Yes - Qualified Personnel Only
  • Recharge Power: Default 10% x Power
  • Recharge Power (Selectable): 1 % - 20 %
  • Ripple Current: ≤5% C10
  • Ripple Voltage: ≤1% VDC Float
  • Temperature Compensation (Per Cell): -3 mV/°C
  • Temperature Compensation (Selectable): 0 - 5 mV/°C
  • Material of Construction: Metal
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Operating Elevation Note: At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C
  • Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C
  • Storage Relative Humidity: 0 - 95% (non-condensing)
  • Storage Temperature: 5 - 104 °F (-15 - 40 °C)
Certifications & Standards Safety: cTUVus
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
