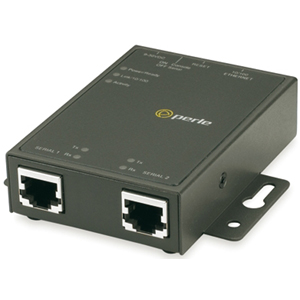

For serial to Ethernet connectivity applications, the IOLAN TS2 is the most advanced series of device servers available. Delivering high performance in a compact size, an IOLAN TS2 offers flexibility and next generation IP technology making it ideal for applications that require remote device/console management, data capture or monitoring.
Main Specification
| General Information | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 04030644 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Line | IOLAN |
| Product Model | TS2 |
| Product Name | IOLAN TS2 RJ45 2-Port Termnal Server EIA-232 10/100 |
| Product Type | Device Server |
| Processor & Chipset | |
| Processor Speed | 66 MHz |
| Memory | |
| Standard Memory | 32 MB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Power Description | |
| Input Voltage | 30 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.9" |
| Width | 2.5" |
| Depth | 3.5" |
| Weight (Approximate) | 12.80 oz |
| Miscellaneous | |
| Package Contents | CD, Quick Start Guide, RJ-45 TO DB9M Adapter, |
| Certifications & Standards | FCC Part 15A, CE, CAN/CSA 22.2, UL 60950, EN 55022 Class A, EN 55024 Class A |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
| Additional Warranty Information | The Perle IOLAN TS2 is backed by the best service and support in the industry including Perle's unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality. |
| Mechanical | |
| Dimensions: WxHxD (mm) | 91 x 89 x 24 |
| Mounting | Din Rail Mount; Wall Mount |
| Enclosure | Metal |
| Interface | |
| Serial interface | RS232/RS422/RS485 |
| Serial interface number of ports | 2 |
| Serial Interface type of connector | DB9 |
| Network interface | 1 Port Ethernet RJ45 Connector |
| Network interface number of ports | 1 |
| Network interface type of connector | RJ45 |
| Power | |
| Power Input Type | - |
| Operating Supply Voltage | 9 to 30 VDC |
| Power Consumption | 1.7W |
| Reliability | |
| Operating Temperature | 0 to 55C |
| Isolation Protection | - |
| Surge Protection | - |
| Standards and Certifications | Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024 |
| Product Type: | Device Server |
| Flow Control: | Hardware Flow Control |
| Functions: | An IOLAN TS2 is ideal for connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort V5 re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network. |
| Interfaces/Ports: | 2 x RJ-45 |
| Management: | Web browser or secure web browser via https(SSL/TLS ), Perle DeviceManager software to managesingle or multiple device servers,CLI -Telnet, SSH, shared console portSNMP, MIB II, Perle MIB, read and writeCapabilities, |
| Protocols: | |
| Security Features: | Local database |
| Processor: | MPC852T Motorola 66MHz |
| Standard Memory: | 32MB RAM |
| Maximum Memory: | 8MB Flash Memory |
| Status Indicators: | Power/ReadyLink status/Lan SpeedNetwork Link activitySerial : Tx and Rx data |
| Input Voltage: | 9 V DC to 30 V DC |
| Temperature: | 32 °F (0.0 °C) Up to 131 °F (55.0 °C) |
| Package Contents: | CD,Quick Start Guide, RJ-45 TO DB9M Adapter, |
| Certifications & Standards: | FCC Part 15A, CE, CAN/CSA 22.2, UL60950, EN 55022 Class A, EN 55024 Class A |
| Color: | Black |
| Dimensions: | 0.9" Height x 2.5" Width x 3.5" Depth |
| Shipping Dimensions : | 2.75" Height x 6.5" Width x 10.0" Depth |
| Standard Warranty: | Lifetime |
| Additional Warranty Information: | The Perle IOLAN TS2 is backed by the best service and support in the industryincluding Perle's unique lifetime warranty. Since 1976 Perle has been providing itscustomers with networking products that have the highest levels of performance,flexibility and quality. |
