SYBA

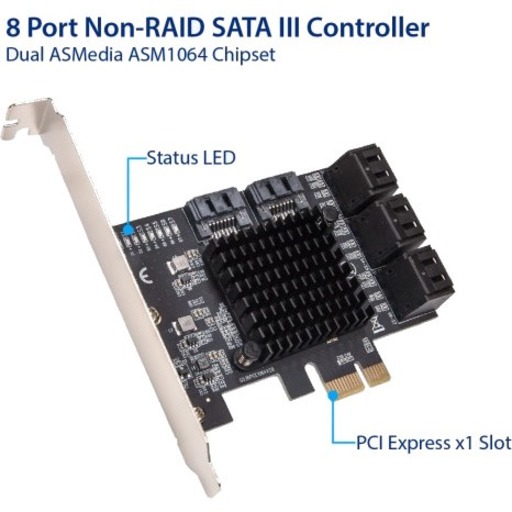

SYBA SI-PEX40165 8 PORT SATA III TO PCIE 3.0 X1 DUAL ASM1064 LOW PROFILE BRACKET
Mfg Part Number: SI-PEX40165 , Item #: 4473066
Image may not reflect the actual item.
Price: $109.12
+ Free Shipping
Quantity:
More to Come
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.
Supports 8 port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
ASM1064, a SATA host controller(AHCI) with upstream PCIe Gen3 x1 and downstream four SATA Gen3 ports. It's a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, ASM1064 can enable users to build up various high speed IO systems, including server, high capacity system storage or surveillance platforms.
Main Specification
| General Information | |
| Manufacturer | SYBA Multimedia, Inc |
| Manufacturer Part Number | SI-PEX40165 |
| Manufacturer Website Address | http://www.syba.com |
| Brand Name | SYBA Multimedia |
| Product Name | 8 Port SATA III to PCIe 3.0 x1 Non-RAID Expansion Card SI-PEX40165 |
| Packaged Quantity | 1 |
| Product Type | SATA Controller |
| Technical Information | |
| Host Interface | PCI Express 3.0 x1 |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Operating System Supported | Windows 10 |
| Operating System Supported | Linux |
| Operating System Supported | Mac OS |
| Interfaces/Ports | |
| Total Number of SATA Ports | 8 |
| Number of SATA Ports (Internal) | 8 |
| Physical Characteristics | |
| Height | 4.8" |
| Length | 6" |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
