Planar
Planar 998-2548-00 34 PZN3410Q CURVED 2K WQHD DOCKING LED LCD USB TYPE-C
Mfg Part Number: 998-2548-00 , Item #: 4471624
, PO and Wire.

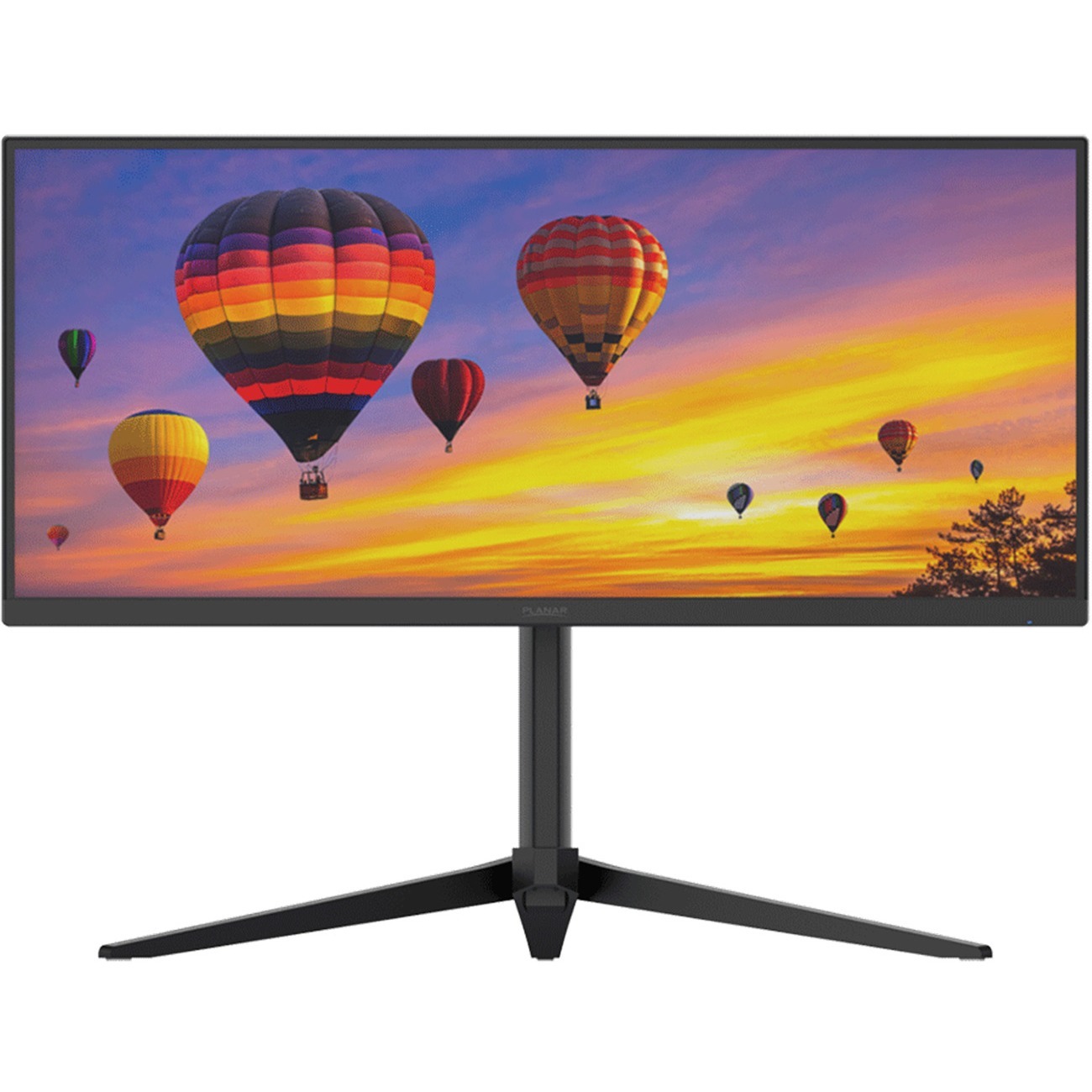

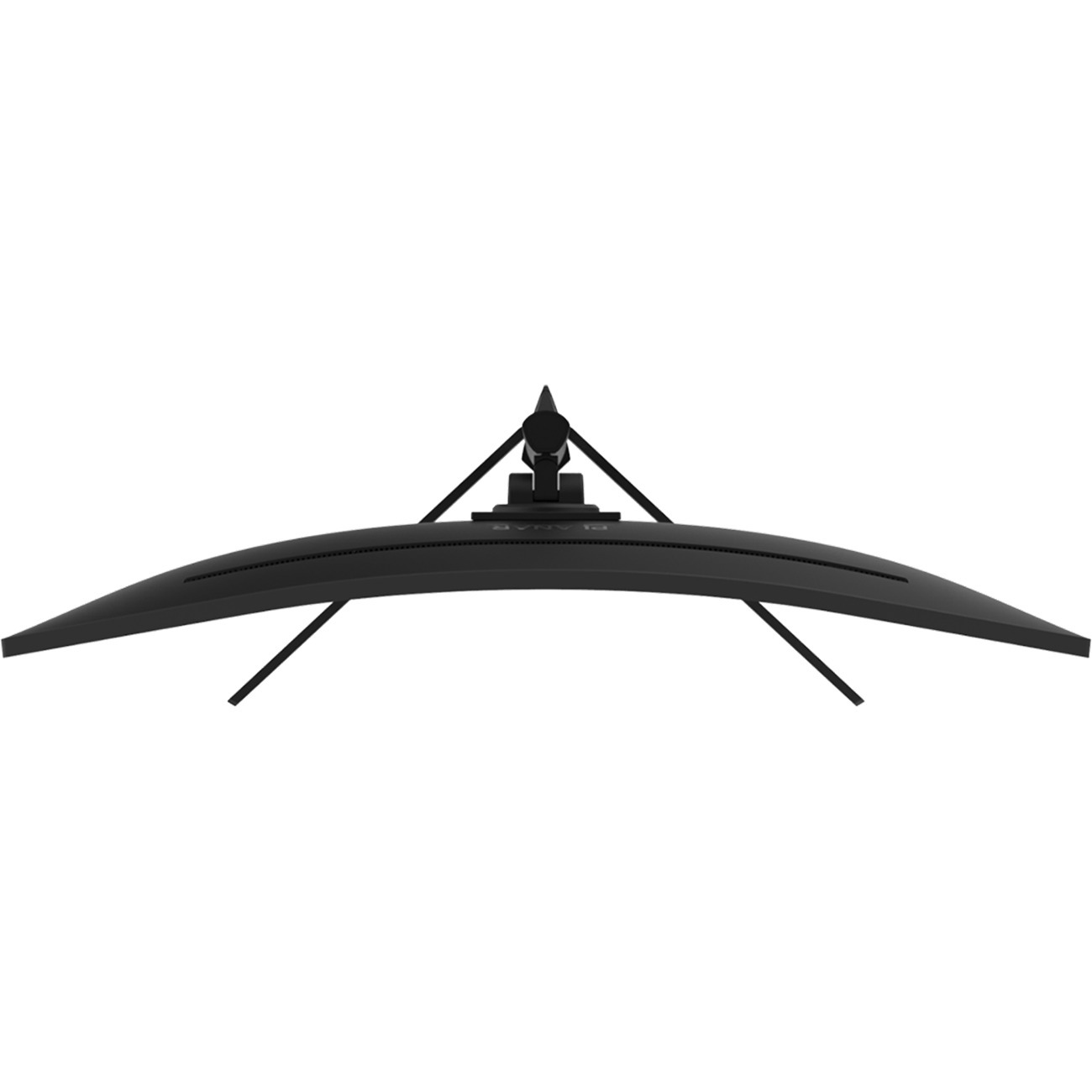

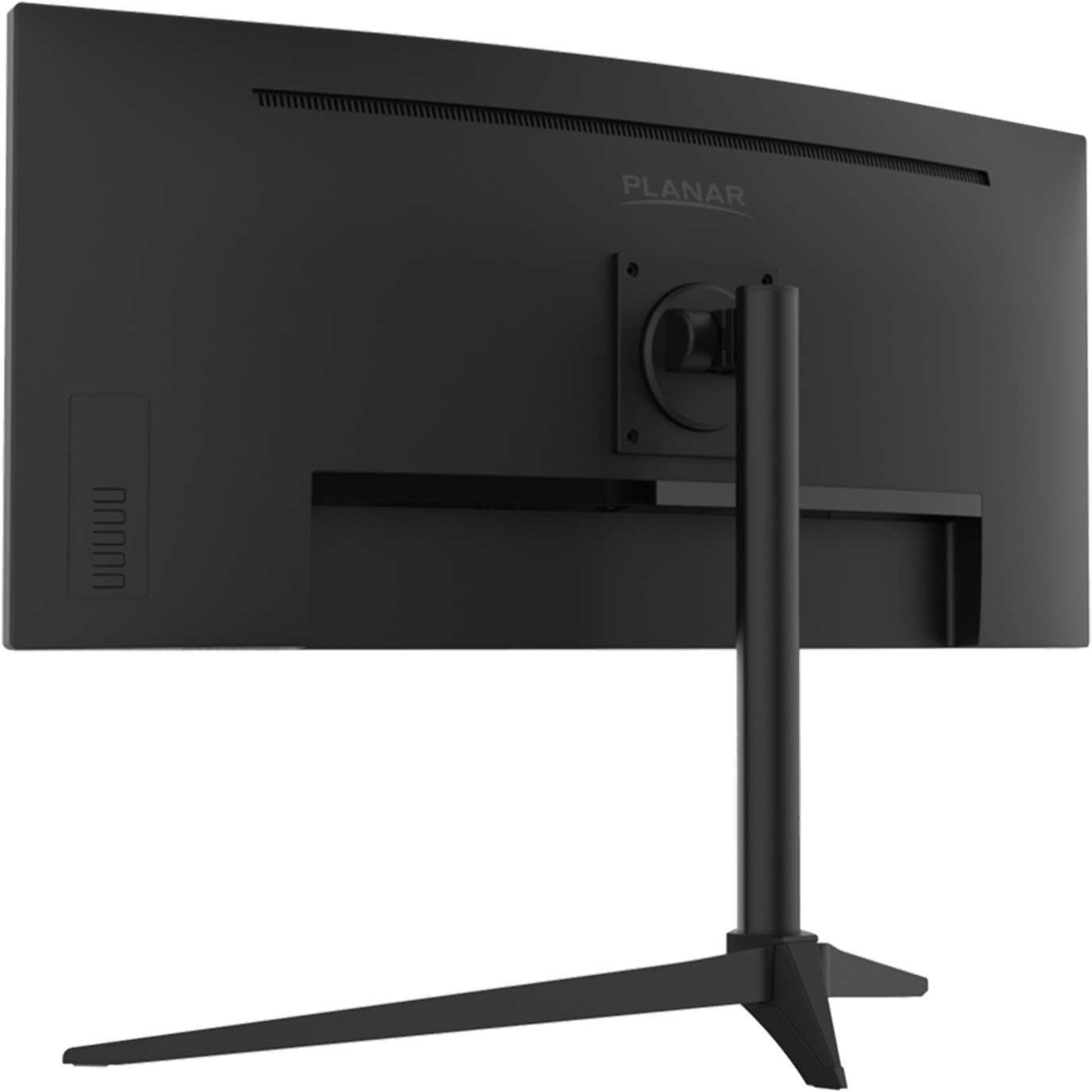

The Planar® PZN3410Q is a 34" ultrawide, curved docking monitor with convenient USB Type-C connectivity and an integrated docking station that provides a simple way to connect a PC/laptop. A built in KVM switch can share keyboard, mouse and display to the PC. The USB-C cable provides audio, video, data, network connectivity via the gigabit Ethernet port and up to 65 watts of power. The ergonomic stand lets it fit nicely in education, home, office or healthcare applications.
- 34" Quad HD resolution (3440x1440) LCD monitor
- 21:9 aspect ratio,1500R curve with tilt and swivel
- Built-in USB hub and TrueMedia™ speakers
- USB Type-C, DisplayPort, HDMI inputs
Customer First Warranty
For the ultimate protection of Planar's monitor, the Planar® CustomerFirst™ 3-Year Warranty includes free 2-day advance replacement for products located within the 48 contiguous United States and is available on all Planar LCD desktop and touch screen monitors.
Mounts & More
A variety of adjustable and easy-to-use accessories are available to suit nearly every application, whether you need a dual or triple monitor table stand, or a wall mount.
| General Information | |
| Manufacturer | Leyard |
| Manufacturer Part Number | 998-2548-00 |
| Manufacturer Website Address | http://www.planar.com |
| Brand Name | Planar |
| Product Line | Ultrawide |
| Product Model | PZN3410Q |
| Product Name | PZN3410Q 34" Ultrawide Curved Docking Monitor |
| Product Type | LCD Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 34" |
| Viewable Screen Size | 34" |
| Screen Mode | WQHD |
| Panel Technology | Vertical Alignment (VA) |
| Response Time | 5 ms |
| Response Time Details | 5ms GTG |
| Aspect Ratio | 21:9 |
| Pixel Pitch | 9.1 mil |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| HDCP Supported | Yes |
| Features | Low Blue Light |
| Features | Cable Lock Slot |
| Features | Anti-glare |
| Features | Wide Viewing Angle |
| Features | Security Lock |
| Features | Multi Language Display |
| Features | Flicker-free |
| Features | On-screen Display (OSD) |
| Stand Adjustments | Height |
| Stand Adjustments | Tilt |
| Stand Adjustments | Swivel |
| Curved Screen | Yes |
| Video | |
| Maximum Resolution | 3440 x 1440 |
| Standard Refresh Rate | 100 Hz |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 4,000:1 |
| Brightness | 300 Nit |
| Audio | |
| Number of Speakers | 2 |
| Speakers | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Number of USB Ports | 4 |
| Number of USB 3.2 Downstream Ports | 3 |
| Total Number of USB Type-C Ports | 1 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Built-in Devices | KVM Switch |
| Power Description | |
| Operating Power Consumption | 58 W |
| Standby Power Consumption | 500 mW |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 0.6" |
| Width | 1.2" |
| Depth | 0.2" |
| Height with Stand | 0.95" |
| Width with Stand | 1.25" |
| Depth with Stand | 0.58" |
| Weight (Approximate) | 14.60 lb |
| Weight with Stand (Approximate) | 18.10 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
