GIGABYTE

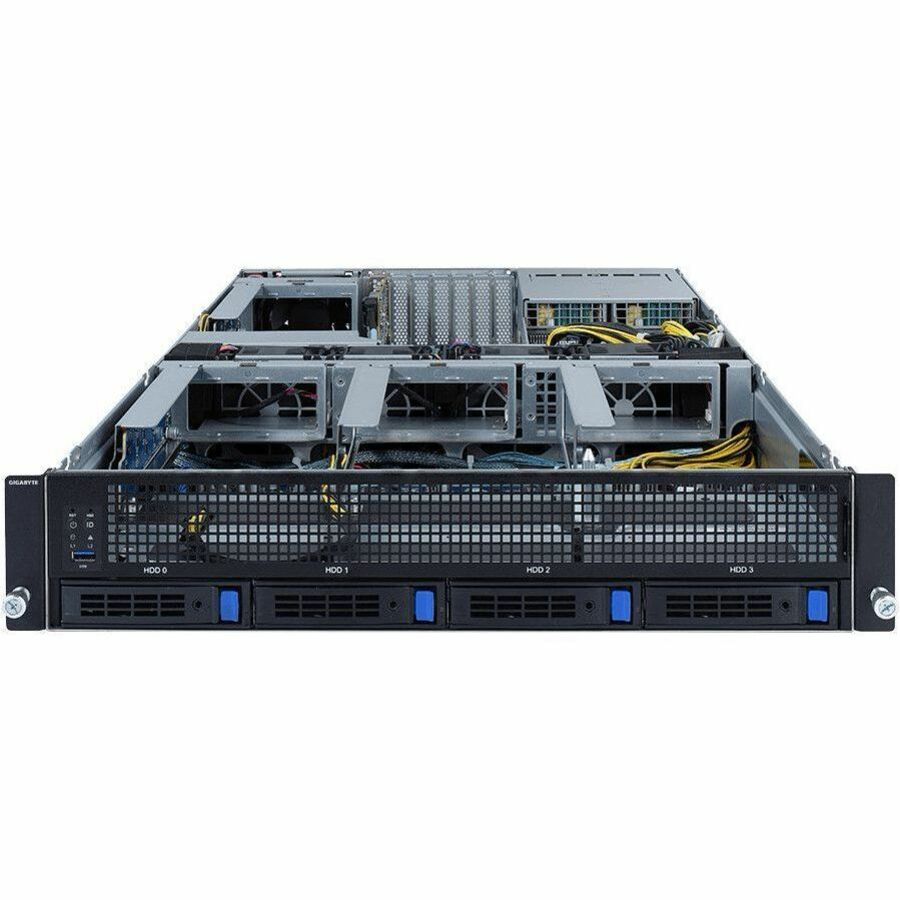

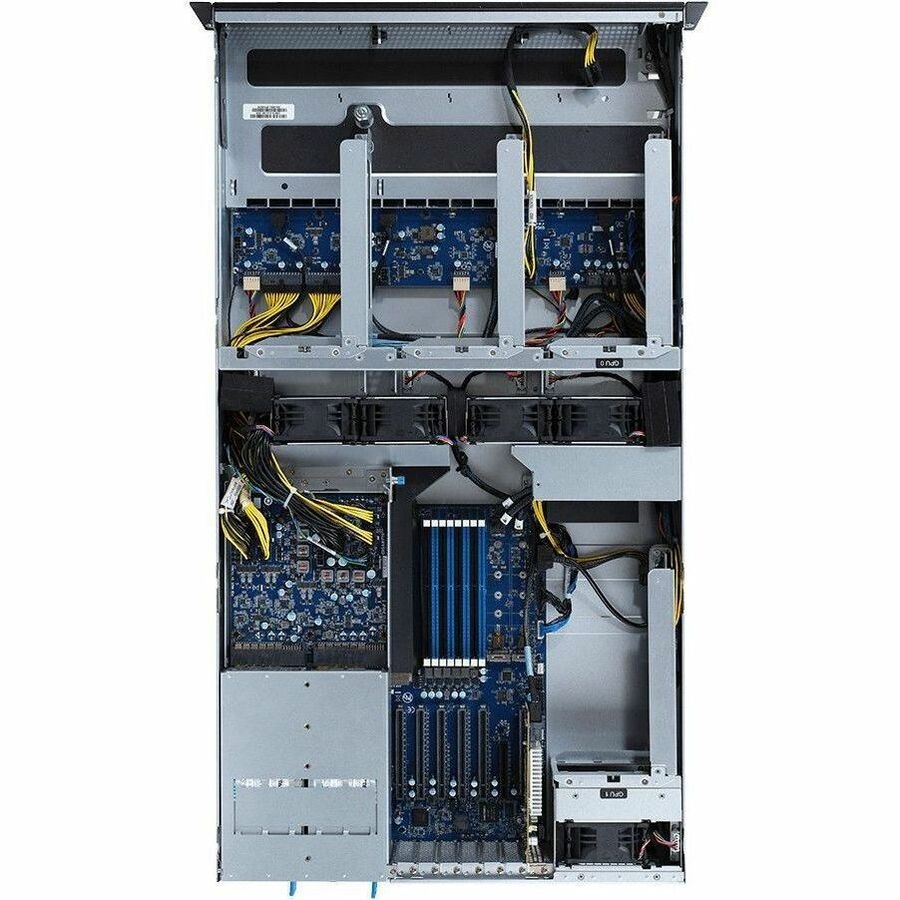

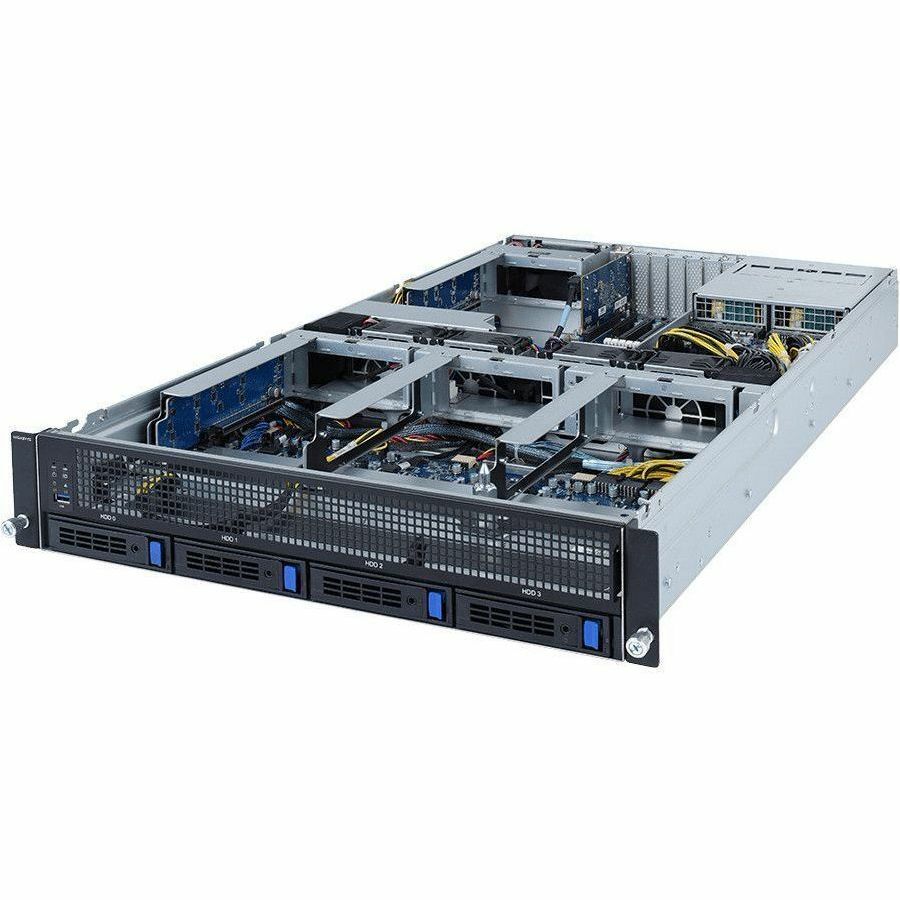

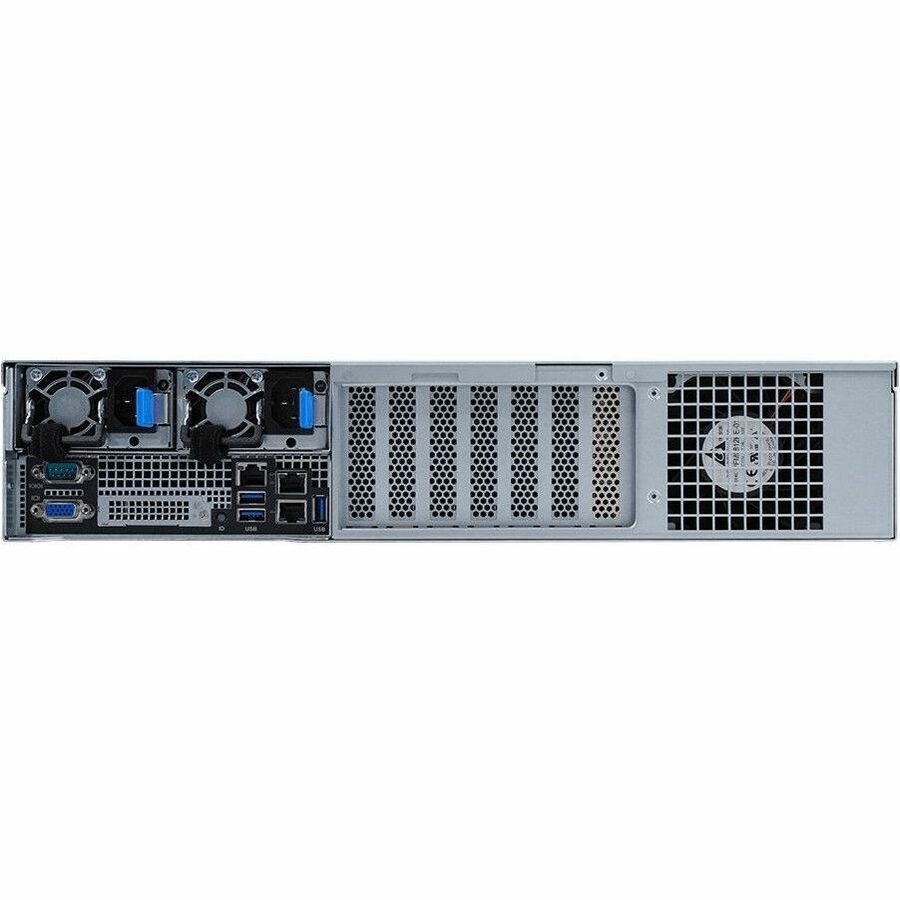

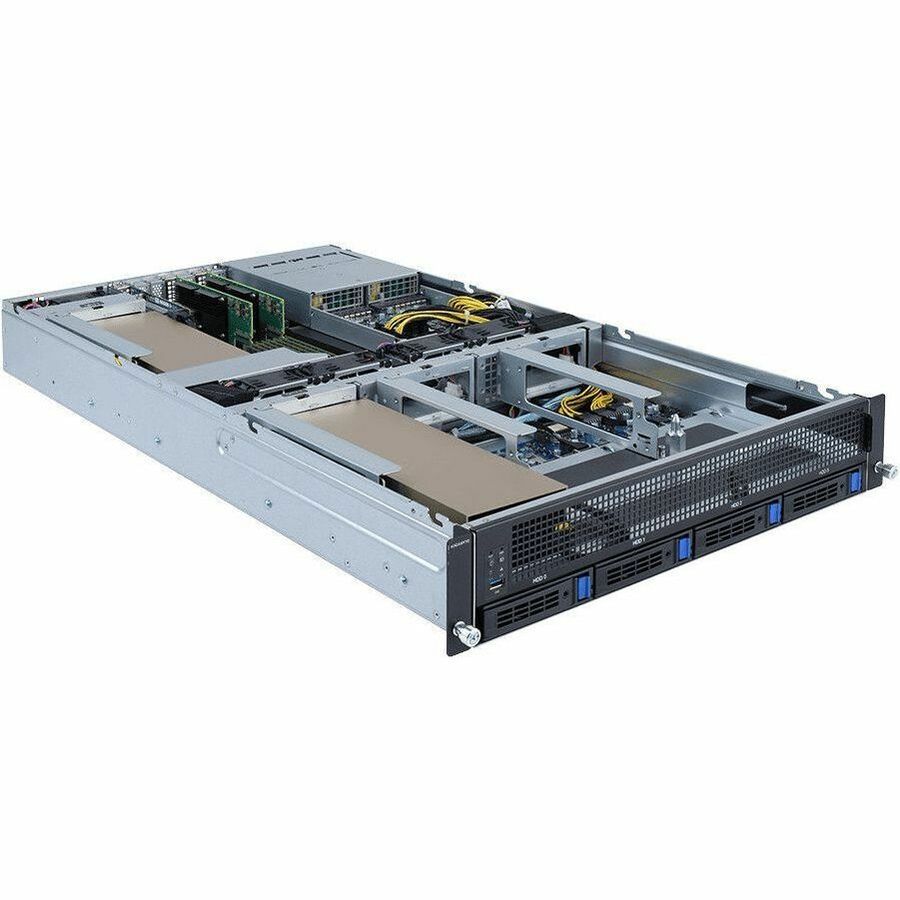

GIGABYTE G242-P32 AMPERE ALTRA 2U UP ARM SOLUTION 4 X 3.5 /2.5 SATA 4 X GPU
Mfg Part Number: G242-P32 , Item #: 4469973
Image may not reflect the actual item.
Price: $32,956.57
+ Free Shipping
Quantity:
More to Come
Last Updated: Jul 06, 2025
No Sales Tax except these states
, PO and Wire.
Ampere®Altra®Max Processor | Cloud Native Server Processors
Ampere's Altra®family of processors are designed to deliver on predictable performance, high scalability and power efficiency. Ampere's leadership on all these metrics deliver exceptional results and lower the TCO for Cloud Service Providers.
Main Specification
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | G242P32 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Model | G242-P32 |
| Product Name | G293-P32 (rev. 100) Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4926 |
| Processor Supported | Altra Max |
| Processor Supported | Altra |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Ampere |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Storage | |
| Supported Storage Drive Interfaces | SAS |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1E, 10E |
| Display & Graphics | |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 5 |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | CentOS 8.3 x64 |
| Operating System Supported | CentOS 8.4 x64 |
| Operating System Supported | Fedora Server 35 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 x64 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 x64 |
| Operating System Supported | CentOS 8.5 x64 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 x64 |
| Operating System Supported | Fedora Server 33 |
| Operating System Supported | Debian 11.1 |
| Operating System Supported | Debian 10.9 |
| Operating System Supported | Red Hat Enterprise Linux 8.5 x64 |
| Operating System Supported | Ubuntu 18.04.5 LTS x64 |
| Operating System Supported | Ubuntu 20.04.1 LTS x64 |
| Operating System Supported | Oracle Linux |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1600 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.2" |
| Depth | 32.3" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
