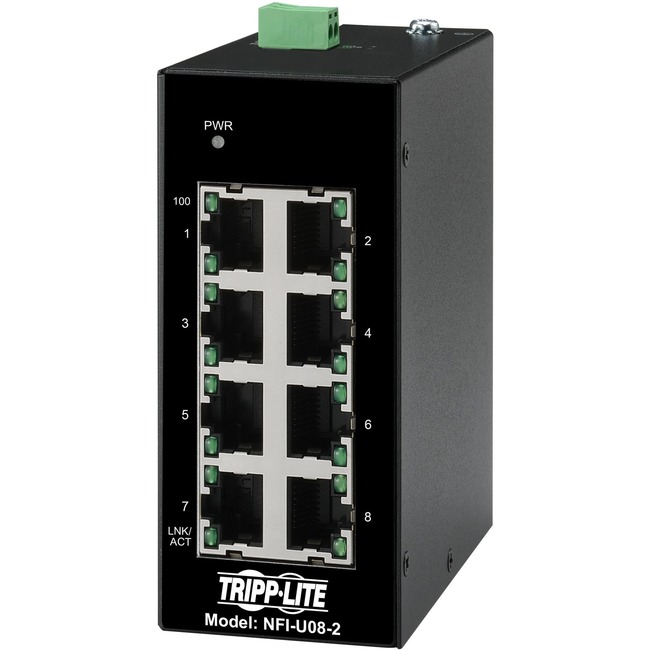

TRIPP LITE NFI-U08-2 8PT UNMGD ETH SWCH 10/100 MBPS DIN MOUNT

Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.

Features | 8-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U08-2 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U08-1 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12-48VDC terminal block supplies power input. Device power shall be supplied by 61010-2-201 R/C power with LPS (Limited Power Source).

TAA-Compliant for GSA Schedule Purchases
The NFI-U08-2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	NFI-U08-2
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	NFI-U08-2
Product Name	NFI-U08-2 Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Fast Ethernet Network
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-T
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3u
Management & Protocols
Manageable	No
Power Description
Power Consumption	3 W
Physical Characteristics
Product Material	Metal
Form Factor	DIN Rail Mountable
Height	3.9"
Width	2"
Depth	4.6"
Weight (Approximate)	15.52 oz
Miscellaneous
Package Contents	NFI-U08-2 Ethernet Switch DIN Rail-mounting Clip Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	3 Year
