INTEL
EXPX9501AFXSR INTEL 10GB XF SERVER ADAPTER SR DISC PROD SPCL SOURCING SEE NOTES
Mfg Part Number: EXPX9501AFXSR , Item #: 4463236
, PO and Wire.
10 Gigabit Ethernet has moved past the early adoption stage and is rapidly becoming mainstay for backbones within enterprise and service provider networks. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Based on the Intel 82598EB 10 Gigabit Ethernet controller, the next-generation Intel 10 Gigabit XF Server Adapters are designed to meet the throughput and latency requirements of bandwidth-hungry applications, while offering a very low power envelope for energy efficiency. Ideal for slot-constrained environments, the Intel 10 Gigabit XF Dual Port Server Adapter provides a simplified alternative to multiple 1 Gbps server adapters.
Intel 10 Gigabit - It just works!
| General Information | |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | EXPX9501AFXSR |
| Manufacturer Website Address | http://www.intel.com |
| Brand Name | Intel |
| Product Series | 82598EB |

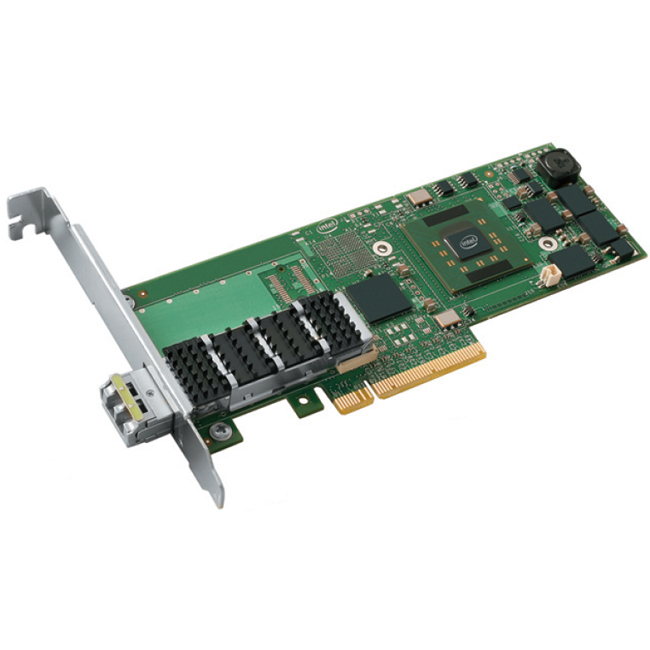

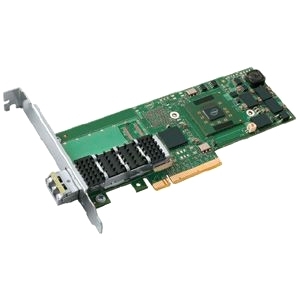

| Product Name | 10 Gigabit XF SR Server Adapter |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | 10Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express x8 |
| Total Number of Ports | 1 |
| Media & Performance | |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Network & Communication | |
| Network Technology | 10GBase-SR |
| Physical Characteristics | |
| Card Height | Low-profile |
| Card Height | Full-height |
| Form Factor | Plug-in Card |
| Height | 4.7" |
| Width | 6.6" |
| Thickness | 2.7" |
| Weight (Approximate) | 1 lb |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Country of Origin | Malaysia |
| Warranty | |
| Limited Warranty | Lifetime |
| Additional Warranty Information | Intel warrants to the original owner that the adapter product delivered in this package will be free from defects in material and workmanship. This warranty does not cover the adapter product if it is damaged in the process of being installed or improperly used. For more warranty information follow this link: http://www.intel.com/support/network/sb/cs-009721.htm |
