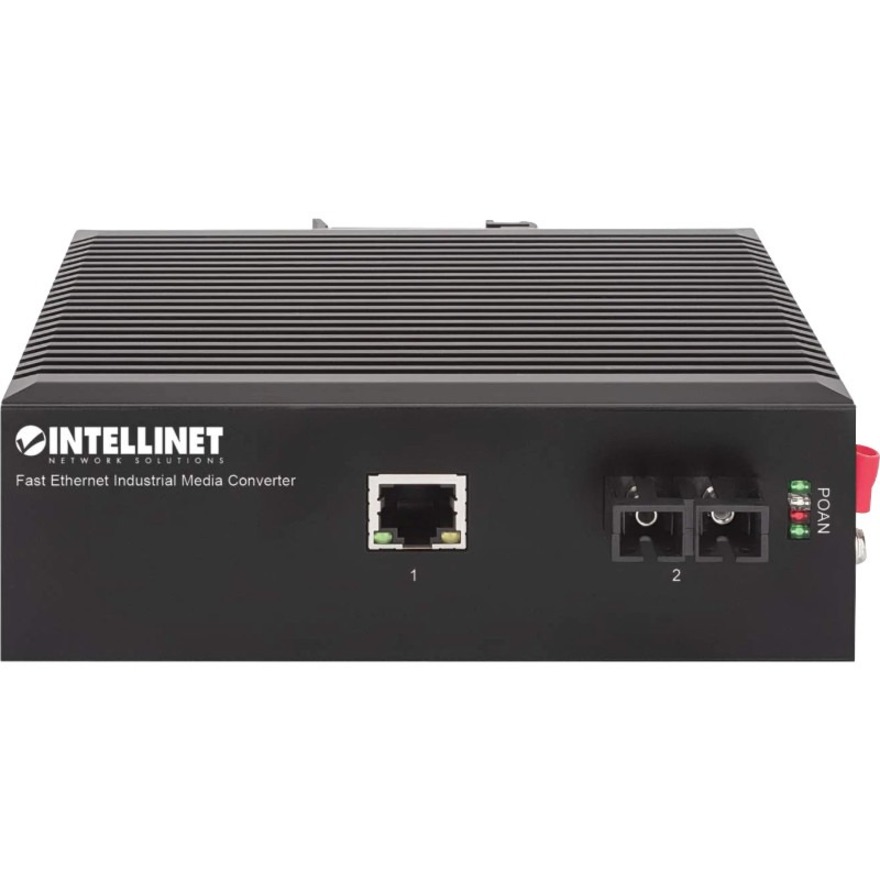

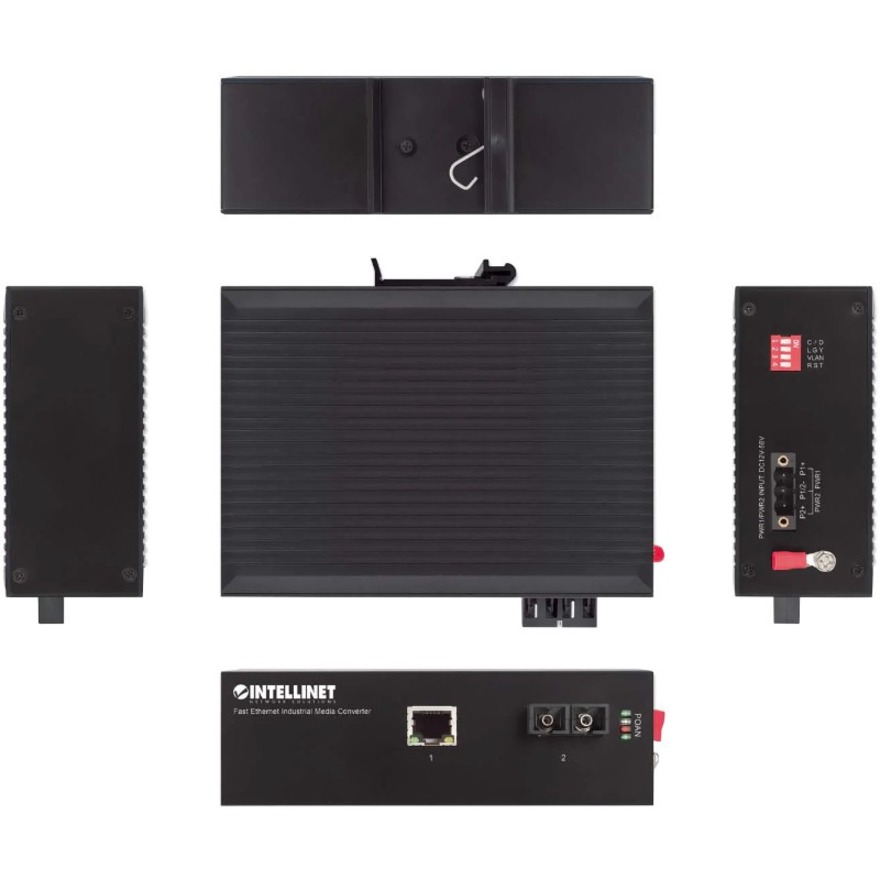

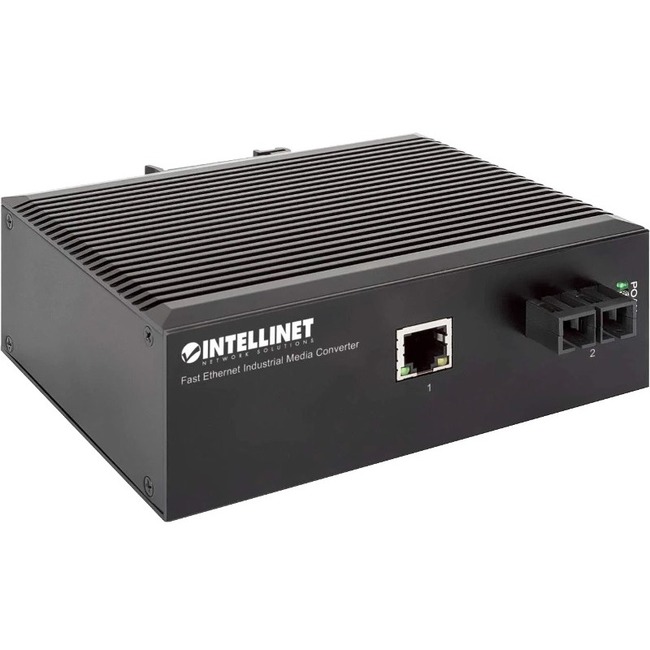

INTELLINET NETWORKING 508322 FAST ETHERNET INDUSTRIAL MEDIA CONVERTER
Mfg Part Number: 508322 , Item #: 4462106
Image may not reflect the actual item.
Price: $168.41
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 10, 2025
No Sales Tax except these states
, PO and Wire.
Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Equipped even for challenging environment conditions

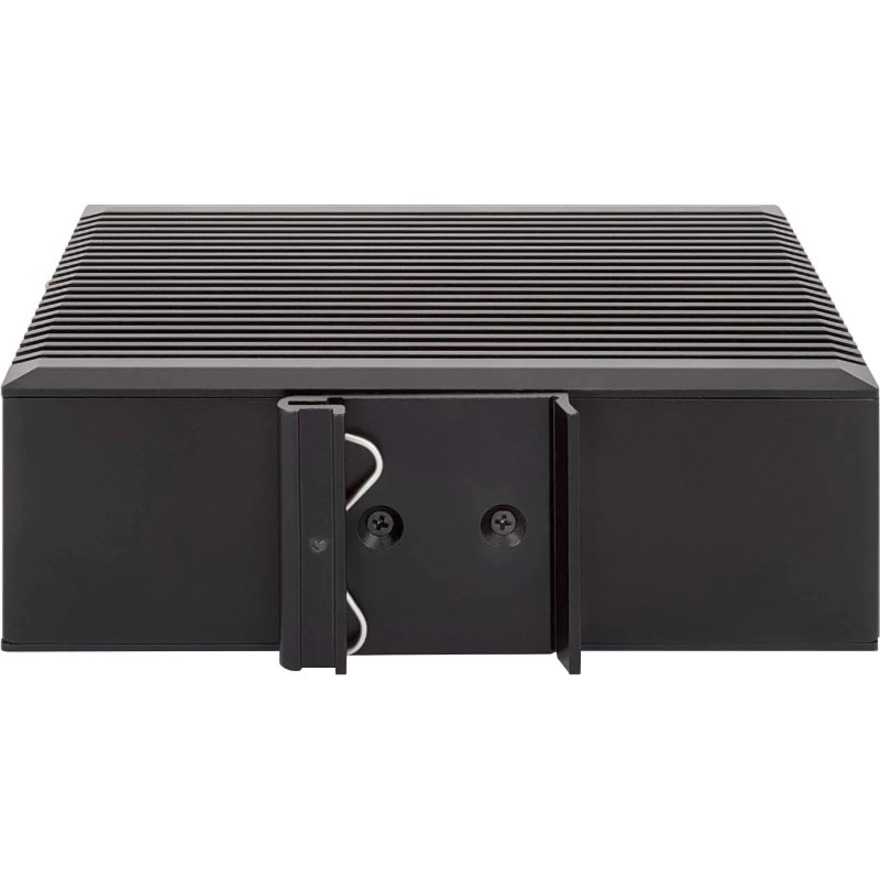

With its rugged, protective, IP40-rated metal housing, the converter operates reliably, even in extreme temperatures from -40 - 75? (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Equipped even for challenging environment conditions
With its rugged, protective, IP40-rated metal housing, the converter operates reliably, even in extreme temperatures from -40 - 75? (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.
Main Specification
| General Information | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 508322 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Intellinet |
| Product Name | Industrial Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 20 km |
| Fiber Optic Cable Core/Cladding Specification | 8.7/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 8/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 10/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 8.3/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-FX |
| Power Description | |
| Power Source | DC |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.9" |
| Width | 5.6" |
| Depth | 4.1" |
| Weight (Approximate) | 1.32 lb |
