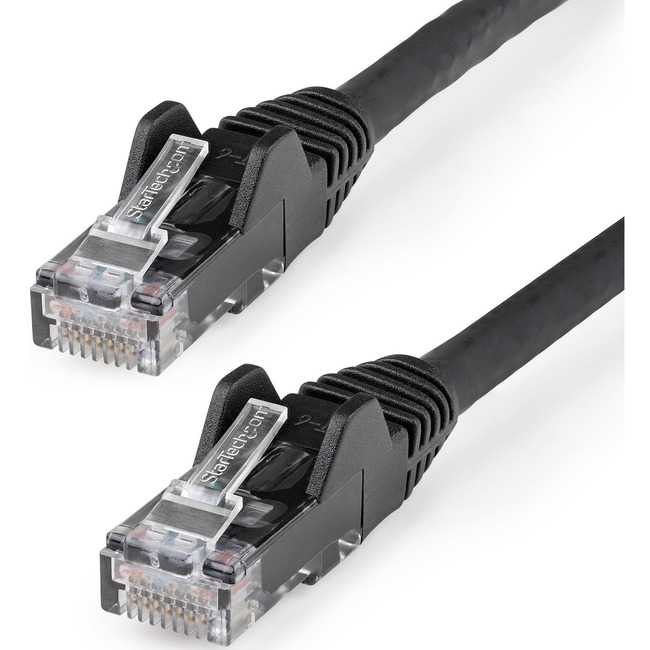

STARTECH N6LPATCH35BK 35FT CAT6 BLACK SNAGLESS UTP LSZH PATCH CORD ETHERNET CABLE

StarTech.com Advantage

StarTech.com products are designed for IT Professionals to meet their technical standards. Product quality, compatibility and reliability are ensured by our in-house and third-party labs and certifications by leading technology companies. StarTech.com's line of CAT6 cables use 100% copper and gold-plated pins. All of our Category 6 cable products undergo rigorous physical and electrical tests, including the repetitive bend cycle test. Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Beyond our own testing, we work with leading external test labs such as ETL, to obtain product performance and safety certifications. Backed by a risk-free StarTech.com lifetime warranty and 24 hour, five day-a-week, support from qualified Technical Advisors, our brand is trusted throughout the IT ecosystem and used by over 80% of Fortune 500 companies.

Product Overview

Low Smoke Zero Halogen (LSZH) Category 6 Snagless Network Patch Cable supports error-free Multi Gigabit connections: 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 160ft/55m). This PVC free high-performance cable offers reliable connectivity to all networking devices, such as Network Interface Cards (NIC), servers, routers, network attached storage (NAS), VoIP phones, PoE devices, etc.

This Eco-friendly LSZH CAT6 cable produces lower levels of toxic corrosive fumes and white smoke in the event of a fire, which offers higher visibility, allowing for a safer and faster evacuation.

StarTech.com offers the widest selection of lengths and colors, to keep your business network and workstations connected and organized.

High Performance CAT6 Ethernet Cable

• Reliably Connect Your Ethernet Devices

Error-free Multi Gigabit support - 1Gbps, 2.5Gbps, 5Gbps and 10Gbps (up to 55m), 10GBase-T

650MHz support for increased bandwidth

• 100% Copper Cable, Ideal for Powering Your Devices Over Ethernet

Made with 100% bare copper wire, StarTech.com cables are fully compliant with, unlike other cables that use copper clad aluminum (CCA) wire.

Tested up to 100W continuous power throughput.

Complies with IEEE 802.3bt Type 4 standard.

Excellent heat dissipation over prolonged use.

Supports high power PoE for Laptops, IP TVs, Security Cameras, VoIP phones, NAS devices, etc.

• Quality Construction

50-micron gold platted connectors

Snagless boot

40 mm (1.57") bend radius for strong molded strain relief and improved flexibility

The Snagless design protects the RJ45 clip and ensures the cables are easily pulled through constrained spaces such as conduits or raceways and prevents the cable from getting caught/damaged during installation.

Engineered for Professional Applications

• Detailed Spec Drawings Available

StarTech.com makes it easy for you to integrate the CAT6 cable into your network by providing detailed technical specifications and engineering drawings.

• Hassle-free Installation with Reliable Performance and Flexibility

6.0 mm (0.23") OD, Flexible PVC-Free jacket with 100 mm (3.93") bend radius

Flexible HD-PE insulation for reduced Intra-pair Crosstalk

Spline separator for reduced Inter-pair Crosstalk and improved heat dissipation for 100W PoE

24AWG (0.25mm2), 100% copper, stranded wire twisted pairs

U/UTP cable construction

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	N6LPATCH35BK
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Cat.6 Patch Network Cable
Packaged Quantity	1 Each
Product Type	Network Cable
Technical Information
Cable Type	Category 6
Cable Characteristic	Patch Cable
Cable Length	35 ft
Connector Type on First End	RJ-45 Network - Male
Connector Gender on First End	Male
Connector on First End Details	1 x RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Connector Gender on Second End	Male
Connector on Second End Details	1 x RJ-45 Network - Male
Contact Plating	Gold
Shielding	No
Jacket Type	LSZH
Device Supported	Network Card
Device Supported	Notebook
Device Supported	Security Camera
Device Supported	Server
Device Supported	IPTV
Device Supported	Network Device
Device Supported	NAS
Device Supported	Workstation
Device Supported	VoIP Device
Device Supported	Router
Device Supported	PoE-enabled Device
American Wire Gauge	24 AWG
Data Transfer Rate	10 Gbit/s
Boot Type	Snagless
Features	PoE
Features	Fray Resistant
Features	PVC Free
Features	Crosstalk Protection
Features	Near End Cross Talk (NEXT)
Features	Molded
Features	Bendable
Features	Strain Relief
Features	Flexible
Features	Damage Resistant
Features	Stranded
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Copper
Product Material	Copper Clad Aluminum
Insulation Material	High-density Polyethylene (HDPE)
Weight (Approximate)	0.87 lb
Shipping Height	1.60"
Shipping Width	13"
Shipping Weight (Approximate)	14.24 oz
Miscellaneous
Country of Origin	China
Warranty
Limited Warranty	Lifetime
