BASIC OPERATION GUIDE

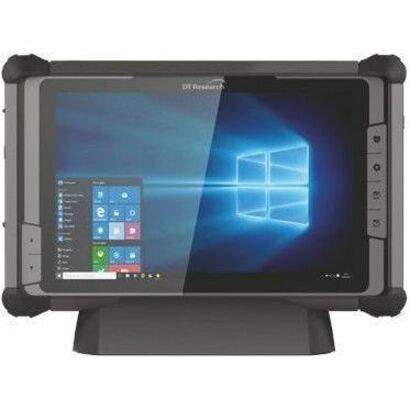

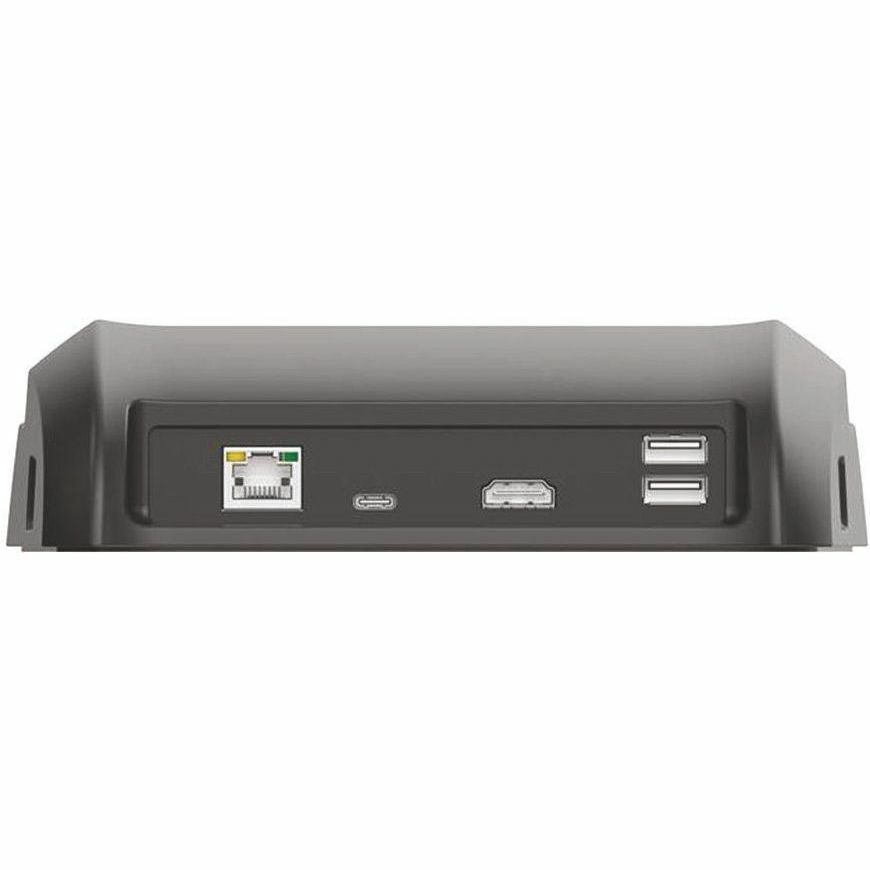

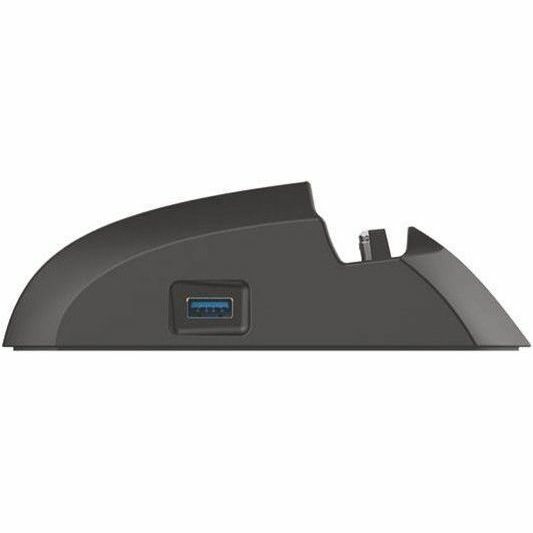

Thank you for purchasing the Desktop Charging Cradle (ACC-DC282-01) by DT Research, available for charging one (1) Rugged Tablet. The Desktop Charging Cradle features one (1) USB Type-C port (as power input), one (1) LAN port, one (1) HDMI-output port, and four (4) USB ports.
| General Information | |
| Manufacturer | DT Research, Inc |
| Manufacturer Part Number | ACC-DC282-01 |
| Manufacturer Website Address | http://www.dtresearch.com |
| Brand Name | DT Research |
| Product Model | ACC-DC282-01 |
| Product Name | Desktop Charging Cradle |
| Product Type | Cradle |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Tablet PC |
| Number Of Devices Charged Simultaneously | 1 |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| Power Source | AC Adapter |
| AC Plug | Yes |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.9" |
| Width | 7.1" |
| Depth | 6.1" |
| Weight (Approximate) | 1.39 lb |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | DT Research DT382GL Rugged Tablet |
