VANTEC

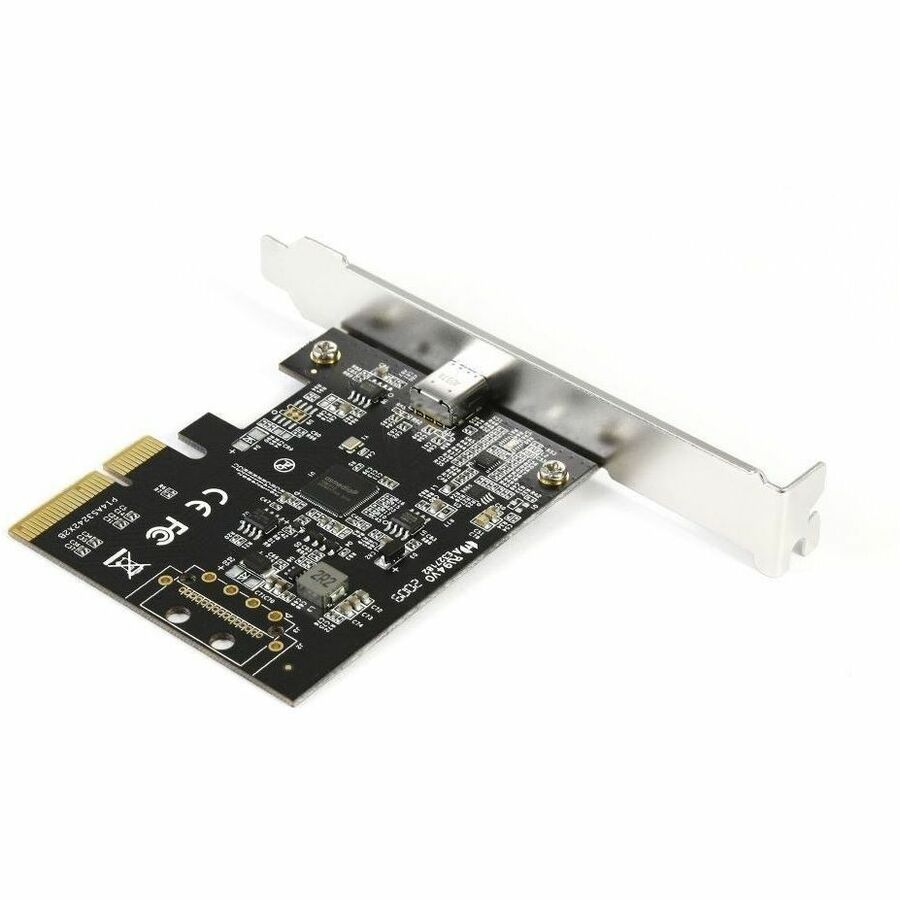

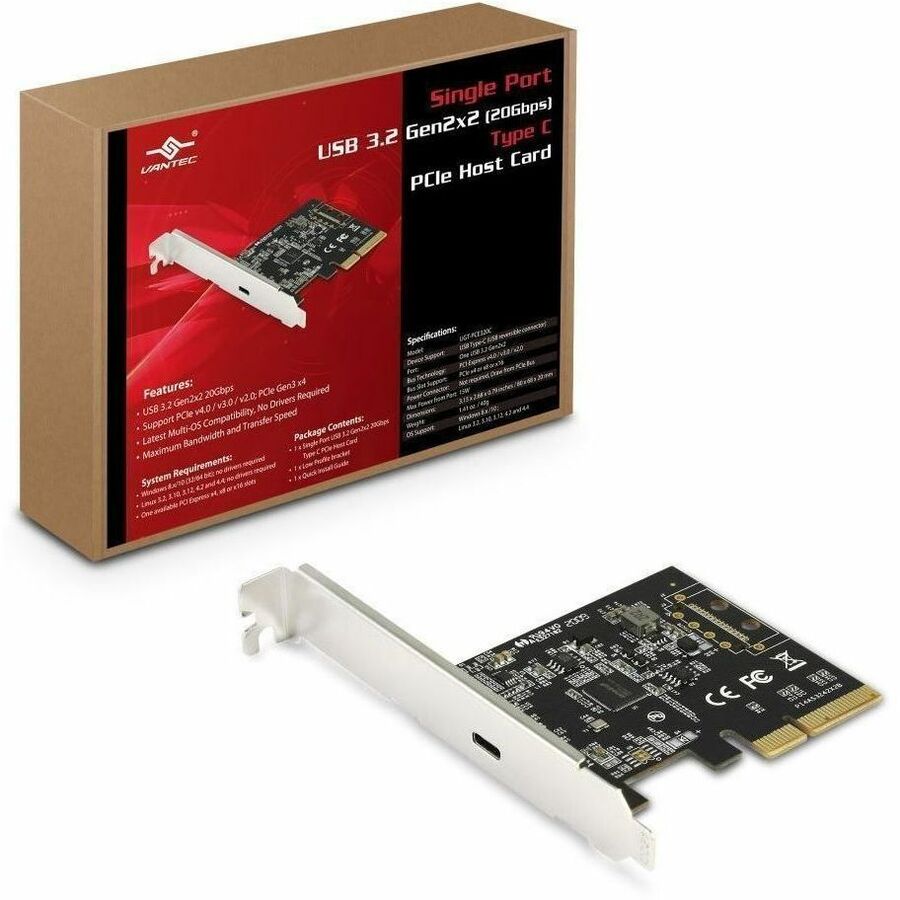

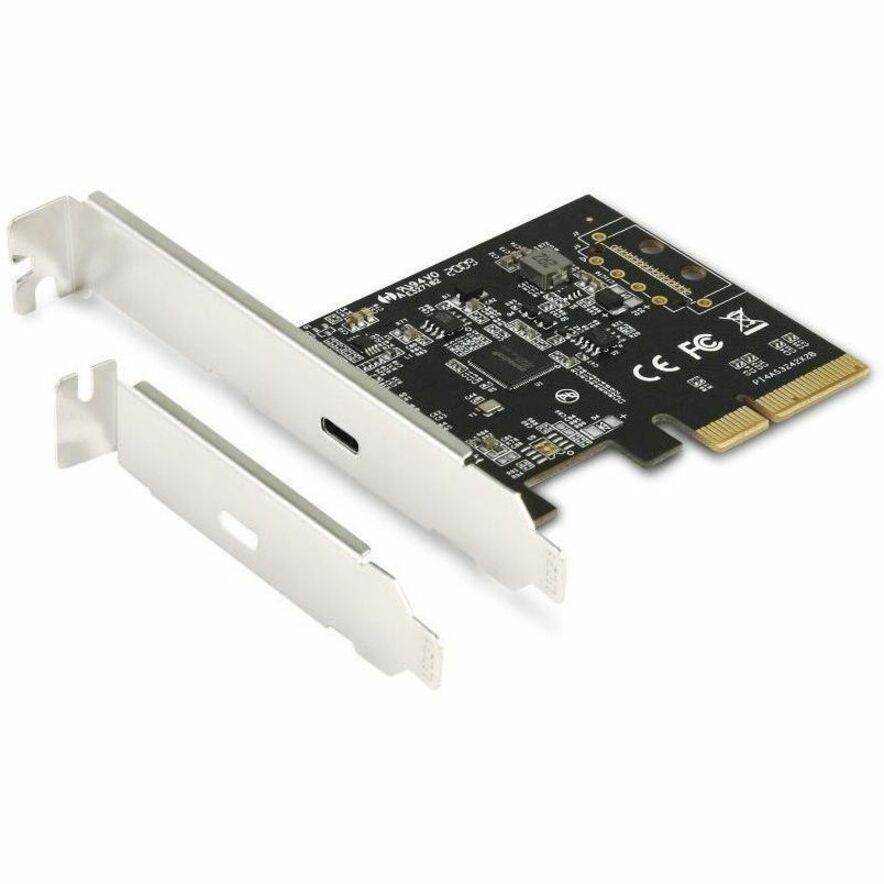

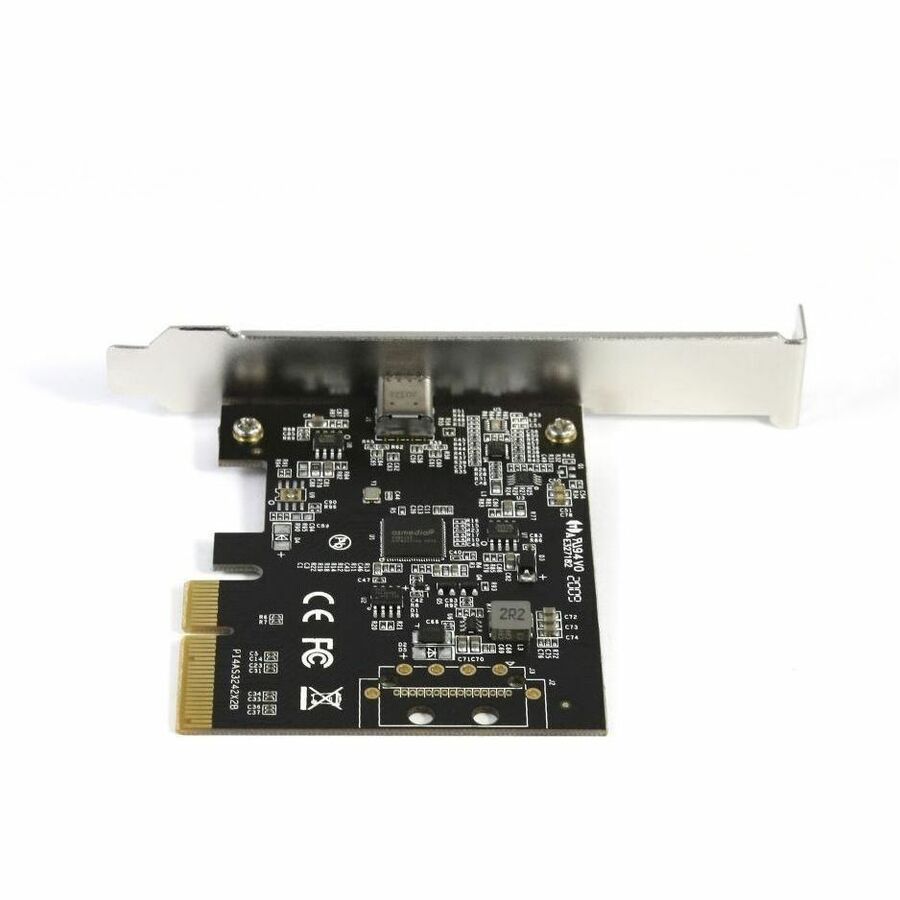

Vantec CC UGT-PCE320C Single Port USB3.2 Gen2x2 20Gbps Type C PCIe Host Card
Mfg Part Number: UGT-PCE320C , Item #: 4447594
Image may not reflect the actual item.
Price: $51.57
+ Free Shipping
Quantity:
In Stock: 3
Last Updated: May 05, 2025
No Sales Tax except these states
, PO and Wire.
The Vantec Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card is design to offer the fastest USB 3.2 performance possible. This single port unique design allows for maximum bandwidth from the 4 lanes of the PCIe slot to the connected USB storage device. This one controller can handles data transfer at a theoretical speed of 20Gbps. This translates in to superfast file transfer and work done. Most USB port are only offering 10Gbps but this is double the speed with many others features like Latest Multi-OS compatibility, No drivers required, No Power Plug required, Plug & Ready, Standard & Low profile bracket, legacy compatibility and more.
Main Specification
| General Information | |
| Manufacturer | Vantec Thermal Technologies |
| Manufacturer Part Number | UGT-PCE320C |
| Manufacturer Website Address | http://www.vantecusa.com |
| Brand Name | Vantec |
| Product Model | UGT-PCE320C |
| Product Name | Single Port USB 3.2 Gen2x2 20Gbps Type C PCIe Host Card |
| Packaged Quantity | 1 |
| Product Type | USB Adapter |
| Technical Information | |
| Host Interface | USB 3.2 (Gen 2) Type C |
| Media & Performance | |
| Data Transfer Rate | 640 MB/s |
| Data Transfer Rate | 2.50 GB/s |
| Data Transfer Rate | 1.25 GB/s |
| Interfaces/Ports | |
| USB Version | 3.2 Gen 2 |
| Total Number of USB Ports | 1 |
| USB Connector Type | Type-C |
| Software | |
| Operating System Supported | Linux 3.12 |
| Operating System Supported | Linux 3.10 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Linux 3.2 |
| Operating System Supported | Windows 8 64-bit |
| Operating System Supported | Linux 4.4 |
| Operating System Supported | Linux 4.2 |
| Operating System Supported | Windows 11 x64 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 10 (64-bit) |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 0.8" |
| Width | 2.7" |
| Length | 3.1" |
| Weight (Approximate) | 1.41 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Flash Drive |
| Application/Usage | Hard Drive |
| Platform Supported | PC |
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
