Eaton

SR45UBND EATON TRIPP LITE SERIES 45U SMARTRACK PREMIUM ENCLOSURE (INCLUDES SIDE PANELS BU

Mfg Part Number:  SR45UBND

Special Note: Jun 14, 2021
NCNR; If you do not have loading facility, please contact our CST for special handling service.

Image may not reflect the actual item.
Price: $1,358.71
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 18, 2025
No Sales Tax except these states
, PO and Wire.

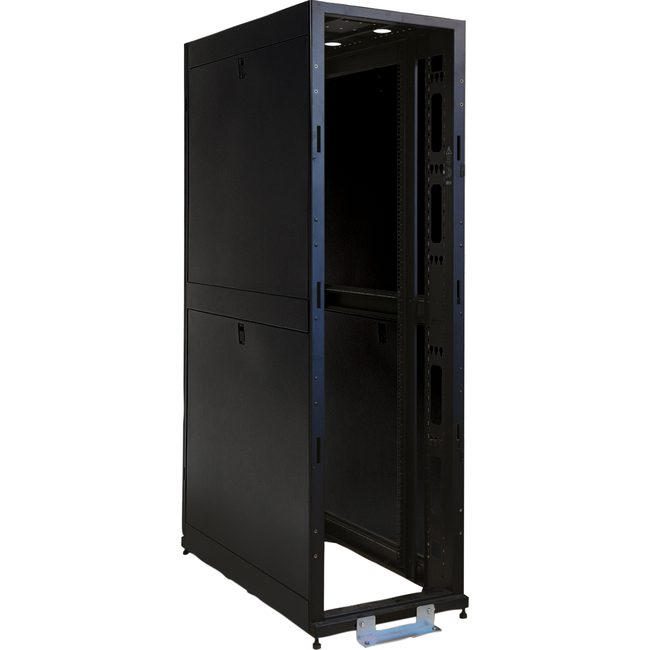

The SR45UBND ships fully assembled with side panels but no doors. It houses 3000 lbs of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 45 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

The top panel of the SR45UBND is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UBND is open-bottom.

All components of the SR45UBND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR45UBND comes with pre-installed casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR45UBND comes with a 5-year product warranty. As part of the SmartRack family, the SR45UBND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number SR45UBND
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Line SmartRack
Product Model SR45UBND
Product Name 45U SmartRack Premium Enclosure (Includes Side Panels But No Doors)
Product Type Rack Cabinet
Physical Characteristics
Color Family Black
Product Color Black
Units Per Pallet 1
Dynamic/Rolling Weight Capacity 2250 lb
Static/Stationary Weight Capacity 3000 lb
Height 83.8"
Width 23.6"
Depth 43"
Weight (Approximate) 229.28 lb
Rack Height 45U
Rack Width 19"
Miscellaneous
Package Contents
  • 45U SmartRack Premium Enclosure (Includes Side Panels But No Doors)
  • Mounting Hardware
  • stabilizing Bracket
  • 4 x Side Panels
  • 50 x M6 Screws
  • 50 x M6 Cage Nuts
  • 50 x M6 Washers
  • Owner's Manual
Additional Information
  • EIA-310-E Certification
  • UL60950 Approval
  • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements
  • Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure)
  • Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements
  • Maximum usable internal depth of 37 inches/94 cm (front to rear rail)
  • Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles
  • Casters are pre-installed and support a rolling load capacity of 2250 lbs, allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable
  • Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable
  • Compact design allows the enclosure to roll through standard height commercial doorways
  • Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground
  • Open bottom for cable access
  • 4 Interior vertical posts with unthreaded square hole openings
  • Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
product information
