Eaton
N820-04M-OM4 EATON TRIPP LITE SERIES 10GB/40GB/100GB DUPLEX MULTIMODE 50/125 OM4 LSZH FIBER P
Mfg Part Number: N820-04M-OM4 , Item #: 4432946
, PO and Wire.
Support Higher Bandwidths in Data Networks with OM4 Multimode 50/125 Fiber Patch Cable
As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support higher bandwidths. This LC-to-LC multimode fiber optic Ethernet cable is well-suited for future-proofing 40/100 Gb Ethernet applications up to 300 meters (984 feet) at 850 nm.
Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution
The N820-04M-OM4 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) and LED lasers to offer a cost-effective, high-bandwidth solution over extended distances in the 850 nm wavelength range. It is commonly used in LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.
Experience Reliable Performance with Premium Construction

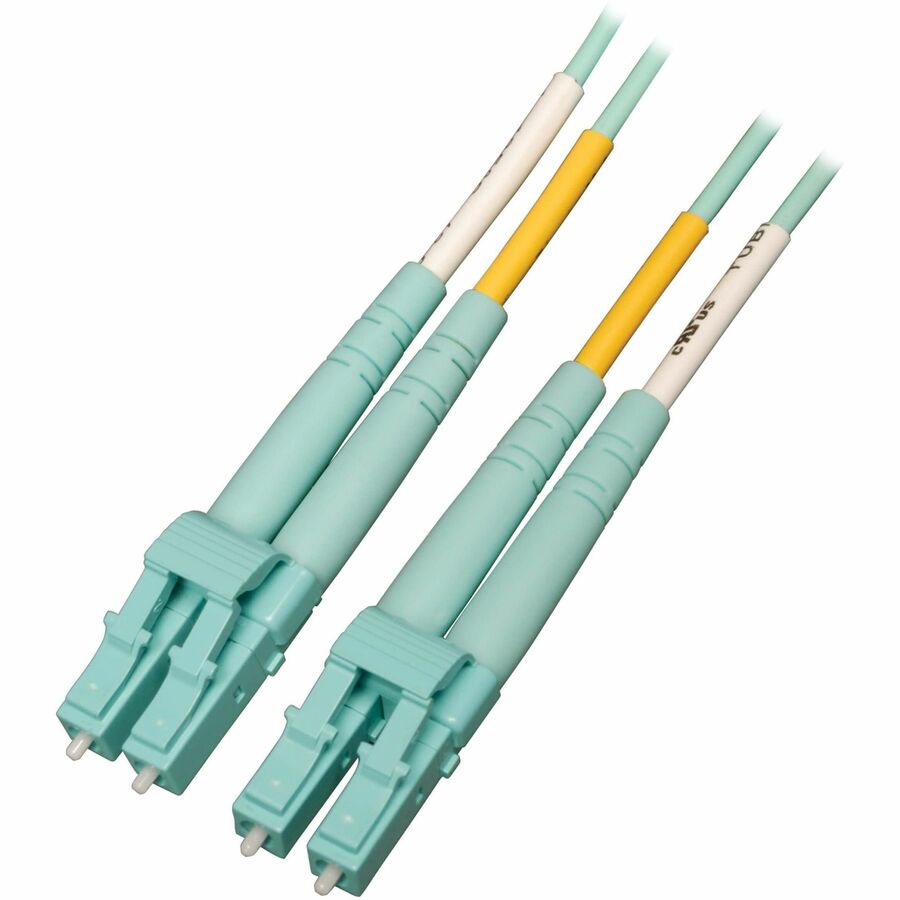

Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The N820-04M-OM4 has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The aqua color of the jacket identifies the cable as OM4 rated. It meets current IEEE 802.3ae and TIA LOMMF standards, and is compatible with existing OM3- and OM4-rated 50/125 fiber solutions.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N820-04M-OM4 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | N820-04M-OM4 |
| Product Name | N820-04M-OM4 Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM4 |
| Fiber Count | 2 |
| Cable Length | 13.12 ft |
| Connector Type on First End | LC Network |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Jacket Type | OFNR |
| Device Supported | Network Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Polished Connector (PC) |
| Features | Laser-optimized |
| Physical Characteristics | |
| Jacket Color | Aqua |
| Connector Color | Aqua |
| Height | 9" |
| Width | 7" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
