BIXOLON
BIXOLON XT5-40NRS RFID USB USBHOST ENET SERIAL 14IPS THRML TXFER 25 114MM
Mfg Part Number: XT5-40NRS , Item #: 4429491
Image may not reflect the actual item.
Price: $2,791.75
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 07, 2025
No Sales Tax except these states
, PO and Wire.

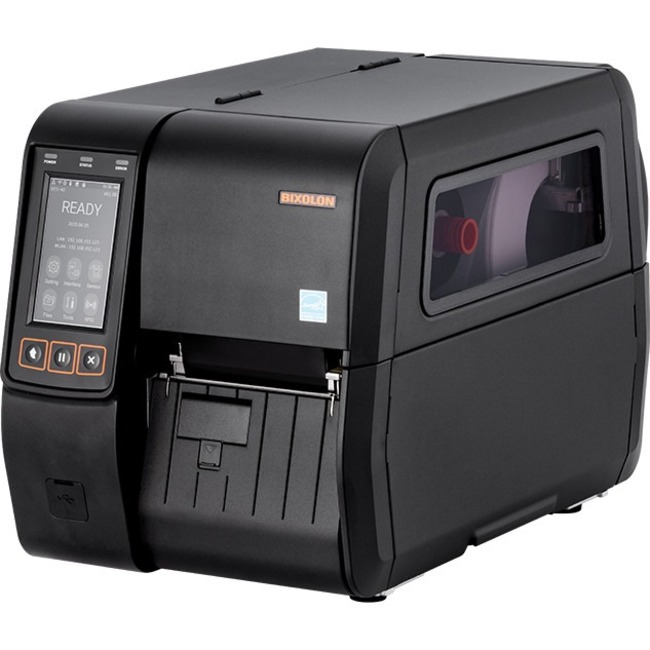

The XT5-40NR supports UHF RFID print and encode capability with a 4.3-inch full-colour touch display which enhances visibility and tracking performance. An intuitive menu and simple calibration functions to reduce setup and operational time. By minimising spacing RFID inlay, it reduces media waste and prolongs the media replacement cycle.
Main Specification
| General Information | |
| Manufacturer | Bixolon America, Inc |
| Manufacturer Part Number | XT5-40NRS |
| Manufacturer Website Address | http://www.bixolon.com |
| Brand Name | Bixolon |
| Product Series | XT5-40 |
| Product Model | XT5-40NR |
| Product Name | 4-inch Thermal Transfer Industrial RFID Label Printer |
| Product Type | Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 14 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 13.12 ft |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | UPC/EAN |
| Barcode Symbology Supported | UPC-E |
| Barcode Symbology Supported | Data Matrix |
| Barcode Symbology Supported | TLC 39 |
| Barcode Symbology Supported | Interleaved 2 of 5 |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | Aztec Code |
| Barcode Symbology Supported | Maxi Code |
| Barcode Symbology Supported | Code 11 |
| Barcode Symbology Supported | Standard 2 of 5 |
| Barcode Symbology Supported | Codablock |
| Barcode Symbology Supported | Code 128 |
| Barcode Symbology Supported | LOGMARS |
| Barcode Symbology Supported | Micro PDF-417 |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | Industrial 2 of 5 |
| Barcode Symbology Supported | GS1 DataBar (RSS-14) |
| Barcode Symbology Supported | MSI |
| Barcode Symbology Supported | Plessey |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | IMB |
| Barcode Symbology Supported | Code 49 |
| Barcode Symbology Supported | QR Code |
| Barcode Symbology Supported | Code 93 |
| Barcode Symbology Supported | PDF417 |
| Real Time Clock | Yes |
| Application/Usage | Desktop |
| Features | LCD Display |
| Features | Auto-calibration |
| Features | RFID Encoder |
| Optional Connectivity | Wireless LAN |
| Optional Connectivity | Parallel |
| Optional Connectivity | Bluetooth |
| Fonts Included | Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Fonts Included | Two BPL-D |
| Fonts Included | 9 BPL-D |
| Fonts Included | 10 SLCS |
| Fonts Included | One SLCS |
| Fonts Included | 23 Code Page |
| Fonts Included | 16 BPL-Z |
| Fonts Included | One BPL-Z |
| Fonts Included | 5 BPL-E |
| Print Technology | Thermal Transfer |
| Memory | |
| Standard Memory | 512 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB Host | Yes |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Gigabit Ethernet |
| RFID | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 4.3" |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Fanfold |
| Media Type | Label |
| Media Type | Gap |
| Media Type | Black Mark |
| Media Type | Notch |
| Media Type | Continuous Label |
| Media Sensor | Reflective Media Sensor |
| Media Sensor | Transmissive Media Sensor |
| Maximum Roll Diameter | 7.99" |
| Maximum Label Width | 4.49" |
| Fonts & Emulation | |
| Language Emulation | BPL-Z |
| Language Emulation | BPL-D |
| Language Emulation | BPL-E |
| Language Emulation | SLCS |
| Power Description | |
| Power Source | AC Supply |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Environmental Conditions | |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 10% - 80% |
| Storage Temperature | 68°F (20°C) - 140°F (60°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 12.8" |
| Width | 10.6" |
| Depth | 19.3" |
| Weight (Approximate) | 30.82 lb |
| Miscellaneous | |
| Power Cable Localization | US |
| Platform Supported | iOS |
| Platform Supported | PC |
| Platform Supported | Android |
| Energy Star | Yes |
