HANWHA TECHWIN

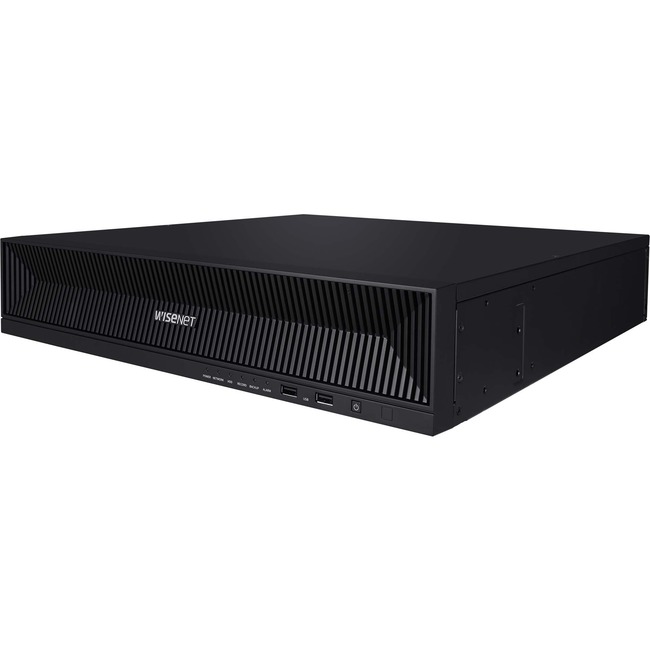

HANWHA TECHWIN XRN-1620SB1-16TB 8K NVR (INTEL BASED), 16TB RAW, 16 CHANNELS WITH 16 POE/POE+ PORTS (POE BUDGET 2
Mfg Part Number: XRN-1620SB1-16TB , Item #: 4426981
, PO and Wire.
Timeline preview and easy channel, event, alarm configuration
When managing multi channels, XRN-1620SB1/1620B2/820S greatly improves search efficiency by allowing users to preview images and videos by simply hovering mouse cursor on the timeline. Moreover, users can configure event and alarm for all channels within a single page.
Supports live monitoring and bookmarks
With the live monitoring feature, XRN-1620SB1/1620B2/820S allow users to view information by channel including real-time videos, system status, recording status and etc. and also offer easy and detailed monitoring with the digital PTZ control.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
Save cost and install easy NVR with integral PoE

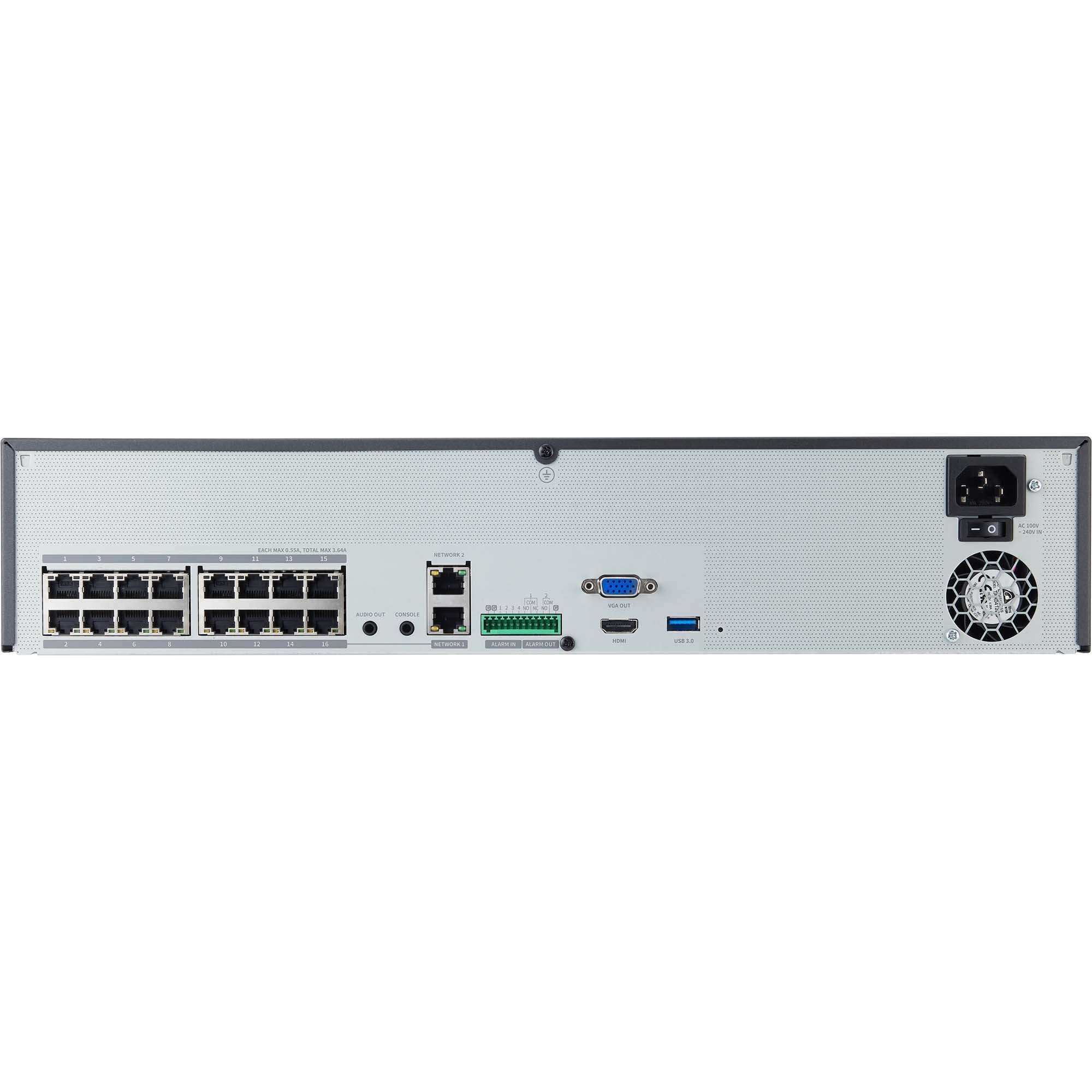

XRN-1620SB1/820S with built-in PoE switches further reduce cost and save installation time by supplying ample power to cameras directly and detecting products automatically upon integration.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XRN-1620SB1-16TB |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Model | XRN-1620SB1 |
| Product Name | XRN-1620SB1 Network Video Recorder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 16 TB |
| Video | |
| Video Formats | H.264 |
| Video Formats | Motion JPEG |
| Video Formats | H.265 |
| Maximum Resolution | 32MP |
| Maximum Frame Rate | 480 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 310 W |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 16.9" |
| Weight (Approximate) | 12.70 lb |
| Miscellaneous | |
| NDAA Compliant | Yes |
